Oblivion 24" Induction Flex Cooktop - JIC4724HB
Oblivion 24" Induction Flex Cooktop
Model: JIC4724HB
Oblivion 24" Induction Flex Cooktop
Model: JIC4724HB
Rebate AvailableColor : Floating Glass Black
Current Rebates
Key Features
Emotive Controls
Magnetic Induction
Bridge Function
Versatile Installation
Oblivion Glass Design
Documents
Available from Sorenson's Appliance & TV, serving customers throughout Minnesota.
Features
Emotive Controls
Striking, intuitive and inviting controls with clear, white LEDs unleash performance at your touch.
Magnetic Induction
Magnetism with a pulse. A surface that heats only the cookware for fierce, flexible power.
Bridge Function
Invoke the heat. Let it course through your cookware with two induction elements that fuse into one, a grand altar for cookware like griddles or braisers.
Versatile Installation
Install without limits. This JennAir® cooktop can be installed true flush or semi-flush at 3mm above any level countertop, including an island or peninsula.
Oblivion Glass Design
Sleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.
Specifications
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 3.55 ft³ |
| Dimensional Weight | 44.09 lbs. |
| Total of Cubes | 3.55 ft³ |
| Total of Dimensional Weight | 44.09 lbs. |
Dimensions & Weight
| Width | 26.5 in. |
| Height | 9.25 in. |
| Length | 25 in. |
| Weight | 41 lbs. |
| Carton Depth | 25 |
| Carton Height | 9 1/4 |
| Carton Width | 26 1/2 |
| Cutout Depth (in) | 20 7/16 |
| Cutout Width (in) | 23 |
| Gross Weight | 41 |
| Net Weight | 33.0 |
| Gross Weight | 41 |
| Cutout Depth Min(IN,inches) | 20.4375 |
| Cutout Depth(IN,inches) | 20.4375 |
| Cutout Width Min(IN,inches) | 23.0000 |
| Cutout Width(IN,inches) | 23.0000 |
| Depth(IN,inches) | 21.0000 |
| Net Weight(LB,pounds) | 33 |
| Carton Depth(IN,inches) | 25.0000 |
| Carton Height(IN,inches) | 9.2500 |
| Carton Width(IN,inches) | 26.5000 |
| Gross Weight(LB,pounds) | 41 |
| Cutout Depth | 20.438 |
| Cutout Depth Min | 20.438 |
| Cutout Width | 23 |
| Cutout Width Min | 23 |
| carton depth | 25 |
| carton height | 9.25 |
| carton width | 26.5 |
| gross weight | 41 |
| net weight | 33 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 26.5 in. |
| Shipping Height | 9.25 in. |
| Shipping Length | 30 in. |
| Shipping Weight | 81 lbs. |
| Total of Shipping Weight | 81 lbs. |
| Source | Calculation |
Details
| Fuel Type | Electric Induction |
| Digital Display | Yes |
| Cooktop Configuration | All Burners |
| Installation Configuration | True Flush |
| Installs Over Built-In Oven | Yes |
| LP Convertible | No |
| Power Outage Compatible | No |
| Design Expression | Oblivion Glass |
Cooktop Details
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Glass |
| Digital Display | Yes |
| Hot Surface Indicator Light | Yes |
| Heating Element On Indicator Light | Yes |
| Installs Over Built-In Oven | Yes |
| Combination Match with Oven | Jjw2424, Jjw2427, Jjw2430, Jjw3430, Jjw6024 |
| Griddle Included | N/a |
Controls
| Control Location | Front |
| Control Type | Electronic Tap Touch |
Element/Burner Details
| Automatic Pan Detection | Yes |
| Cooktop Type | Traditional |
| Cooktop Element Style | Induction |
| Left Front Element-Burner Size | 8in. |
| Left Front Element-Burner Type | Bridge |
| Left Rear Element-Burner Size | 8in. |
| Left Rear Element-Burner Type | Bridge |
| Number of Cooking Element-Burners | 4 |
| Power Boost | Yes |
| Right Front Element-Burner Size | 8in. |
| Right Front Element-Burner Type | Bridge |
| Right Rear Element-Burner Size | 8in. |
| Right Rear Element-Burner Type | Bridge |
| Left Front Element-Burner Power | 3,700w |
| Left Rear Element-Burner Power | 3,700w |
| Right Front Element-Burner Power | 3,700w |
| Right Rear Element-Burner Power | 3,700w |
Ventilation Details
| Downdraft Vent | No |
| Ventilation Type | Updraft |
Smart Compatibility
| Connectivity | No |
| Works With | No |
Electrical
| 208V Compatible | Yes |
| Amps | 40 |
| Hz | 60 |
| Power Cord Included | Yes |
| Volts | 240 |
| Watts | 7 |

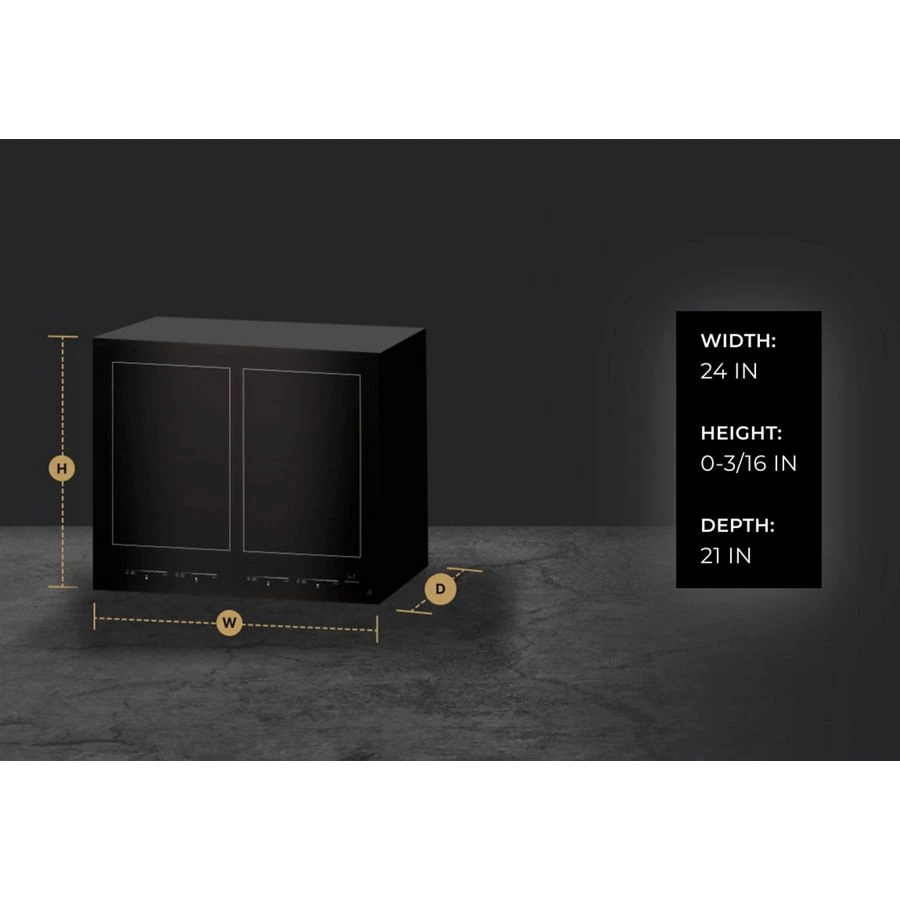

Dimensions
| Common Size | 24 In |
| Cutout Width | 23 In |
| Depth | 21 In |
| Gross Weight | 41 Lbs |
| Net Weight | 33 Lbs |
| Width | 24 In |
| Cutout Depth | 20.438 In |
| Cutout Depth Min | 20.438 In |
| Height | 0.1875 In |
Certifications
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
