Euro-Style 30" Dual-Fuel Downdraft Range - JDS1750FS
This product has been discontinued by the manufacture and is no longer available.

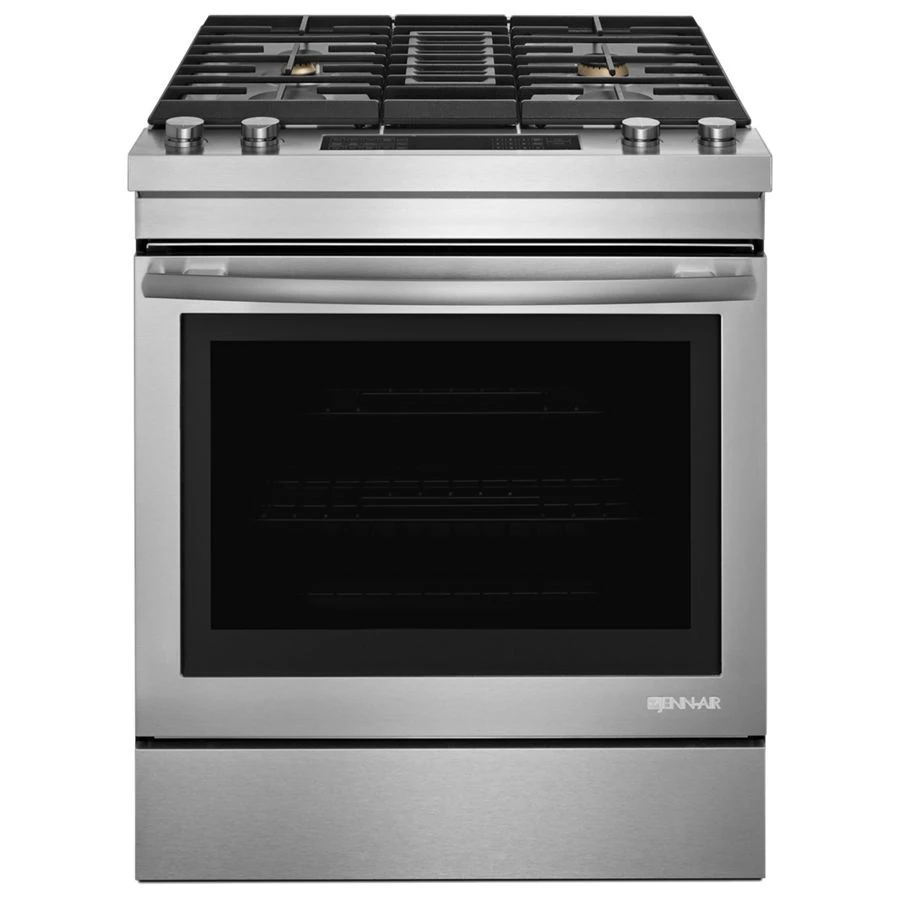

Euro-Style 30" Dual-Fuel Downdraft Range
Model: JDS1750FS
This product has been discontinued by the manufacture and is no longer available.
Euro-Style 30" Dual-Fuel Downdraft Range
Model: JDS1750FS
Rebate AvailableColor : Stainless Steel
Current Rebates
JennAir Curate: 1H Up to 15% Instant Savings
Expires: June 30, 2026
Available from Sorenson's Appliance & TV, serving customers throughout Minnesota.
Specifications
Certifications
Certifications
Prop 65
Specifications
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Other
| Capacity | 6-2/5 |
| Capacity | 6-2/5 |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 17.62 ft³ |
| Dimensional Weight | 219.07 lbs. |
| Total of Cubes | 17.62 ft³ |
| Total of Dimensional Weight | 219.07 lbs. |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 36 in. |
| Length | 28.31 in. |
| Weight | - |
| Net Weight | 220 lbs |
| Depth Closed Including Handles | 28.875 |
| carton depth | 30.5 |
| carton height | 43.5 |
| carton width | 31.5 |
| gross weight | 258 |
| net weight | 220 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 41 in. |
| Shipping Length | 33.31 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Certifications
| ADA Compliant | ADA Height and Operation Compliant |
| Energy Rating (kWh/year) | 393 |
| UL | Yes |
| prop65 | Standard |
Controls
| Display Color | Red; White |
Cooktop Details
| Cooktop Control Location | Front |
| Cooktop Control Type | Knobs |
| Cooktop Surface Material | Stainless Steel |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
Details
| Automatic Convection Conversion Temperature Adjust | Yes |
| Fuel Type | Dual Fuel |
| Oven Configuration | Single Oven |
| Oven Light Switch Location | Oven Control |
| Oven Selections | DownDraft |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Configuration | Slide-In |
| Range Drawer Type | Access Panel |
| Range Type | Slide-in |
Dimensions
| Depth Closed Including Handles | 28.875 |
| carton depth | 30.5 |
| carton height | 43.5 |
| carton width | 31.5 |
| gross weight | 258 |
| net weight | 220 |
Electrical
| Power Cord Included | No |
Element/Burner Details
| Cooktop Element Style | Gas Burner |
| Left Front Element-Burner Power | 17, 000 BTU |
| Left Front Element-Burner Type | Burner |
| Left Rear Element-Burner Power | 5, 600 BTU |
| Left Rear Element-Burner Type | Burner |
| Number of Cooking Element-Burners | 4 |
| Right Front Element-Burner Power | 15, 000 BTU |
| Right Front Element-Burner Type | Burner |
| Right Rear Element-Burner Power | 9, 200 BTU |
| Right Rear Element-Burner Type | Burner |
Exterior Details
| Door Type | Metal & Glass |
| Oven Control Location | Front |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Extra Large |
Grate Details
| Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish |
| Number of Grates | 3 |
Oven Details
| Bake Element Power | 3, 600 W |
| Broiler Element Power | 4, 000 W |
| Broiler Location | Top of Oven |
| Convection Element Power | 3, 200 |
| Convection Element Type | Fan |
| Convection Functions | Bake; Broil; Roast |
| Hidden Bake Element | Yes |
| Number of Oven Lights | 2 |
| Number of Oven Racks | 3 |
| Number of Rack Guides | 7 |
| Oven Cleaning Type | AquaLift® Self Clean |
| Oven Cooking System | Convection |
| Oven Light Type | Incandescent |
| Oven Rack Type | Max Capacity, Gliding Roll-Out, and Heavy Duty |
