$1,699.00
Oblivion 24" Electric Radiant Cooktop with Emotive Controls - JEC4424KB
$1,699.00
Current Rebates
Key Features
Most Powerful Radiant Cooktop In Its Class
6" 1,200-Watt Single Element
Keep Warm Function on All Elements
Kitchen Timer
Power On Indicator Light
Control Lock
Cooktop Power Off Function
Serviced by a Select Few
Available from Sorenson's Appliance & TV, serving customers throughout Minnesota.
Features
Most Powerful Radiant Cooktop In Its Class
The four-element, 7,300-watt 24" JEC4424H is the most powerful radiant cooktop in its class
6" 1,200-Watt Single Element
A fast-heating heating element ideally sized for small sauce pans and sauciers that can reach up to 1,200 watts of power.

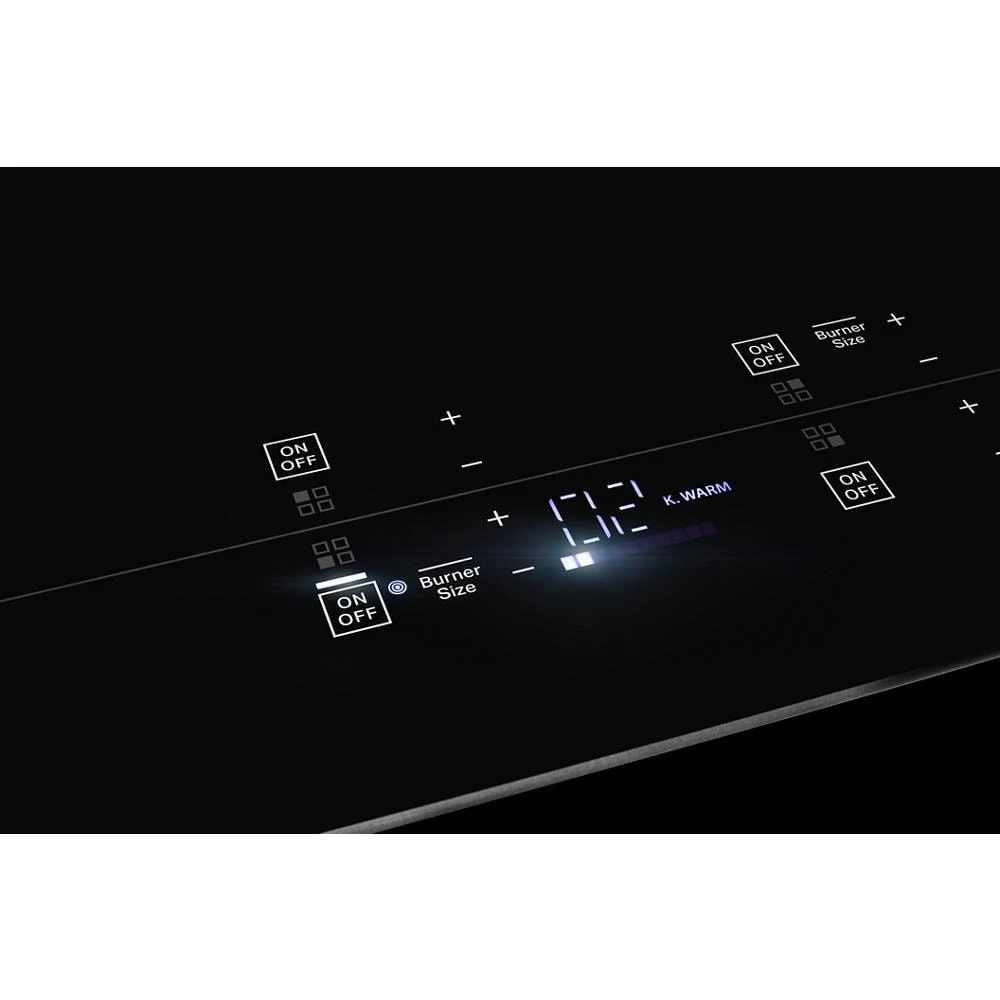

Keep Warm Function on All Elements
Reward anticipation. Low heat at power level 2 keeps tempting dishes at the right temperature until they’re ready to be served.
Kitchen Timer
The kitchen timer can be set in hours, minutes, and seconds and counts down the set time. Setting a kitchen timer will remind you when it's time to check your food, but will not turn your burner element off.
Power On Indicator Light
See at a glance that power is on for an electric radiant element.
Control Lock
Control Lock prevents unintended use of the cooktop and ensures complete, simple cleaning of the controls.
Cooktop Power Off Function
Conveniently turn off all radiant elements at once.
Serviced by a Select Few
We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.

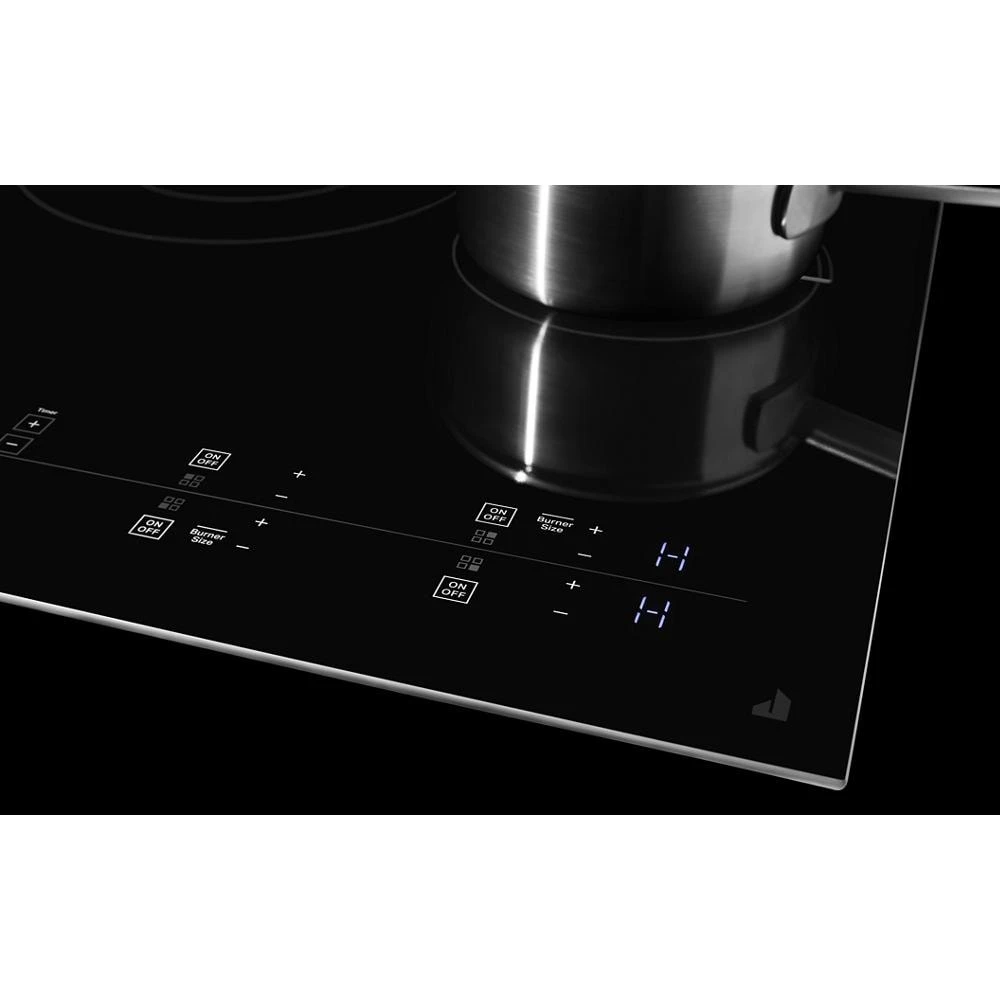

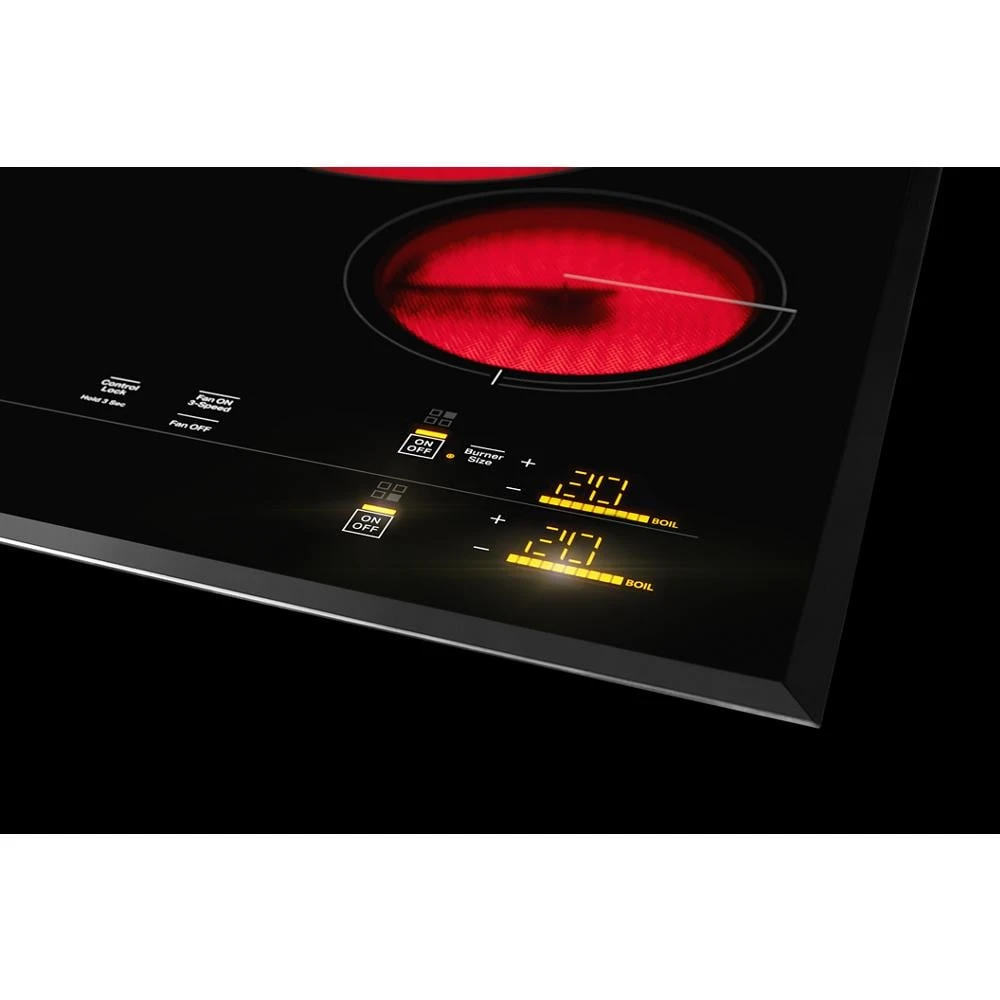

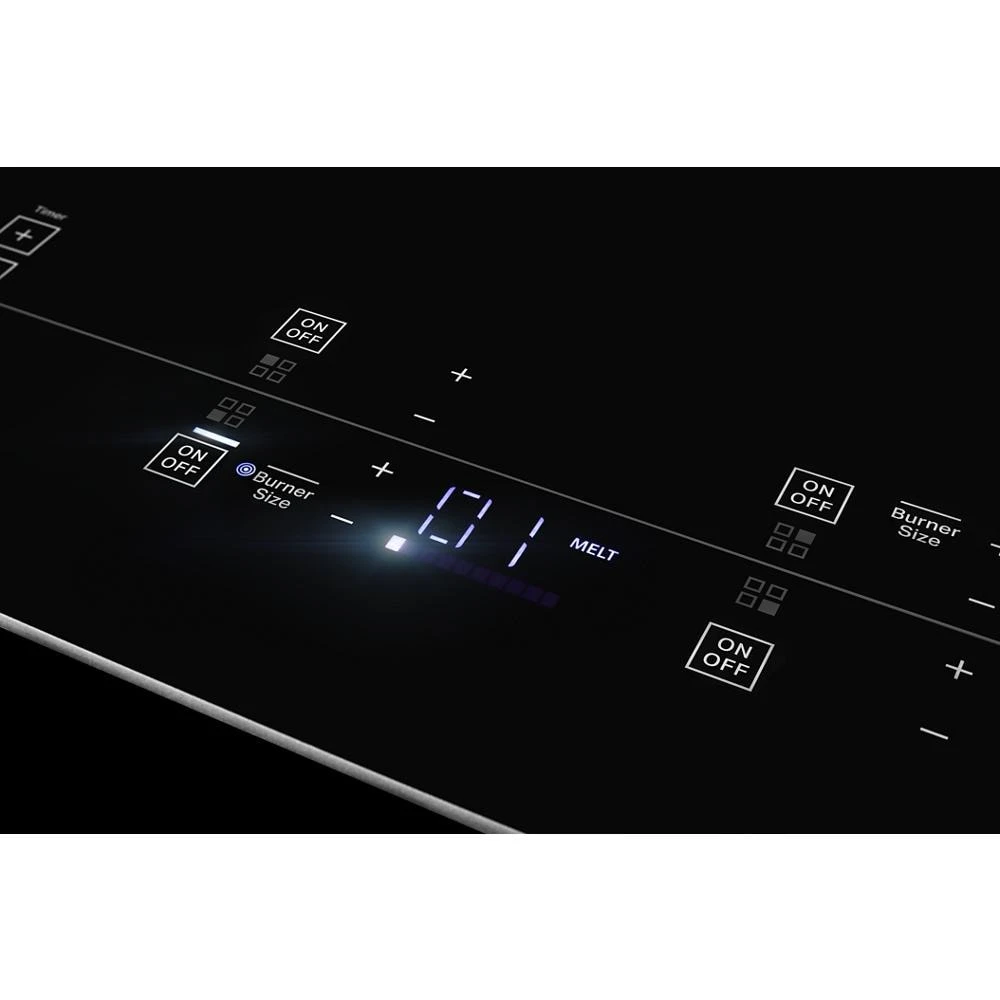

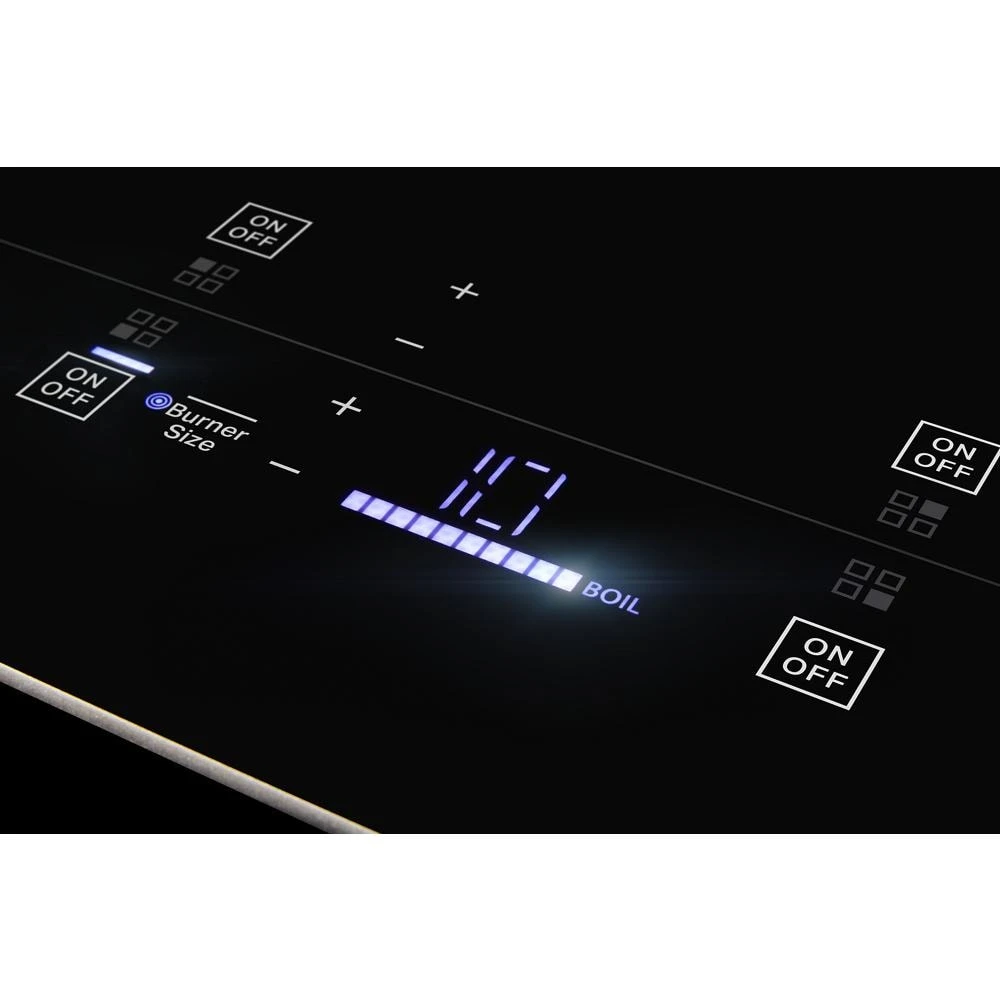

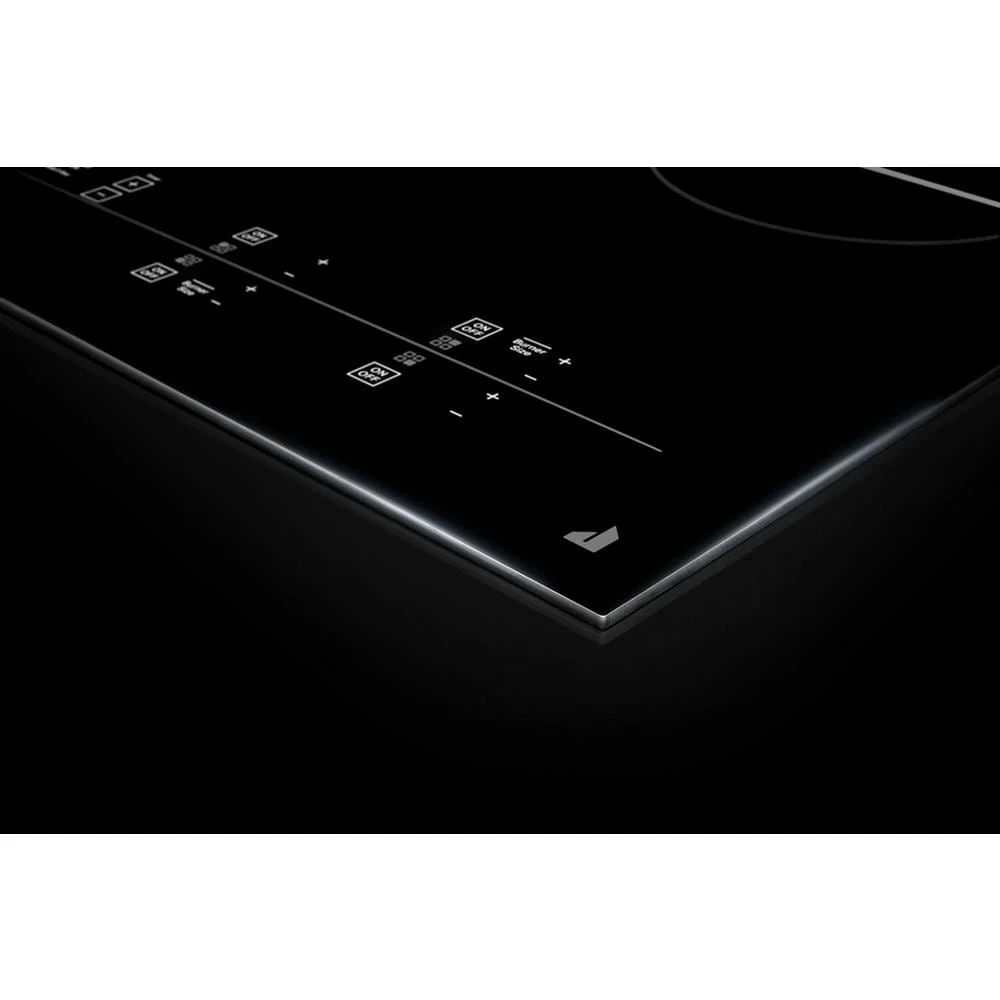

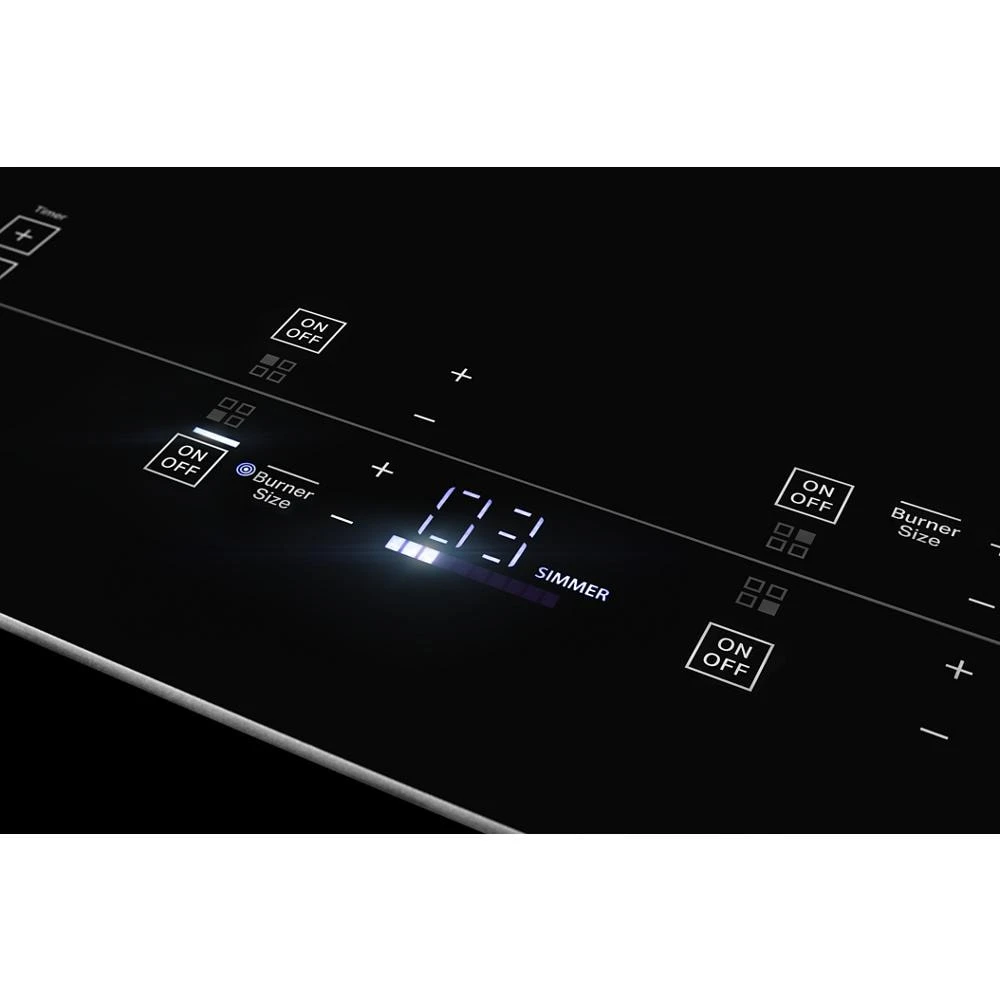

Emotive Controls
Striking, intuitive and inviting controls with clear, white LEDs unleash performance at your touch.

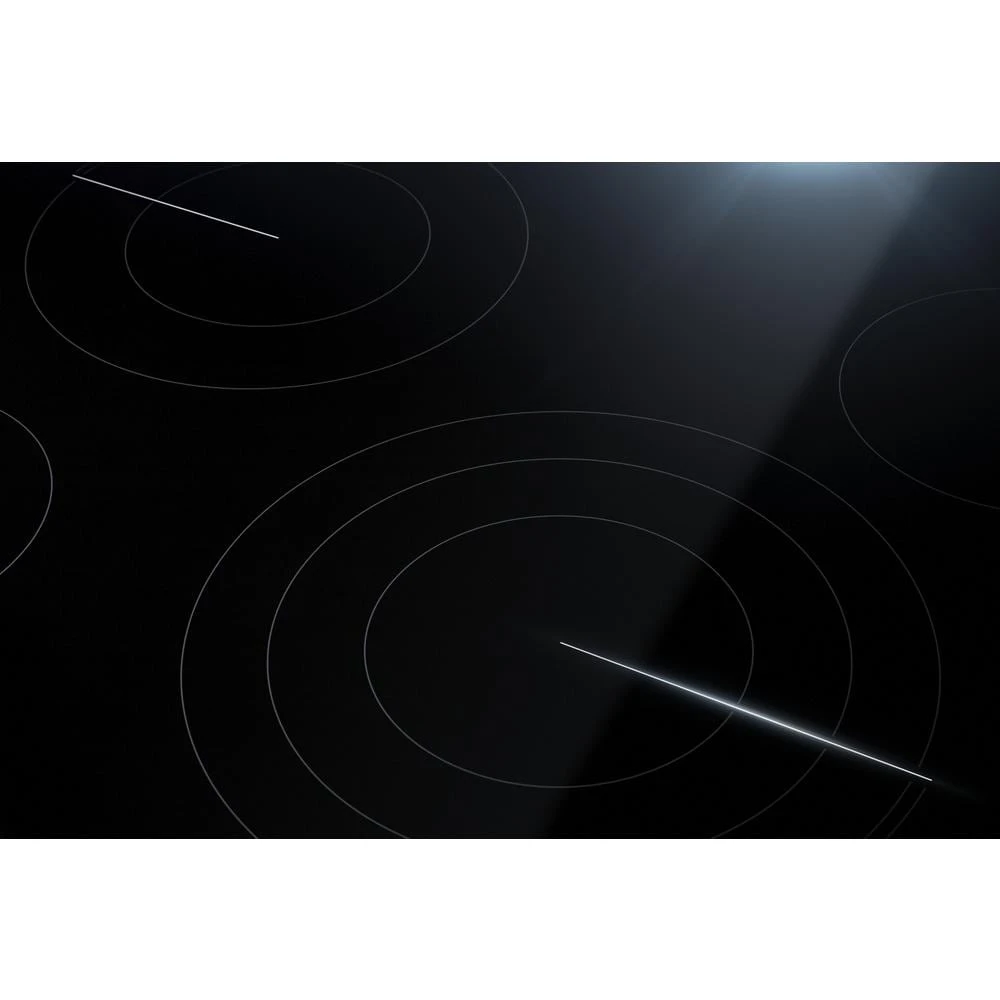

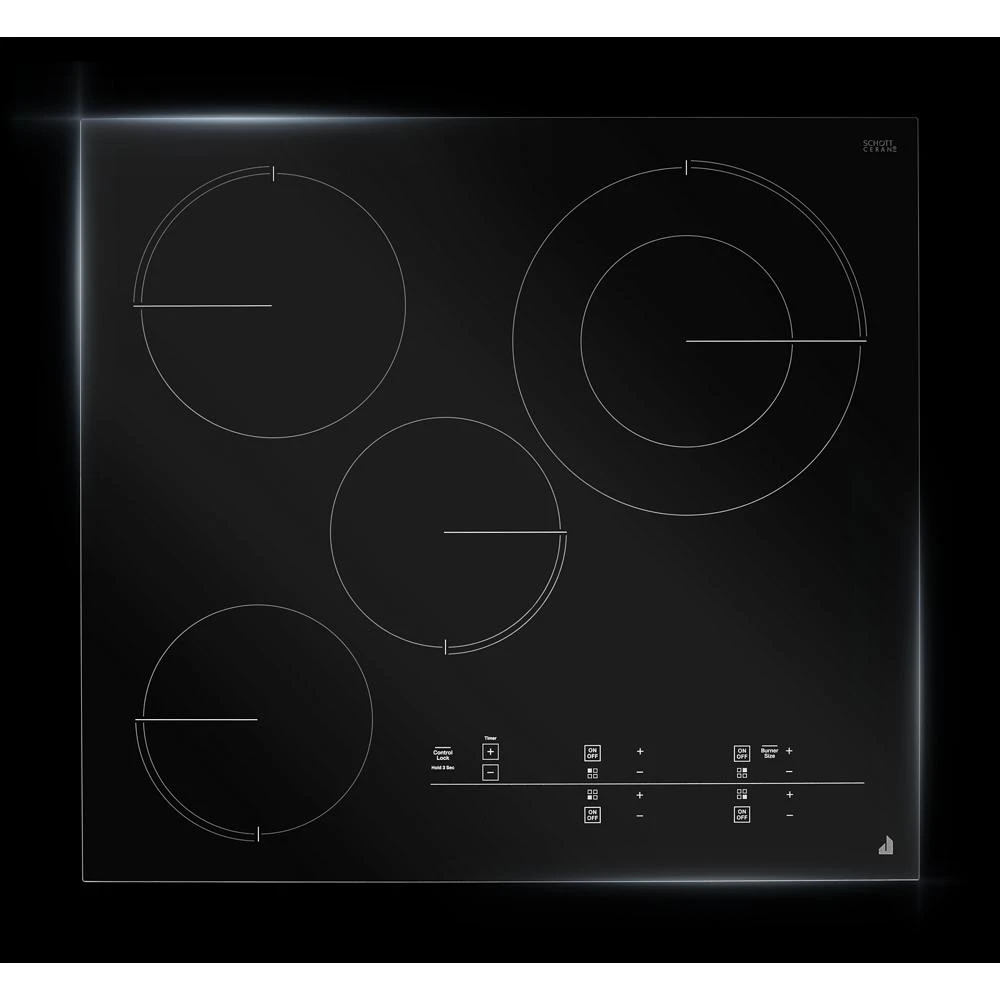

Oblivion Glass Design
Sleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.

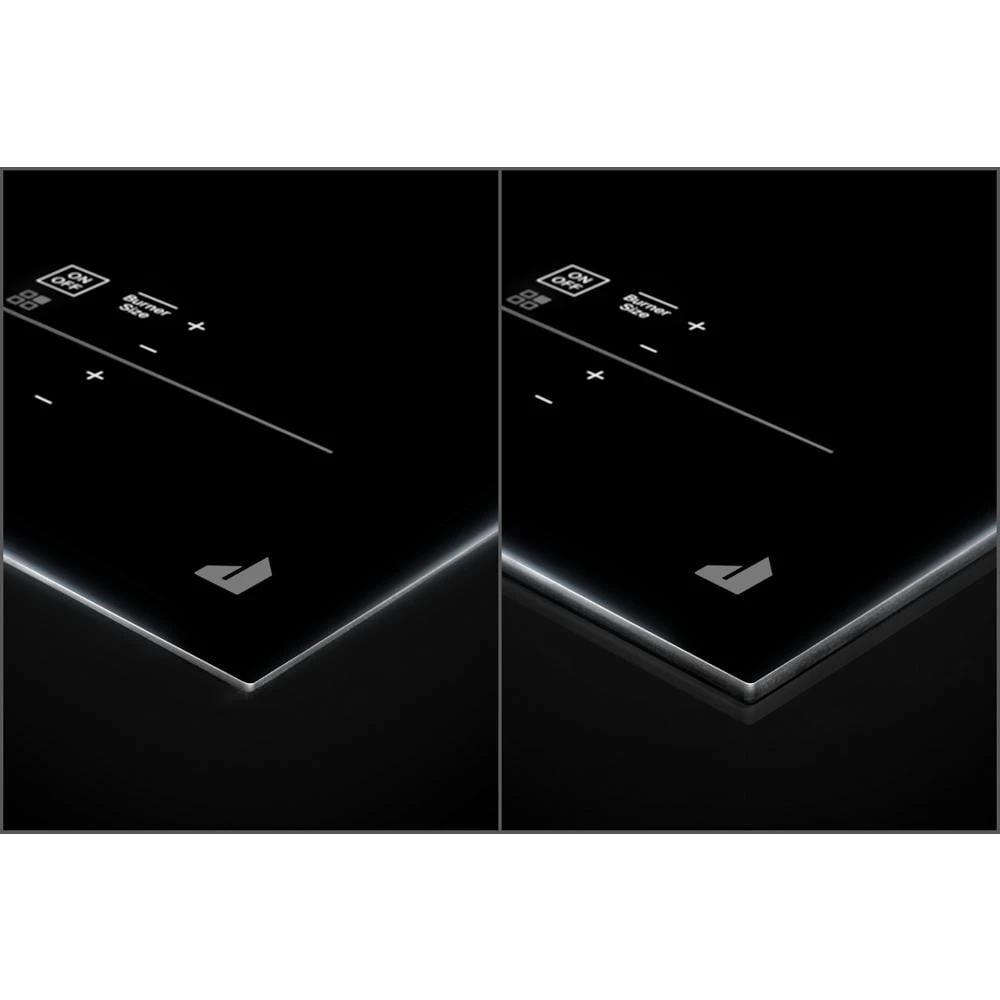

Versatile Installation
Install without limits. This JennAir® cooktop can be installed true flush or semi-flush at 3mm above any level countertop, including an island or peninsula.
Install Over Single Wall Oven
Versatility and functionality converge with the ability to install in a countertop above our single wall oven.

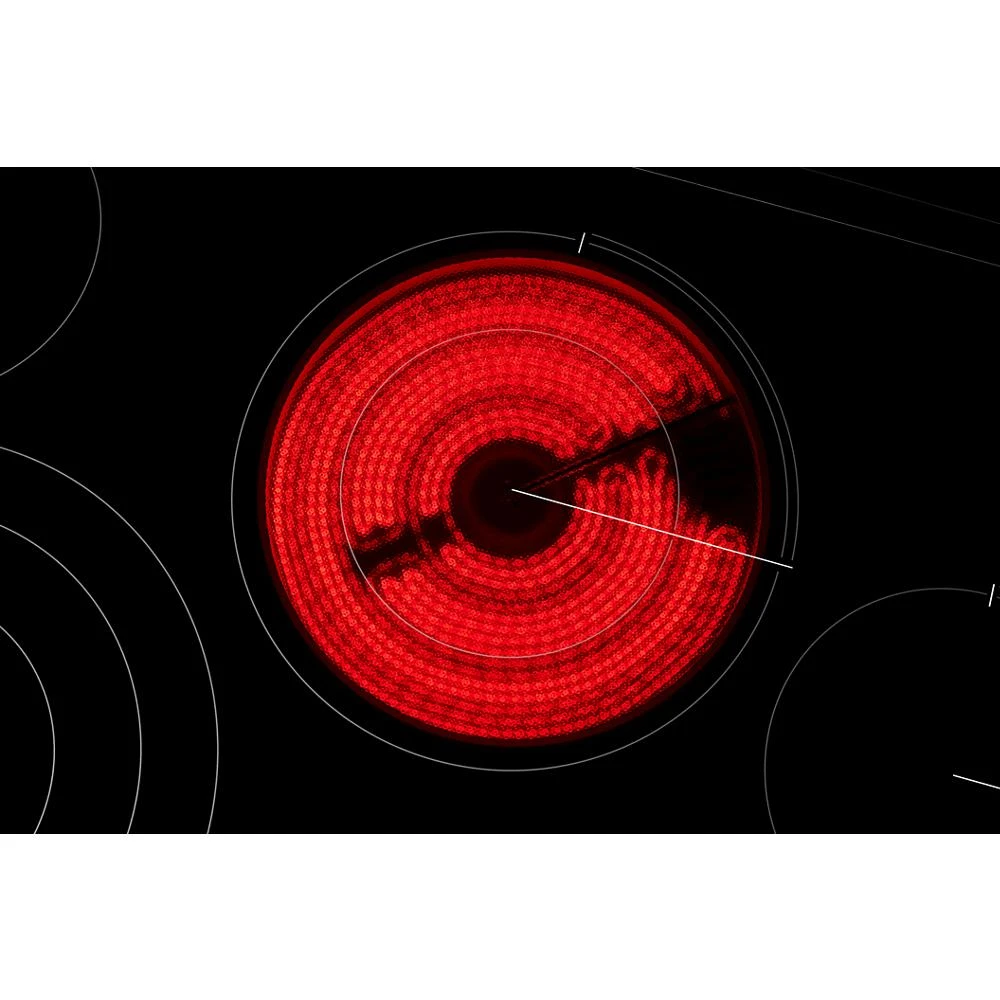

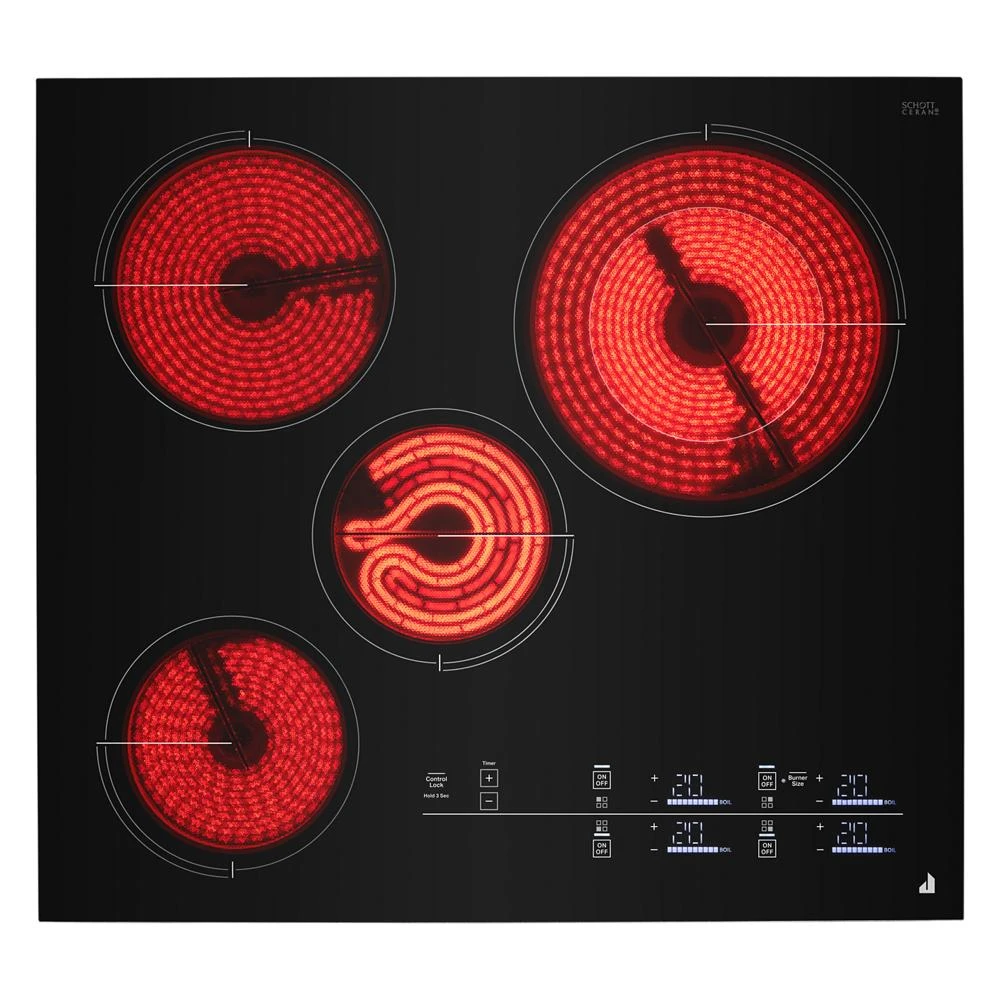

10"/6" Dual-Choice Element
This two-tiered single element accommodates various-sized cookware in one location and can achieve an output of up to 3,000 watts when both elements are active.
8" 1,800-Watt Single Element
This element has an output of up to 1,800 watts and is ideally sized for medium cookware and offers the power to perform a wide variety of cooking tasks.
6" 1,300-Watt Single Element
A fast-heating element ideally sized for small sauce pans and sauciers that can reach up to 1,300 watts of power and as low as 300 watts.
10”/6” Dual-Choice™ Element
This two-tiered single element accommodates various-sized cookware in one location and can achieve an output of up to 3,000 watts when both elements are active.
Specifications
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Controls
| Control Location | Front |
| Control Type | Electronic Tap Touch |
Cooktop Details
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Glass |
| Digital Display | Yes |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Installs Over Built-In Oven | Yes |
| Griddle Included | N/a |
Certifications
| UL | Yes |
| ADA Compliant | Ada Height And Operation Compliant |
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
Electrical
| Amps | 40 |
| Hz | 60 |
| Power Cord Included | No |
| Volts | 240 |
| 208V Compatible | Yes |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 3.71 ft³ |
| Dimensional Weight | 46.17 lbs. |
| Total of Cubes | 3.71 ft³ |
| Total of Dimensional Weight | 46.17 lbs. |
Details
| Cooktop Configuration | All Burners |
| Fuel Type | Electric Radiant |
| Installation Configuration | True Flush |
| Installs Over Built-In Oven | Yes |
| LP Convertible | No |
| Power Outage Compatible | No |
| Digital Display | Yes |
| Design Expression | Oblivion Glass |
Element/Burner Details
| Cooktop Element Style | Radiant |
| Cooktop Type | Traditional |
| Left Front Element-Burner Size | 6in. |
| Left Front Element-Burner Type | Standard |
| Left Rear Element-Burner Size | 8in. |
| Left Rear Element-Burner Type | Standard |
| Number of Cooking Element-Burners | 4 |
| Power Boost | No |
| Right Front Element-Burner Size | 6in. |
| Right Front Element-Burner Type | Standard |
| Right Rear Element-Burner Size | 10in./6in. |
| Automatic Pan Detection | No |
| Left Front Element-Burner Power | 1,200w |
| Left Rear Element-Burner Power | 1,800w |
| Right Front Element-Burner Power | 1,300w |
| Right Rear Element-Burner Power | 3000w/1900w |
| Right Rear Element-Burner Type | Dual-stacked Burner |
Ventilation Details
| Downdraft Vent | No |
| Ventilation Type | Updraft |
Dimensions & Weight
| Width | 27.75 in. |
| Height | 9.25 in. |
| Length | 25 in. |
| Weight | 46 lbs. |
| Carton Depth | 25 |
| Carton Height | 9 1/4 |
| Carton Width | 27 3/4 |
| Cutout Depth (in) | 20 3/8 |
| Cutout Width (in) | 22 1/16 |
| Gross Weight | 46 |
| Net Weight | 42.3 |
| Gross Weight | 46 |
| Cutout Depth Max(IN,inches) | 20.5625 |
| Cutout Depth Min(IN,inches) | 20.3750 |
| Cutout Depth(IN,inches) | 20.3750 |
| Cutout Width Max(IN,inches) | 22.5625 |
| Cutout Width Min(IN,inches) | 22.0625 |
| Cutout Width(IN,inches) | 22.0625 |
| Depth(IN,inches) | 21.7500 |
| Maximum Height(IN,inches) | 5.2500 |
| Net Weight(LB,pounds) | 42 |
| Carton Depth(IN,inches) | 25.0000 |
| Carton Height(IN,inches) | 9.2500 |
| Carton Width(IN,inches) | 27.7500 |
| Gross Weight(LB,pounds) | 46 |
| Cutout Depth | 20.375 |
| Cutout Depth Max | 20.563 |
| Cutout Depth Min | 20.375 |
| Cutout Width | 22.063 |
| Cutout Width Max | 22.563 |
| Cutout Width Min | 22.063 |
| carton depth | 25 |
| carton height | 9.25 |
| carton width | 27.75 |
| gross weight | 46 |
| net weight | 42.29 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 27.75 in. |
| Shipping Height | 9.25 in. |
| Shipping Length | 30 in. |
| Shipping Weight | 86 lbs. |
| Total of Shipping Weight | 86 lbs. |
| Source | Calculation |
Dimensions
| Common Size | 24 In |
| Cutout Depth | 20-3/8 In |
| Cutout Depth Max | 20-563/1000 In |
| Cutout Depth Min | 20-3/8 In |
| Cutout Width | 22-63/1000 In |
| Cutout Width Max | 22-563/1000 In |
| Depth | 21-3/4 In |
| Gross Weight | 46 Lbs |
| Height | 5-1/4 In |
| Maximum Height | 5-1/4 In |
| Net Weight | 42-29/100 Lbs |
| Width | 23-13/16 In |
