$2,249.00
Oblivion 36" Electric Radiant Cooktop with Emotive Controls - JEC4536KB
$2,249.00
Current Rebates
Key Features
Most Powerful Radiant Cooktop In Its Class
6" 1,200-Watt Single Element
Keep Warm Function on All Elements
Kitchen Timer
Power On Indicator Light
Control Lock
Cooktop Power Off Function
ADA Compliant
Available from Sorenson's Appliance & TV, serving customers throughout Minnesota.
Features
Most Powerful Radiant Cooktop In Its Class
The five-element, 12,900-watt 36" JEC4536H is the most powerful radiant cooktop in its class
6" 1,200-Watt Single Element
A fast-heating heating element ideally sized for small sauce pans and sauciers that can reach up to 1,200 watts of power.

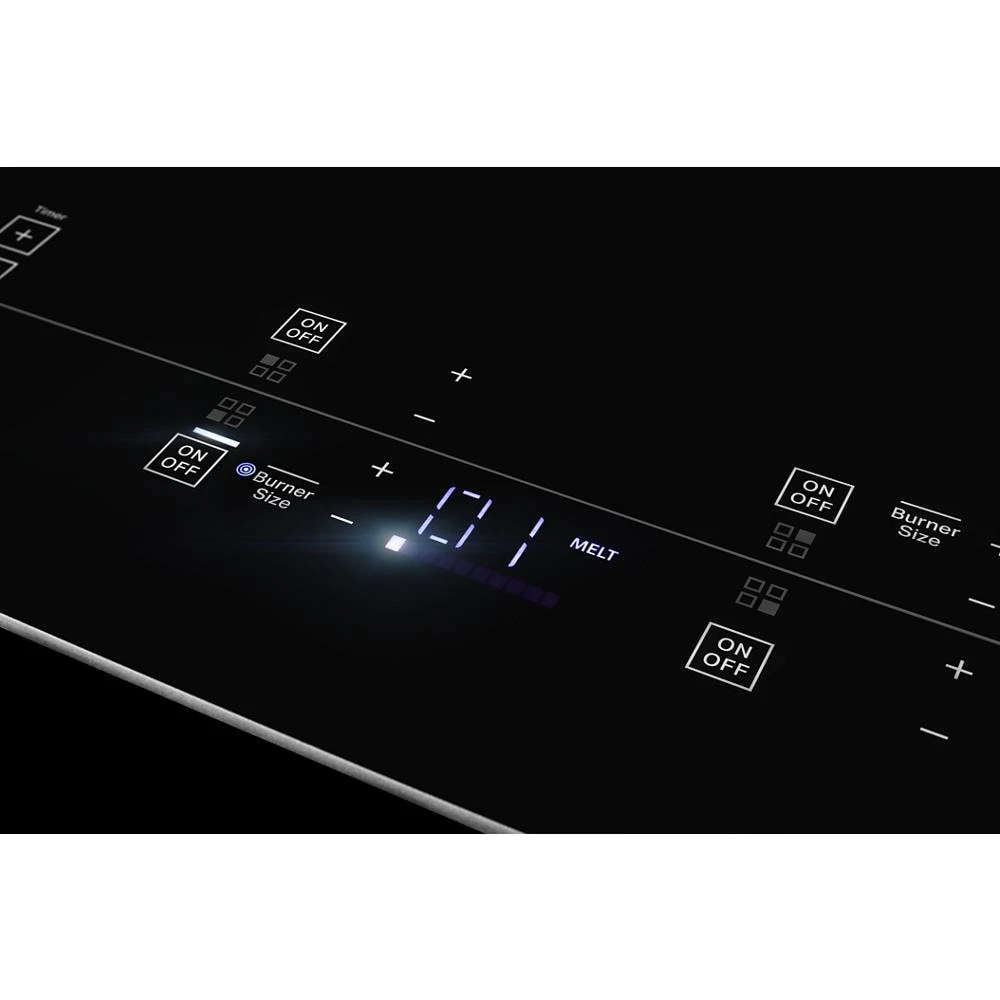

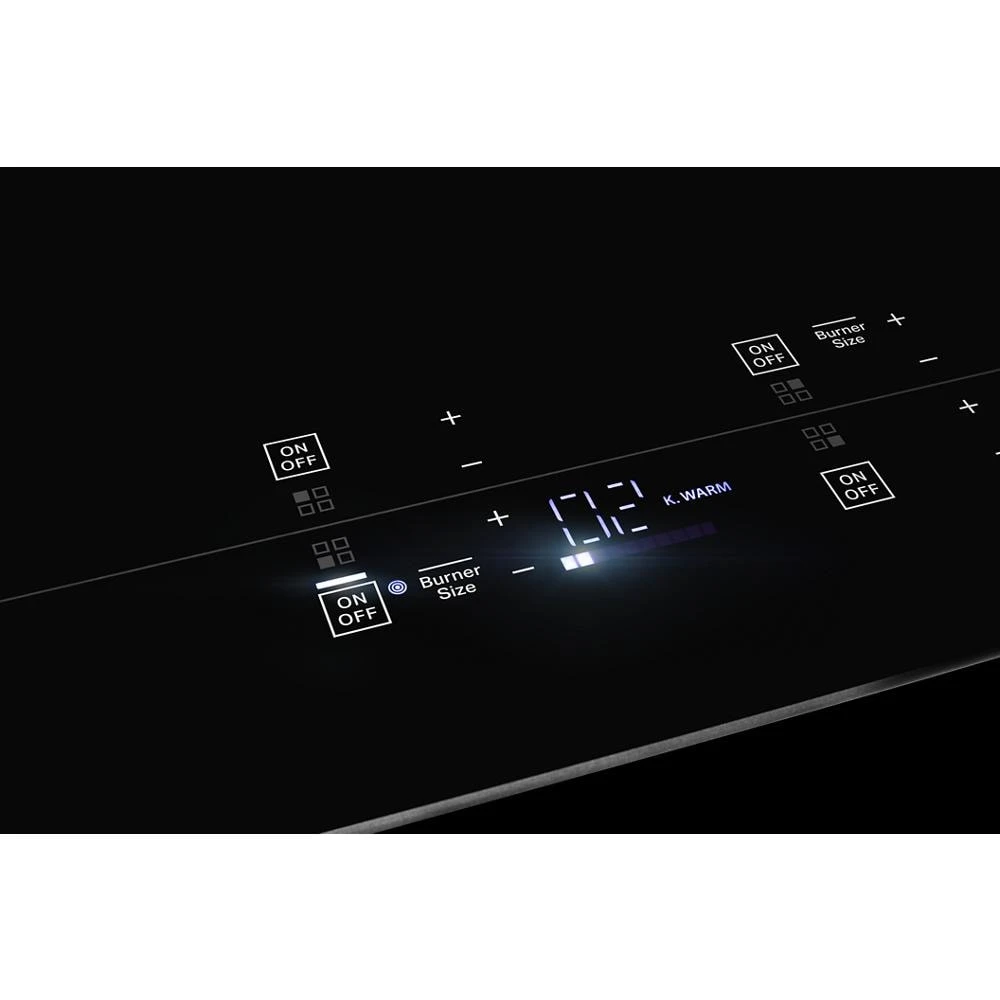

Keep Warm Function on All Elements
Reward anticipation. Low heat at power level 2 keeps tempting dishes at the right temperature until they’re ready to be served.
Kitchen Timer
The kitchen timer can be set in hours, minutes, and seconds and counts down the set time. Setting a kitchen timer will remind you when it's time to check your food, but will not turn your burner element off.
Power On Indicator Light
See at a glance that power is on for an electric radiant element.
Control Lock
Control Lock prevents unintended use of the cooktop and ensures complete, simple cleaning of the controls.
Cooktop Power Off Function
Conveniently turn off all radiant elements at once.
ADA Compliant
Designed to meet ADA standards when installed according to the ADA guidelines.
Serviced by a Select Few
We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.

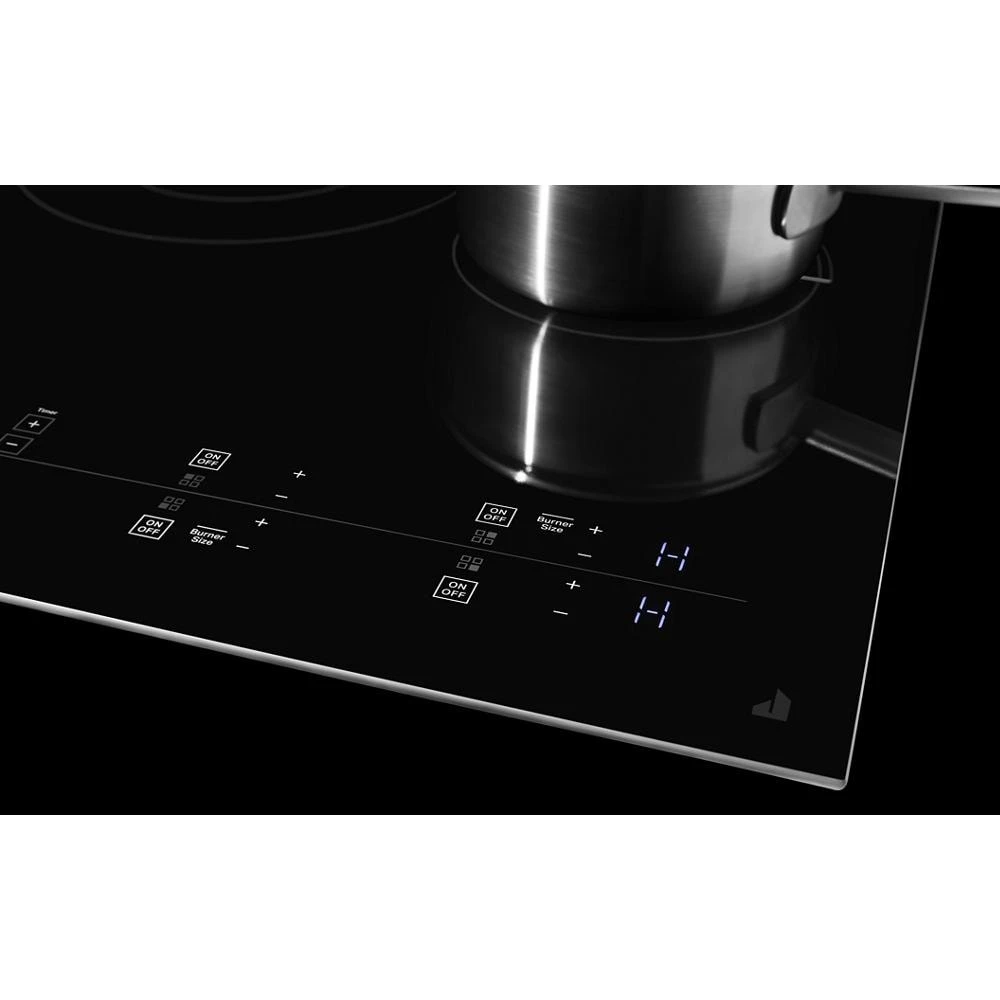

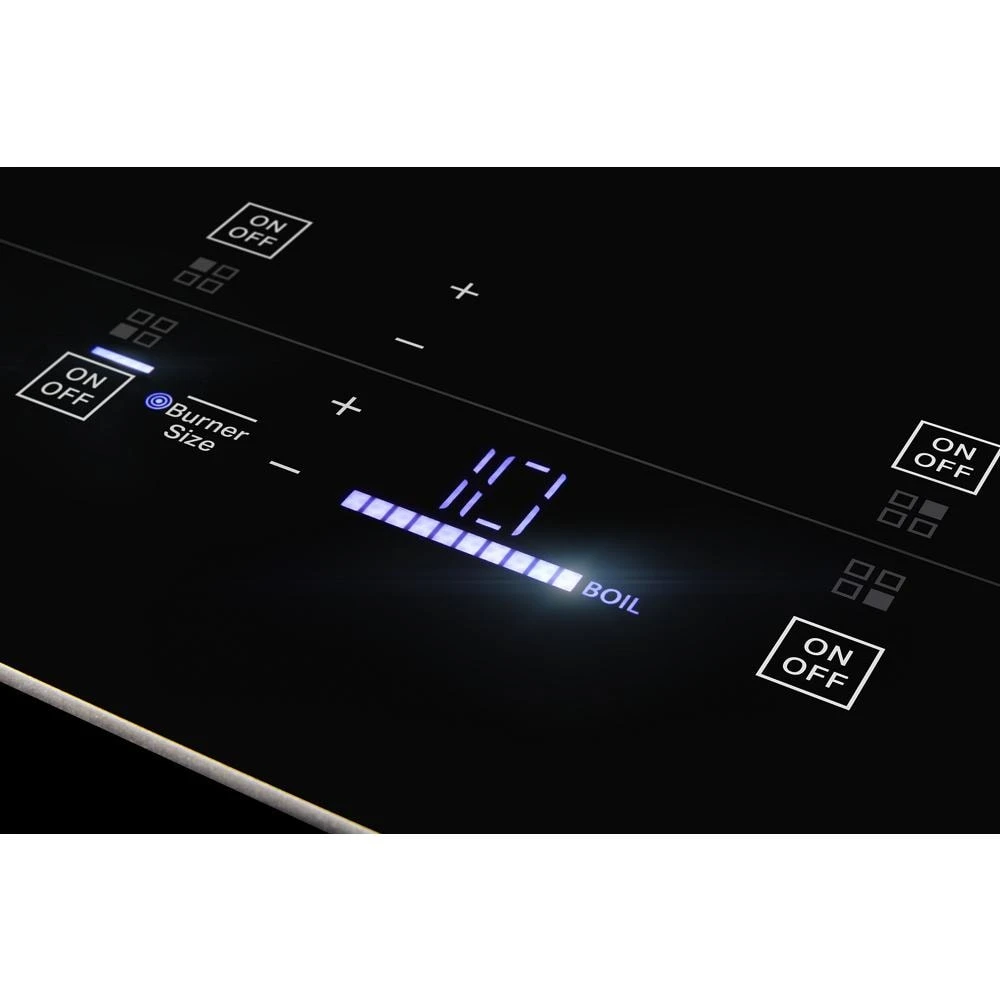

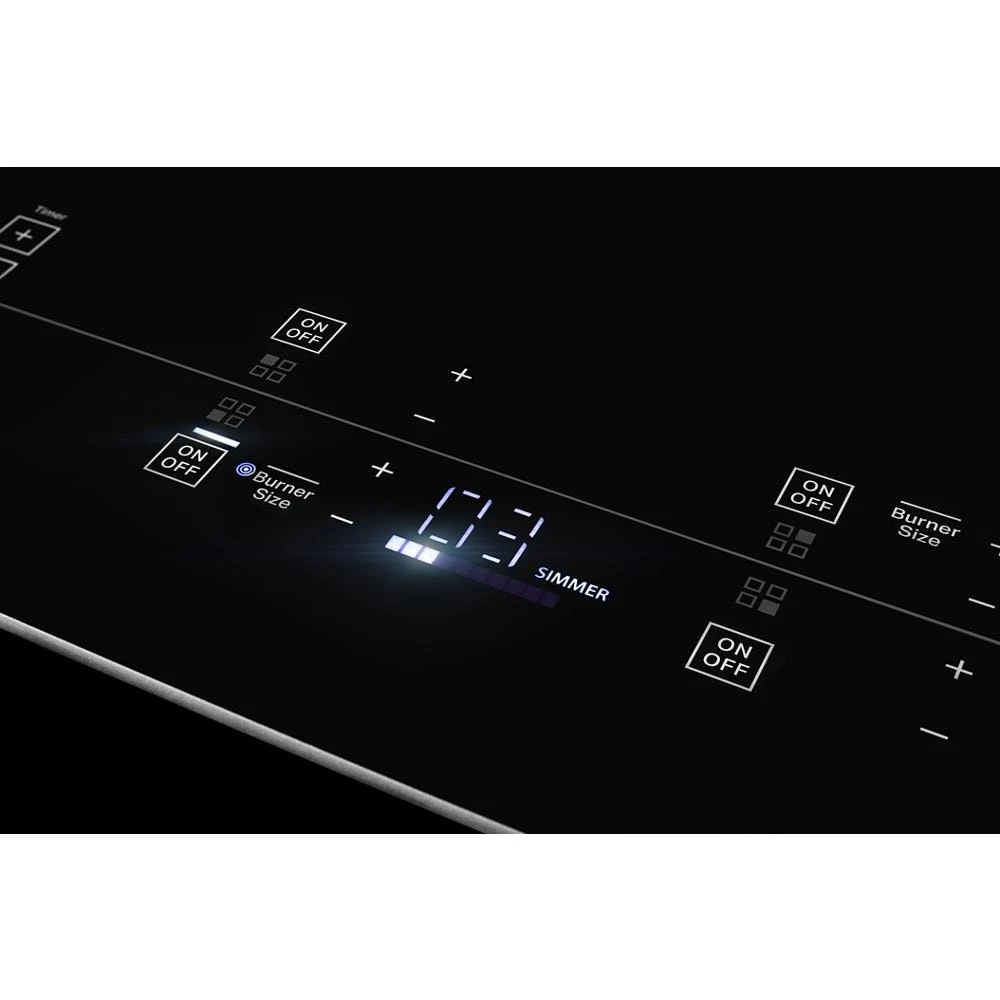

Emotive Controls
Striking, intuitive and inviting controls with clear, white LEDs unleash performance at your touch.

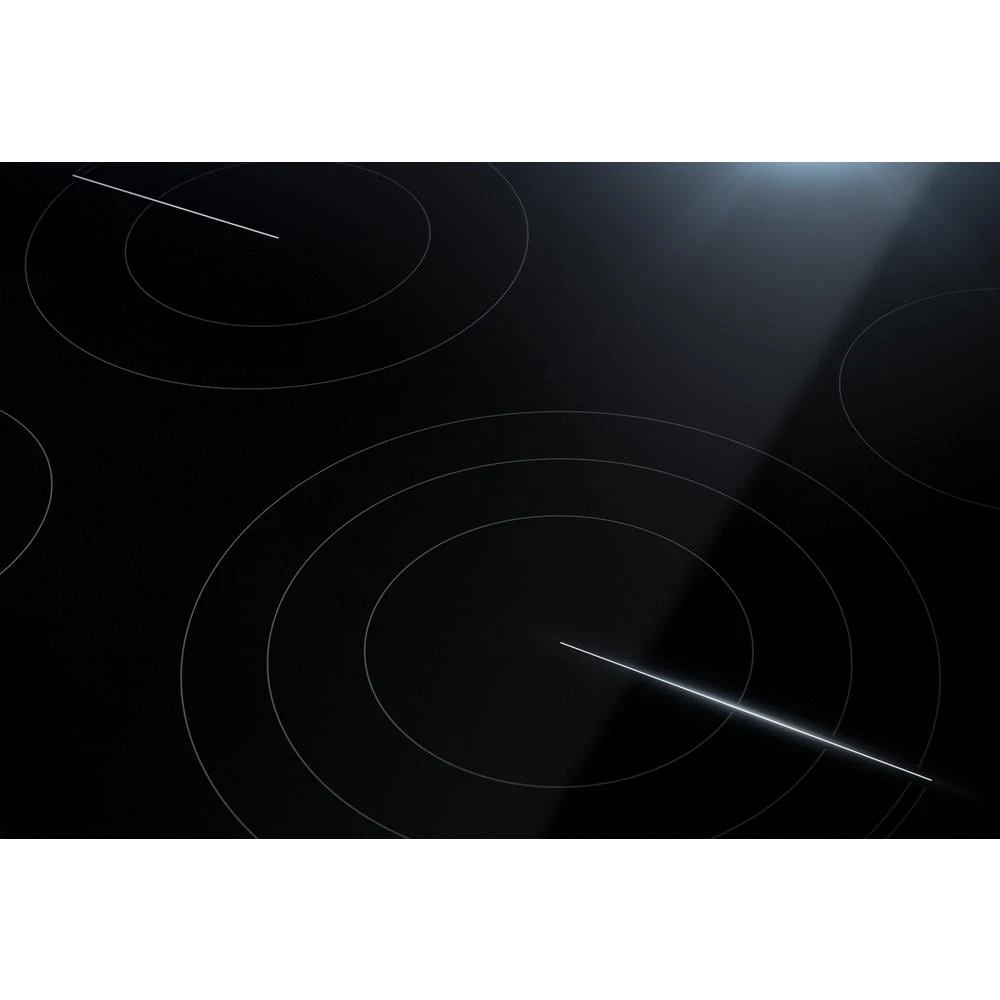

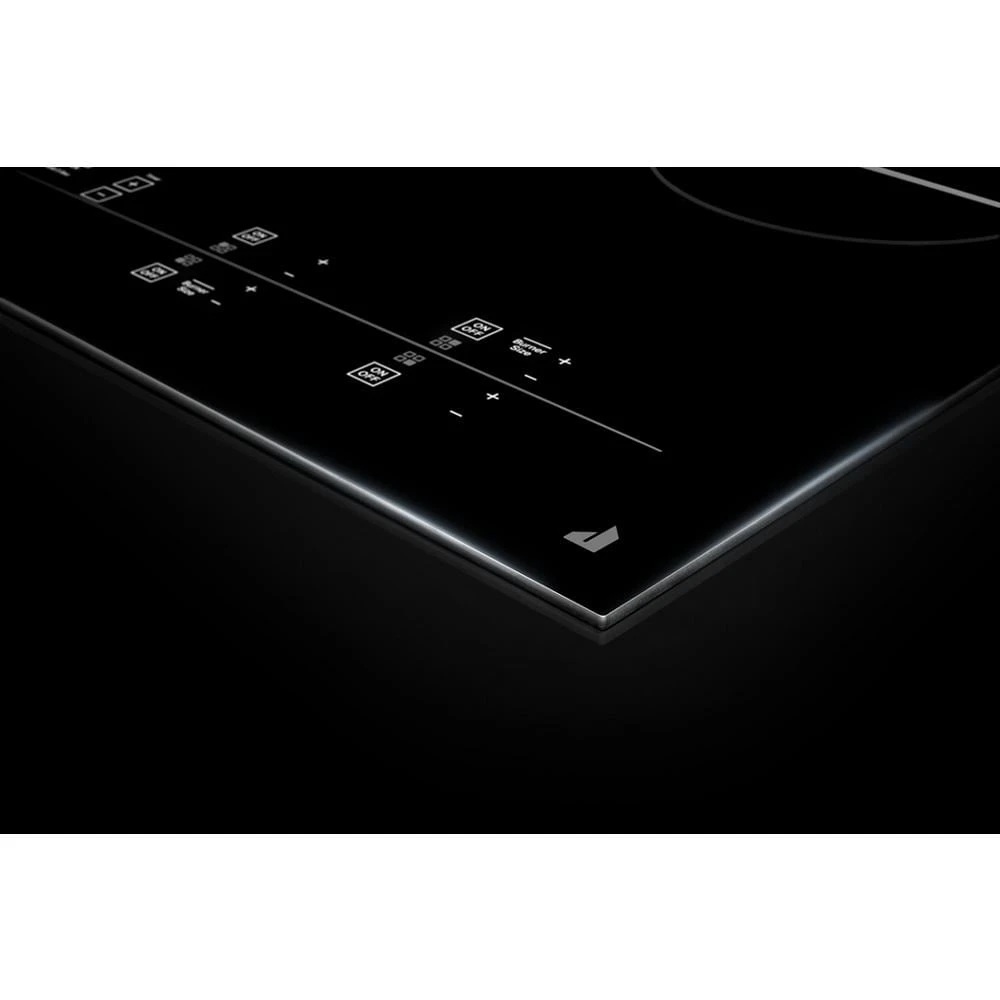

Oblivion Glass Design
Sleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.

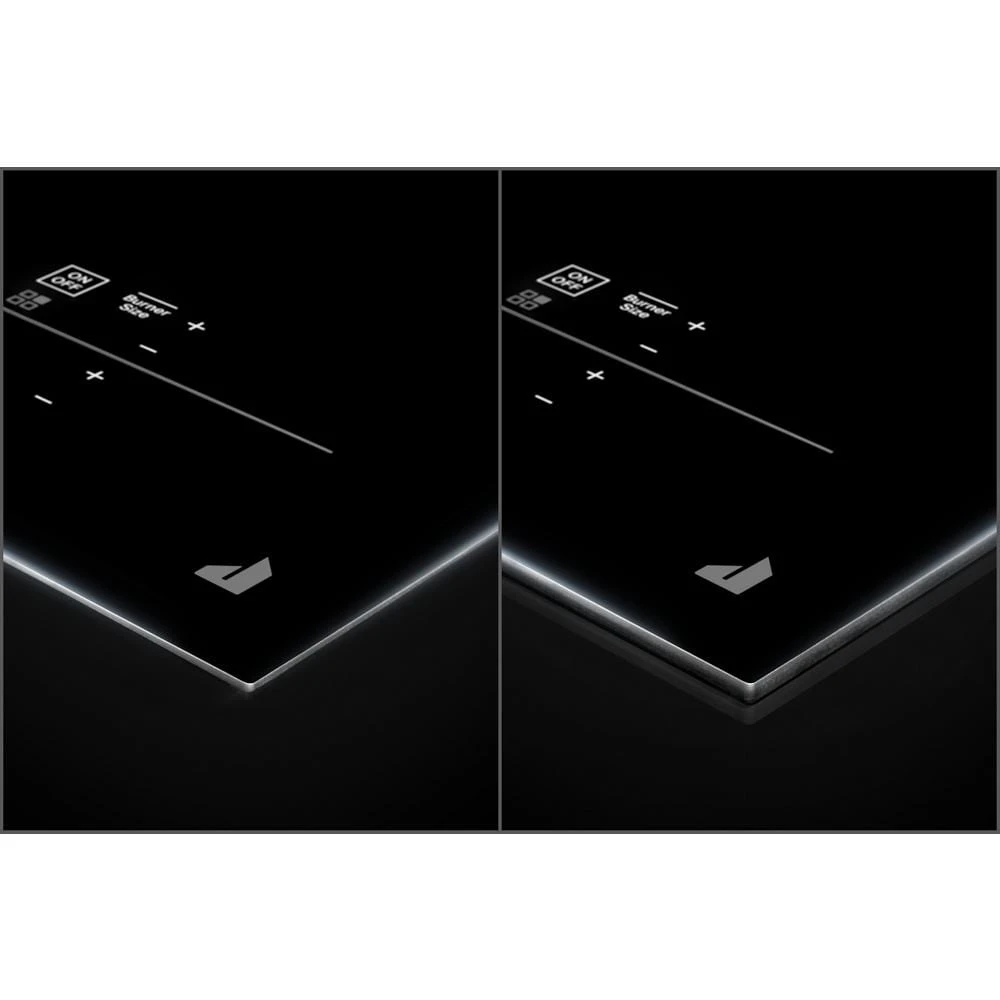

Versatile Installation
Install without limits. This JennAir® cooktop can be installed true flush or semi-flush at 3mm above any level countertop, including an island or peninsula.
Install Over Single Wall Oven
Versatility and functionality converge with the ability to install in a countertop above our single wall oven.

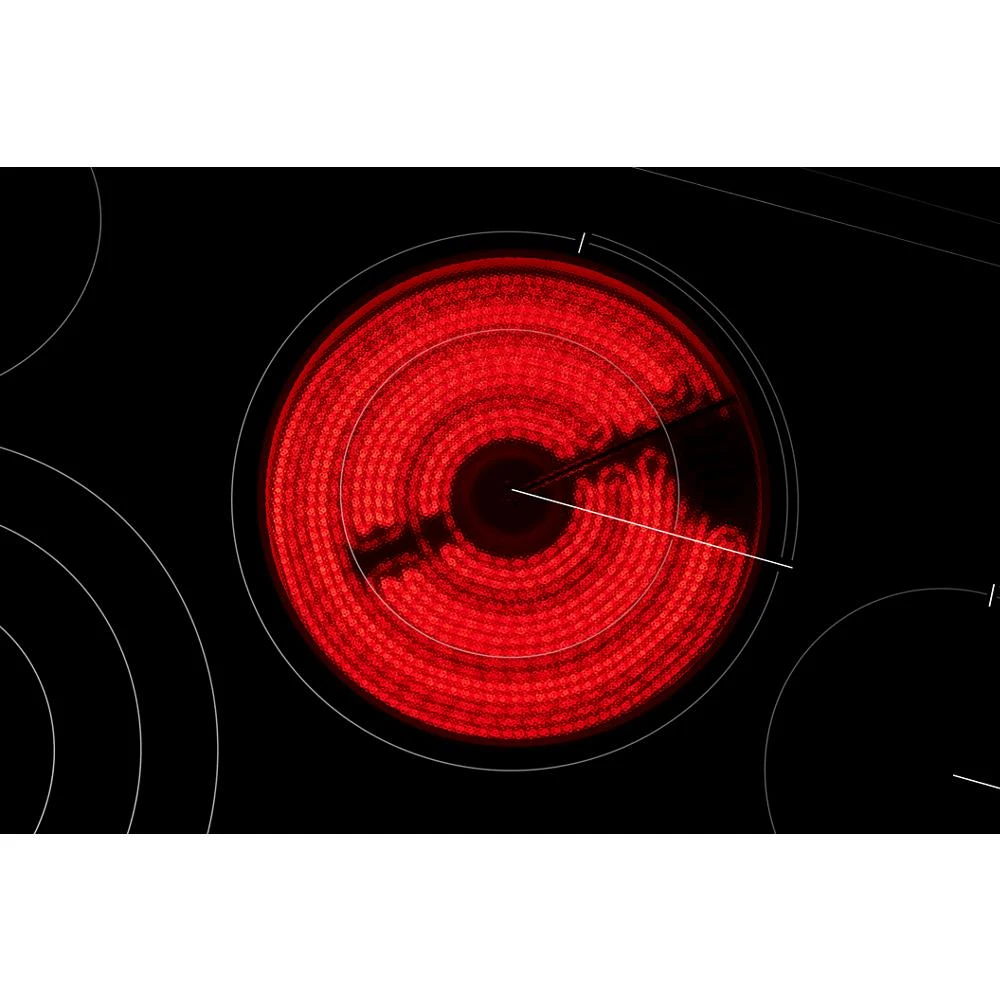

Most Powerful Radiant Element In The Industry
The 12"/9"/6" Triple-Choice element is the most powerful radiant element available on 36- and 30-inch electric radiant cooktops. It reaches up to 4,500 watts when all three tiers are activated.
12"/9"/6" Triple-Choice Element
Reaching up to a powerful 4,500 watts and capable of turning down as low as 1,400 watts, this three-tiered element provides versatility in power levels while accommodating various-sized cookware.

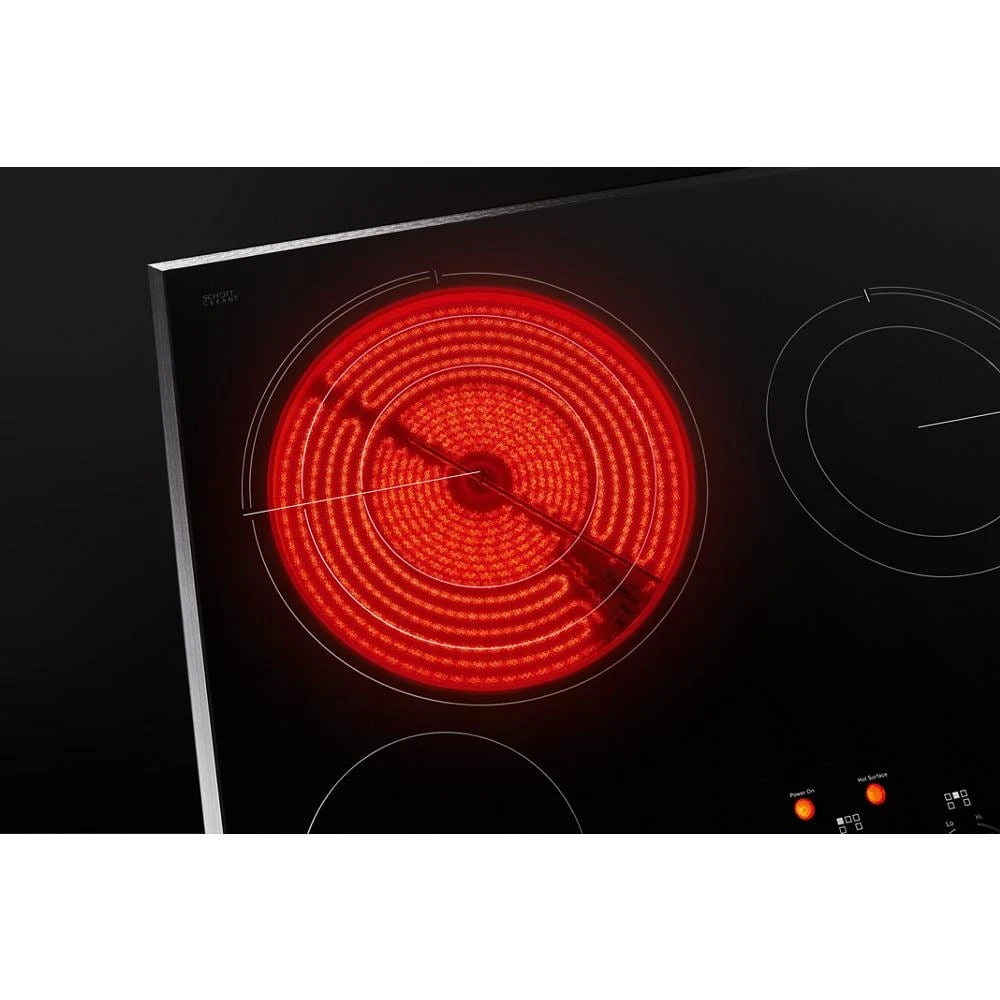

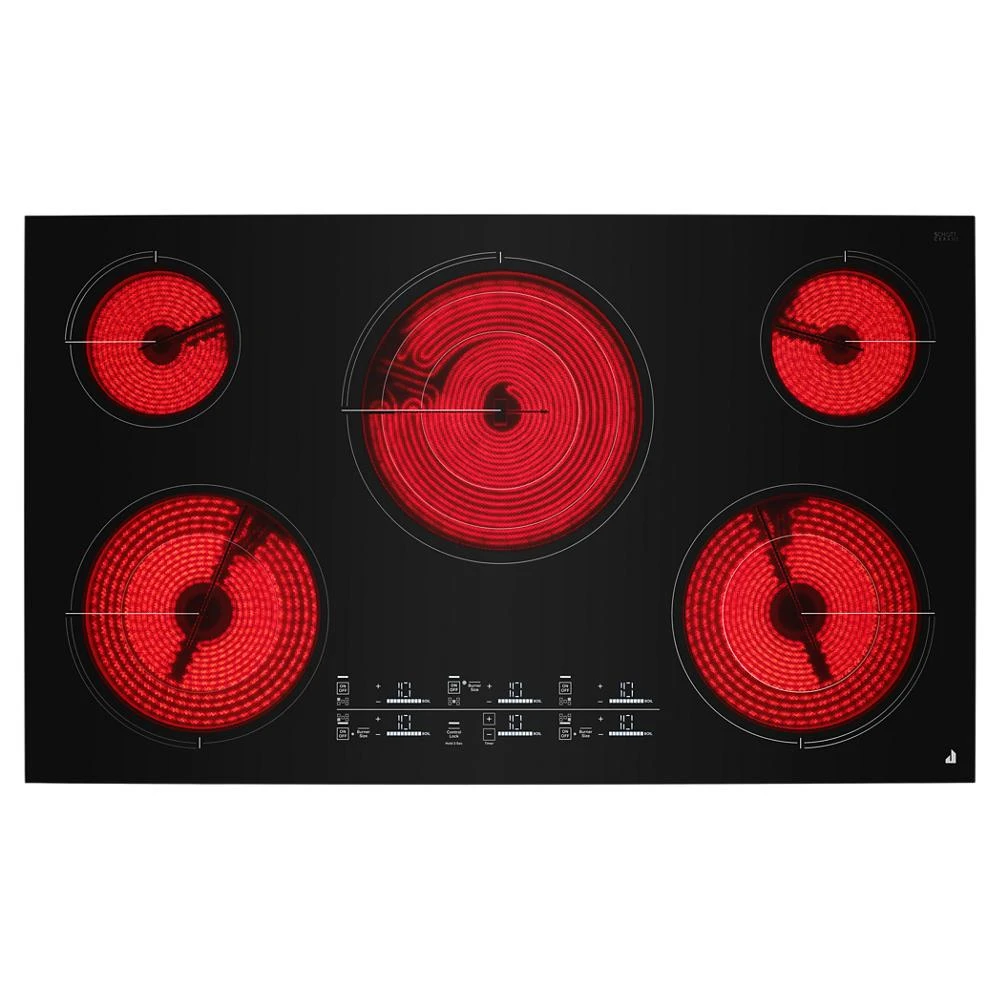

Radiant Elements
Beneath the sleek, black cooktop surface, fast-heating elements deliver heat upon command.
10"/6" Dual-Choice Element
This two-tiered single element accommodates various-sized cookware in one location and can achieve an output of up to 3,000 watts when both elements are active.
Specifications
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Controls
| Control Location | Front |
| Control Type | Electronic Tap Touch, Electronic Tap Touch |
Cooktop Details
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Glass |
| Digital Display | No |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Combination Match with Oven | Jjw2424, Jjw2427, Jjw2430, Jjw3430, Jjw6024 |
| Griddle Included | N/a |
| Installs Over Built-In Oven | Yes |
Electrical
| Amps | 40 |
| Hz | 60 |
| Power Cord Included | No |
| Volts | 240 |
| 208V Compatible | Yes |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 5.45 ft³ |
| Dimensional Weight | 67.79 lbs. |
| Total of Cubes | 5.45 ft³ |
| Total of Dimensional Weight | 67.79 lbs. |
Details
| Cooktop Configuration | All Burners |
| Fuel Type | Electric Radiant |
| Installs Over Built-In Oven | Yes |
| LP Convertible | No |
| Power Outage Compatible | No |
| Installation Configuration | True Flush, True Flush |
| Design Expression | Oblivion Glass |
| Digital Display | No |
Element/Burner Details
| Center Rear Element-Burner Size | 12in./9in./6in. |
| Center Rear Element-Burner Type | Triple |
| Cooktop Element Style | Radiant |
| Cooktop Type | Traditional |
| Left Front Element-Burner Size | 10in./6in. |
| Left Front Element-Burner Type | Dual |
| Left Rear Element-Burner Size | 6in. |
| Left Rear Element-Burner Type | Single |
| Number of Cooking Element-Burners | 5 |
| Power Boost | No |
| Right Front Element-Burner Size | 10in./6in. |
| Right Front Element-Burner Type | Dual |
| Right Rear Element-Burner Size | 6in. |
| Right Rear Element-Burner Type | Standard |
| Automatic Pan Detection | No |
| Center Rear Element-Burner Power | 4500w/3000w/1500w |
| Left Front Element-Burner Power | 3000w/1900w |
| Left Rear Element-Burner Power | 1,200w |
| Right Front Element-Burner Power | 3000w/1900w |
| Right Rear Element-Burner Power | 1,200w |
Ventilation Details
| Downdraft Vent | No |
| Ventilation Type | Updraft |
Dimensions & Weight
| Width | 40.75 in. |
| Height | 9.25 in. |
| Length | 25 in. |
| Weight | 50 lbs. |
| Carton Depth | 25 |
| Carton Height | 9 1/4 |
| Carton Width | 40 3/4 |
| Cutout Depth (in) | 20 3/8 |
| Cutout Width (in) | 34 9/16 |
| Gross Weight | 50 |
| Maximum Height | 5 1/4 |
| Net Weight | 44.5 |
| Gross Weight | 50 |
| Cutout Depth Max(IN,inches) | 20.5625 |
| Cutout Depth Min(IN,inches) | 20.3750 |
| Cutout Depth(IN,inches) | 20.3750 |
| Cutout Width Max(IN,inches) | 35.5625 |
| Cutout Width Min(IN,inches) | 34.5625 |
| Cutout Width(IN,inches) | 34.5625 |
| Depth(IN,inches) | 21.7500 |
| Maximum Height(IN,inches) | 5.2500 |
| Net Weight(LB,pounds) | 45 |
| Carton Depth(IN,inches) | 25.0000 |
| Carton Height(IN,inches) | 9.2500 |
| Carton Width(IN,inches) | 40.7500 |
| Gross Weight(LB,pounds) | 50 |
| Cutout Depth | 20.375 |
| Cutout Depth Max | 20.563 |
| Cutout Depth Min | 20.375 |
| Cutout Width | 34.563 |
| Cutout Width Max | 35.563 |
| Cutout Width Min | 34.563 |
| carton depth | 25 |
| carton height | 9.25 |
| carton width | 40.75 |
| gross weight | 50 |
| net weight | 44.55 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 40.75 in. |
| Shipping Height | 9.25 in. |
| Shipping Length | 30 in. |
| Shipping Weight | 90 lbs. |
| Total of Shipping Weight | 90 lbs. |
| Source | Calculation |
Dimensions
| Cutout Depth Min | 20-3/8 In |
| Cutout Width Max | 35-563/1000 In |
| Common Size | 36 In |
| Cutout Depth | 20-3/8 In |
| Cutout Depth Max | 20-563/1000 In |
| Cutout Width | 34-563/1000 In |
| Depth | 21-3/4 In |
| Gross Weight | 50 Lbs |
| Height | 5-1/4 In |
| Maximum Height | 5-1/4 In |
| Net Weight | 44-11/20 Lbs |
| Width | 36-5/16 In |
Certifications
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
