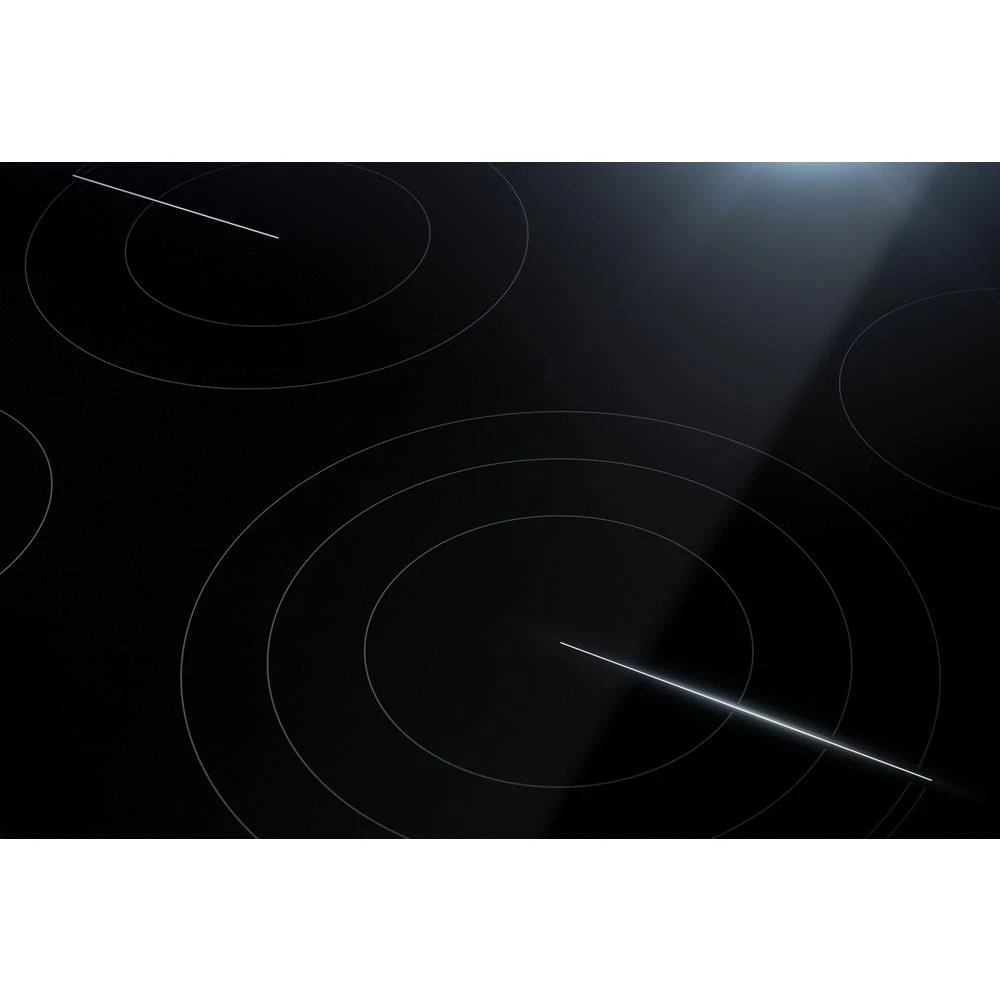

30" Oblivion Glass Electric Radiant Downdraft Cooktop with Tap Touch Controls - JED4430KB
30" Oblivion Glass Electric Radiant Downdraft Cooktop with Tap Touch Controls
Model: JED4430KB
30" Oblivion Glass Electric Radiant Downdraft Cooktop with Tap Touch Controls
Model: JED4430KB
Rebate AvailableColor : Black Glass
Current Rebates
Key Features
JX3 Downdraft Ventilation System with 3 Speeds
10"/6" Dual-Choice Element
9"/6" Dual-Choice Element
Available from Sorenson's Appliance & TV, serving customers throughout Minnesota.
Features
JX3 Downdraft Ventilation System with 3 Speeds
Developed and refined by JennAir, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.
10"/6" Dual-Choice Element
An electric element that features two element sizes at one position and has a maximum heat output of up to 3,000 watts for greater cooking flexibility.
9"/6" Dual-Choice Element
An electric element that features two element sizes at one position for greater cooking flexibility.
Specifications
Controls
| Control Location | Right Front |
| Control Type | Electronic Touch |
| Infinite Heat Controls | No |
Certifications
| ADA Compliant | Yes |
| UL | Yes |
| prop65 | Standard |
Electrical
| Power Cord Included | No |
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.44 ft³ |
| Dimensional Weight | 17.92 lbs. |
| Total of Cubes | 1.44 ft³ |
| Total of Dimensional Weight | 17.92 lbs. |
Cooktop Details
| Cooktop Surface Material | Ceramic Glass |
| Digital Display | Yes |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
Details
| Automatic Pan Detection | No |
| Cooktop Selections | Convertible to Duct Free Ventilation; DownDraft |
| Fuel Type | Electric Radiant |
| Installs Over Built-In Oven | No |
| LP Convertible | No |
| Number of Vent Speeds | 3 |
| Power Outage Compatible | No |
Dimensions
| carton depth | 26.38 |
| carton height | 23.78 |
| carton width | 35.12 |
| gross weight | 78 |
| net weight | 65.25 |
Element/Burner Details
| Cooktop Element Style | Radiant |
| Cooktop Type | Downdraft |
| Left Front Element-Burner Power | 3000W/1400W |
| Left Front Element-Burner Size | 10in./6in. |
| Left Front Element-Burner Type | Dual |
| Left Rear Element-Burner Power | 1, 300W |
| Left Rear Element-Burner Size | 6in. |
| Left Rear Element-Burner Type | Hyper |
| Number of Cooking Element-Burners | 4 |
| Power Boost | No |
| Right Front Element-Burner Power | 1200W |
| Right Front Element-Burner Size | 6in. |
| Right Front Element-Burner Type | Single |
| Right Rear Element-Burner Power | 3000W/1400W |
| Right Rear Element-Burner Size | 9in./6in. |
| Right Rear Element-Burner Type | Dual-Stacked Burner |
Ventilation Details
| CFM Motor Class | 310 |
| Downdraft Vent | Yes |
Dimensions & Weight
| Width | 30.88 in. |
| Height | 3.66 in. |
| Length | 22.06 in. |
| Weight | 78 lbs. |
| Carton Depth | 26 7/16 |
| Carton Height | 23 13/16 |
| Carton Width | 35 1/8 |
| Gross Weight | 78 |
| Minimum Height | 18 23/32 |
| Net Weight | 65.3 |
| Depth(IN,inches) | 22.0625 |
| Maximum Height(IN,inches) | 18.7500 |
| Net Weight(LB,pounds) | 65 |
| Carton Depth(IN,inches) | 26.4375 |
| Carton Height(IN,inches) | 23.8125 |
| Carton Width(IN,inches) | 35.1250 |
| Gross Weight(LB,pounds) | 78 |
| carton depth | 26.38 |
| carton height | 23.78 |
| carton width | 35.12 |
| gross weight | 78 |
| net weight | 65.25 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35.13 in. |
| Shipping Height | 23.81 in. |
| Shipping Length | 27.06 in. |
| Shipping Weight | 118 lbs. |
| Total of Shipping Weight | 118 lbs. |
| Source | Calculation |
