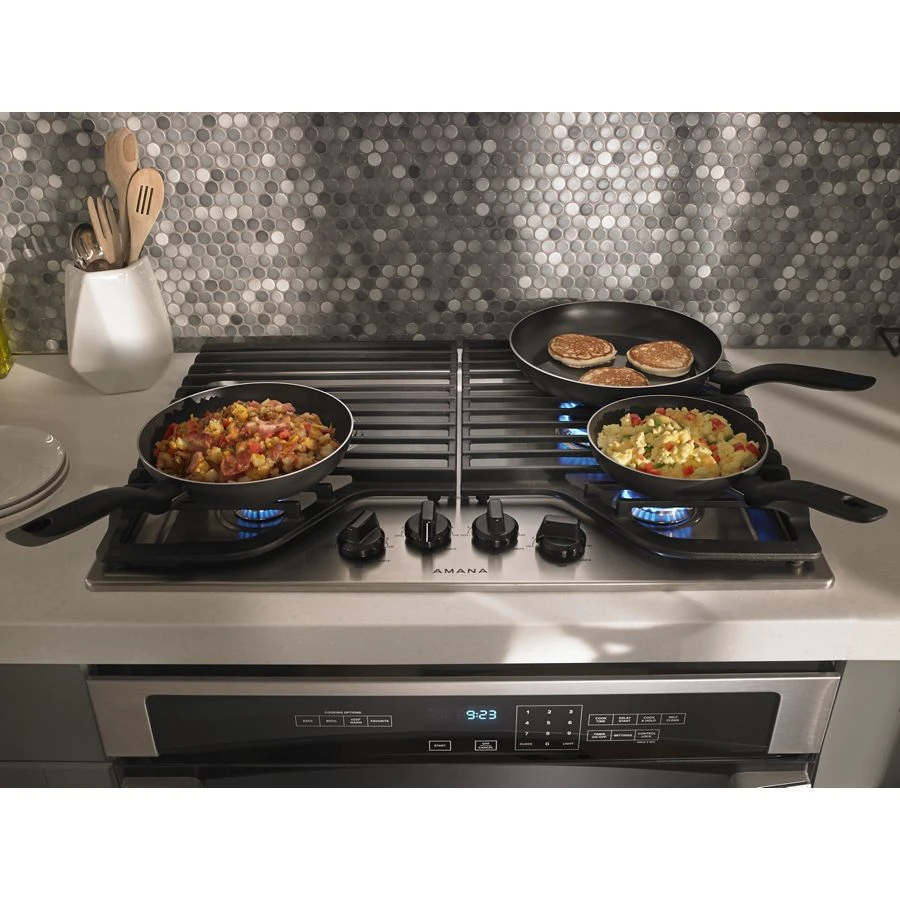

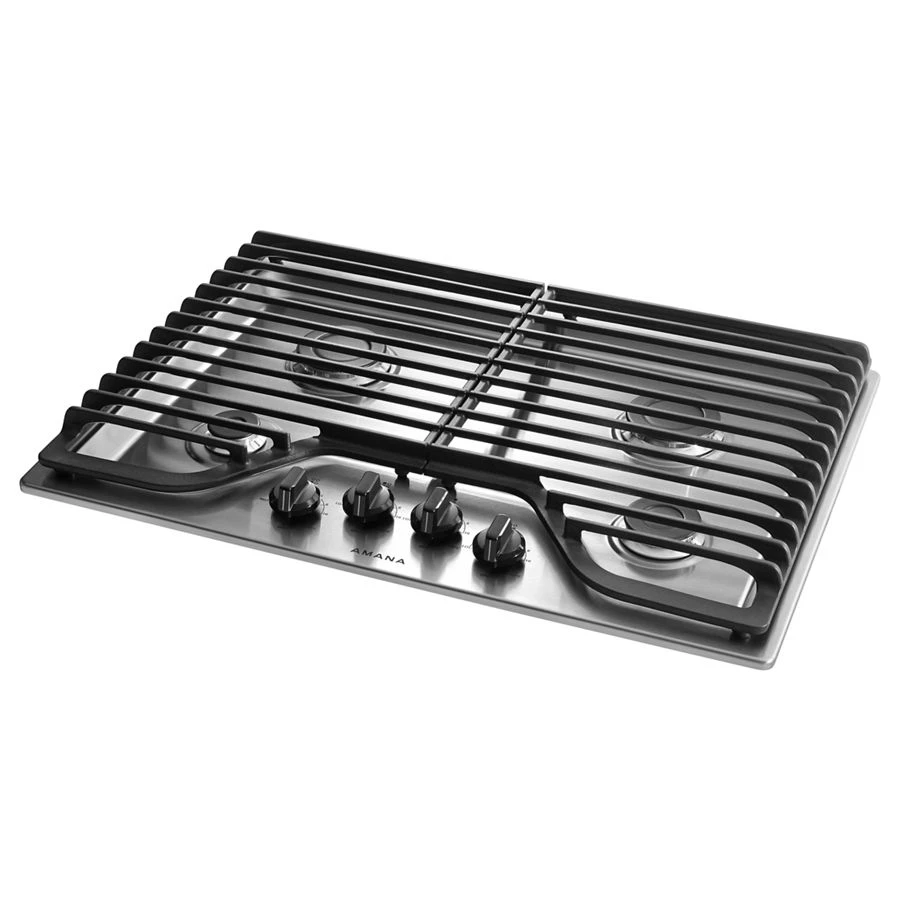

30-inch Gas Cooktop with 4 Burners - AGC6540KFS
30-inch Gas Cooktop with 4 Burners
Model: AGC6540KFS
30-inch Gas Cooktop with 4 Burners
Model: AGC6540KFS
Color : Stainless Steel
Key Features
4 Burners
Installs Over the Wall Oven
Front Controls
Sealed Burners
Dishwasher-Safe Grates and Knobs
LP Conversion Kit
ADA Compliant
Available from Sorenson's Appliance & TV, serving customers throughout Minnesota.
Features
4 Burners
Now dinner's a one and done deal. 4 burners with up to 12,000 BTUs help you fry, boil, simmer and melt all your dishes at the same time.

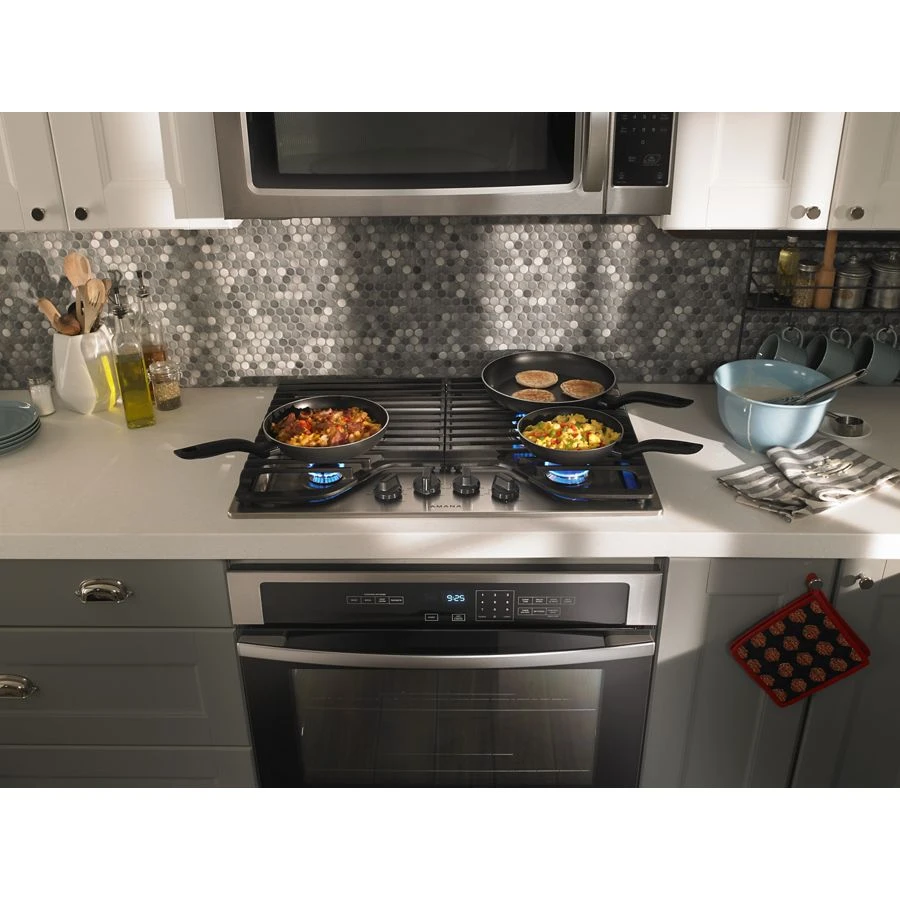

Installs Over the Wall Oven
This cooktop Installs Over the Wall Oven with ease, creating a complementary look for your kitchen.

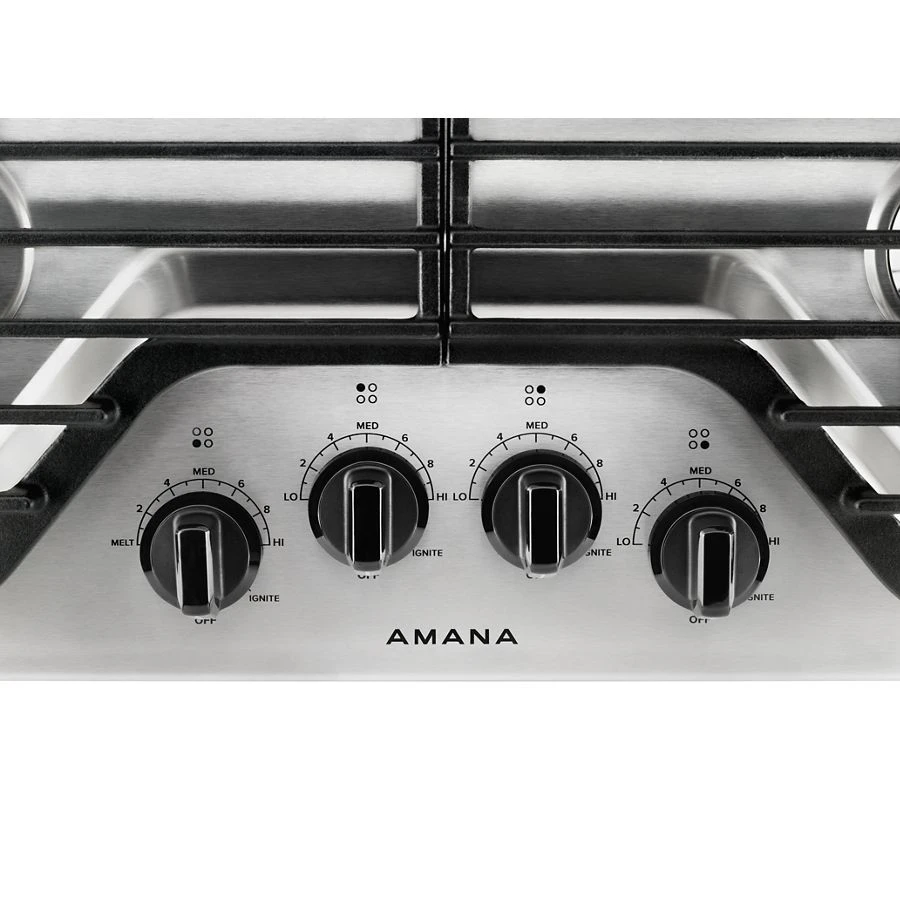

Front Controls
Easily accessible Front Controls let you turn up the heat just how you like it.
Sealed Burners
Don't sweat the small spills. Sealed Burners make cleanup easy by limiting spills from dripping beneath the cooktop.
Dishwasher-Safe Grates and Knobs
Put away the sponge. These Dishwasher-Safe Grates and Knobs let the dishwasher do the dirty work.
LP Conversion Kit
This LP conversion kit converts your cooktop for use with propane gas.
ADA Compliant
Models with this feature meet standards set by the Americans with Disabilities Act when installed in compliance with current ADA standards.
Specifications
Description
| Combinations with Oven | AWO6313, AWO6317 |
| Cooktop Type | Standard |
| Fuel Type | Gas |
| Size (in.) | 30 |
Controls
| Control Location | Front |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Knob Color | Color Coordinated/Black on Stainless |
| Knob Type | Dishwasher-Safe Plastic |
Features
| Automatic Pan Detection | No |
| Digital Display | No |
| Downdraft Vent | No |
| Griddle | Optional Accessory |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Installs Over Built-In Oven | Yes |
| LP Convertible | Yes - Kit Included |
| Power Boost | No |
| Power Outage Compatible | Yes |
Cooktop Details
| Cooktop Element Style | Sealed Burner |
| Cooktop Surface Color | Color Coordinated |
| Ignition Type | Direct Spark Ignition |
| Number of Cooking Element-Burners | 4 |
| Number of Open Bays | N/A |
| Left Front Element-Burner Power | 5, 000 BTU |
| Left Front Element-Burner Type | Simmer |
| Left Rear Element-Burner Power | 12, 000 BTU |
| Left Rear Element-Burner Type | SpeedHeat™ |
| Right Front Element-Burner Power | 9, 100 BTU |
| Right Front Element-Burner Type | Sealed Burner |
| Right Rear Element-Burner Power | 12, 000 BTU |
| Right Rear Element-Burner Type | Sealed Burner |
| Grate Details | Cast Iron Grates, Continuous, Dishwasher Safe, Gloss Finish |
| Number of Grates | 2 |
Details
| Cooktop Surface Material | Stainless/Porcelain Coated Steel |
Certifications
| ADA Compliant | ADA Height and Side and Front Reach Compliant |
| Prop 65 | Standard |
| UL | Yes |
Electrical
| Amps | 15 |
| Hz | 60 |
| Power Cord Included | Yes |
| Volts | 120 |
Specifications
| Accessory Relationships | Yes |
Dimensions & Weight
| Width | 30 in. |
| Height | 4.13 in. |
| Length | 21 in. |
| Weight | 34 lbs. |
| Carton Depth | 25 |
| Carton Height | 12 1/16 |
| Carton Width | 34 13/16 |
| Cutout Depth (in) | 19 1/2 |
| Cutout Width (in) | 28 7/8 |
| Gross Weight | 40 |
| Maximum Height | 4 1/8 |
| Minimum Height | 3 3/8 |
| Net Weight | 34.0 |
| Cutout Depth Max(IN,inches) | 20.0000 |
| Cutout Depth Min(IN,inches) | 19.0000 |
| Cutout Depth(IN,inches) | 19.5000 |
| Cutout Width Max(IN,inches) | 29.3125 |
| Cutout Width Min(IN,inches) | 28.5000 |
| Cutout Width(IN,inches) | 28.8750 |
| Maximum Height(IN,inches) | 4.1250 |
| Minimum Height(IN,inches) | 3.3750 |
| Net Weight(LB,pounds) | 34 |
| Carton Depth(IN,inches) | 25.0000 |
| Carton Height(IN,inches) | 12.0625 |
| Carton Width(IN,inches) | 34.8125 |
| Gross Weight(LB,pounds) | 40 |
| Width | 30 in. |
| Height | 4.13 in. |
| Length | 21 in. |
| Weight | 34 lbs. |
| Carton Depth | 25 |
| Carton Height | 12 1/16 |
| Carton Width | 34 13/16 |
| Cutout Depth (in) | 19 1/2 |
| Cutout Width (in) | 28 7/8 |
| Gross Weight | 40 |
| Maximum Height | 4 1/8 |
| Minimum Height | 3 3/8 |
| Net Weight | 34.0 |
| Cutout Depth Max(IN,inches) | 20.0000 |
| Cutout Depth Min(IN,inches) | 19.0000 |
| Cutout Depth(IN,inches) | 19.5000 |
| Cutout Width Max(IN,inches) | 29.3125 |
| Cutout Width Min(IN,inches) | 28.5000 |
| Cutout Width(IN,inches) | 28.8750 |
| Maximum Height(IN,inches) | 4.1250 |
| Minimum Height(IN,inches) | 3.3750 |
| Net Weight(LB,pounds) | 34 |
| Carton Depth(IN,inches) | 25.0000 |
| Carton Height(IN,inches) | 12.0625 |
| Carton Width(IN,inches) | 34.8125 |
| Gross Weight(LB,pounds) | 40 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 9.13 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 74 lbs. |
| Total of Shipping Weight | 74 lbs. |
| Source | Calculation |
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 9.13 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 74 lbs. |
| Total of Shipping Weight | 74 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.51 ft³ |
| Dimensional Weight | 18.72 lbs. |
| Total of Cubes | 1.51 ft³ |
| Total of Dimensional Weight | 18.72 lbs. |
| Cubic Feet Measurement | 1.5 ft³ |
| Dimensional Weight | 18.7 lbs. |
| Total of Cubes | 1.5 ft³ |
| Total of Dimensional Weight | 18.7 lbs. |
