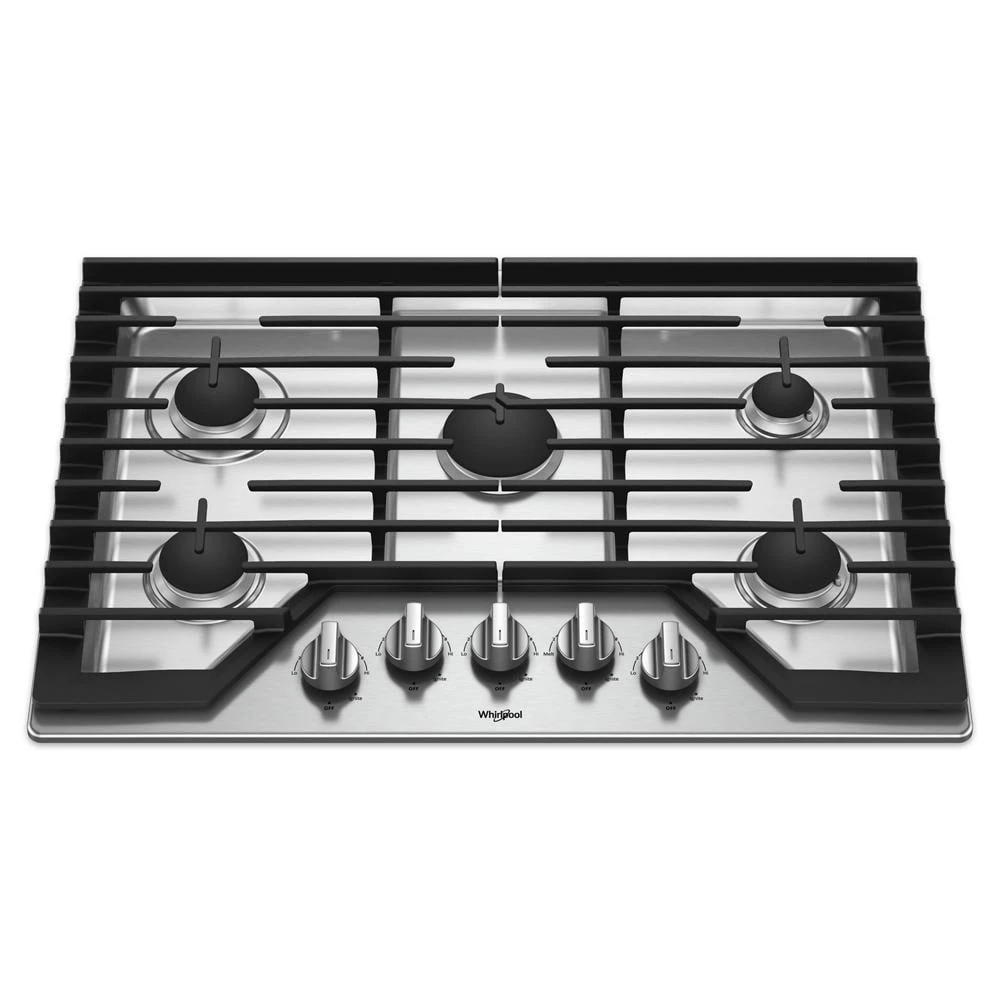

30-inch Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates - WCG77US0HS

30-inch Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates

Model: WCG77US0HS

30-inch Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates WCG77US0HS30-inch Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates WCG77US0HS30-inch Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates WCG77US0HS30-inch Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates WCG77US0HS30-inch Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates WCG77US0HS30-inch Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates WCG77US0HS30-inch Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates WCG77US0HS30-inch Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates WCG77US0HS
30-inch Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates WCG77US0HS
30-inch Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates WCG77US0HS
30-inch Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates WCG77US0HS
30-inch Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates WCG77US0HS
30-inch Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates WCG77US0HS
+3more

Color : Stainless Steel

30-inch Gas Cooktop with EZ-2-Lift Hinged Cast-Iron Grates WCG77US0HS
Stainless Steel

Only 1 left in stock, order soon! - at *Geneva

Key Features

  • EZ-2-Lift Hinged Cast-Iron Grates

  • Upswept SpillGuard Cooktop

  • SpeedHeat Burner

  • AccuSimmer Burner

  • Fifth Burner

  • Sealed Burners

  • Full Width Grates

  • Dishwasher-Safe Knobs

Read More

Available from Sorenson's Appliance & TV, serving customers throughout Minnesota.

Features
Specifications

Features

EZ-2-Lift Hinged Cast-Iron Grates

Get quick access to spills on the cooktop with our industry-first EZ-2-Lift Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without removing them. For a more thorough clean, the grates are also dishwasher safe.

Upswept SpillGuard Cooktop

Clean up faster with a cooktop that has raised edges to help contain spills.

SpeedHeat Burner

Get dinner to the table fast with this burner that generates the high heat needed to sear and boil quickly.

AccuSimmer Burner

Easily maintain low, even heat when cooking sauces and soups with the AccuSimmer Burner, which reduces power for better control at lower temperatures.

Fifth Burner

Make sure everyone gets their favorite with an extra, Fifth Burner that gives you more room to choose the right one for the dish.

Sealed Burners

Cut down on cleanup with burners that are sealed to prevent food from falling into them.

Full Width Grates

Maximize space with cast-iron grates that extend across the entire cooktop, giving you the flexibility to place pots and pans anywhere.

Dishwasher-Safe Knobs

Make cleanup easy by washing knobs right in the dishwasher.

Wall Oven Compatible

Install this cooktop to work with a wall oven or on its own for more flexibility.

Specifications

Description

Combinations with OvenWOS31ES0, WOS31ES7, WOS51EC0, WOS51EC7, WOS52EM4, WOS72EC0, WOS72EC7
Cooktop TypeStandard
Fuel TypeGas
Size (in.)30

Controls

Control LocationFront
Control TypeKnobs
Infinite Heat ControlsYes
Knob ColorColor Coordinated
Knob TypeDishwasher-Safe Plastic

Features

Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
GriddleOptional Accessory
Heating Element On Indicator LightNo
Hot Surface Indicator LightNo
Installs Over Built-In OvenYes
LP ConvertibleYes - Kit Included
Power BoostNo
Power Outage CompatibleYes

Cooktop Details

Cooktop Element StyleSealed Burner
Cooktop Surface ColorColor Coordinated
Ignition TypeDirect Spark Ignition
Number of Cooking Element-Burners5
Number of Open BaysN/A
Center Front Element-Burner Power15, 000 BTU
Center Front Element-Burner TypeSpeedHeat
Left Front Element-Burner Power9, 100 BTU
Left Front Element-Burner TypeSimmer
Left Rear Element-Burner Power9, 100 BTU
Left Rear Element-Burner TypeSealed Burner
Right Front Element-Burner Power10, 000 BTU
Right Front Element-Burner TypeSpeedHeat™
Right Rear Element-Burner Power5, 000 BTU
Right Rear Element-Burner TypeSimmer
Grate DetailsCast Iron Grates, Continuous with Hinge, Dishwasher Safe, Matte Finish
Number of Grates2

Details

Cooktop Surface MaterialStainless/Porcelain Coated Steel

Certifications

ADA CompliantADA Height and Side Reach Compliant
Prop 65Standard
ULYes

Electrical

Amps15
Hz60
Power Cord IncludedYes
Volts120

Specifications

Accessory RelationshipsYes

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.5 ft³
Dimensional Weight18.7 lbs.
Total of Cubes1.5 ft³
Total of Dimensional Weight18.7 lbs.

Dimensions & Weight

Width30 in.
Height4.13 in.
Length21 in.
Weight52 lbs.
Carton Depth34 1/2
Carton Height12 1/2
Carton Width25
Cutout Depth (in)19 1/2
Cutout Width (in)28 7/8
Gross Weight52
Maximum Height4 1/8
Minimum Height3 3/8
Net Weight42.8
Cutout Depth Max(IN,inches)20.0000
Cutout Depth Min(IN,inches)19.0000
Cutout Depth(IN,inches)19.5000
Cutout Width Max(IN,inches)29.3125
Cutout Width Min(IN,inches)28.5000
Cutout Width(IN,inches)28.8750
Maximum Height(IN,inches)4.1250
Minimum Height(IN,inches)3.3750
Net Weight(LB,pounds)43
Carton Depth(IN,inches)34.5000
Carton Height(IN,inches)12.5000
Carton Width(IN,inches)25.0000
Gross Weight(LB,pounds)52

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width25 in.
Shipping Height12.5 in.
Shipping Length26 in.
Shipping Weight92 lbs.
Total of Shipping Weight92 lbs.
SourceCalculation
