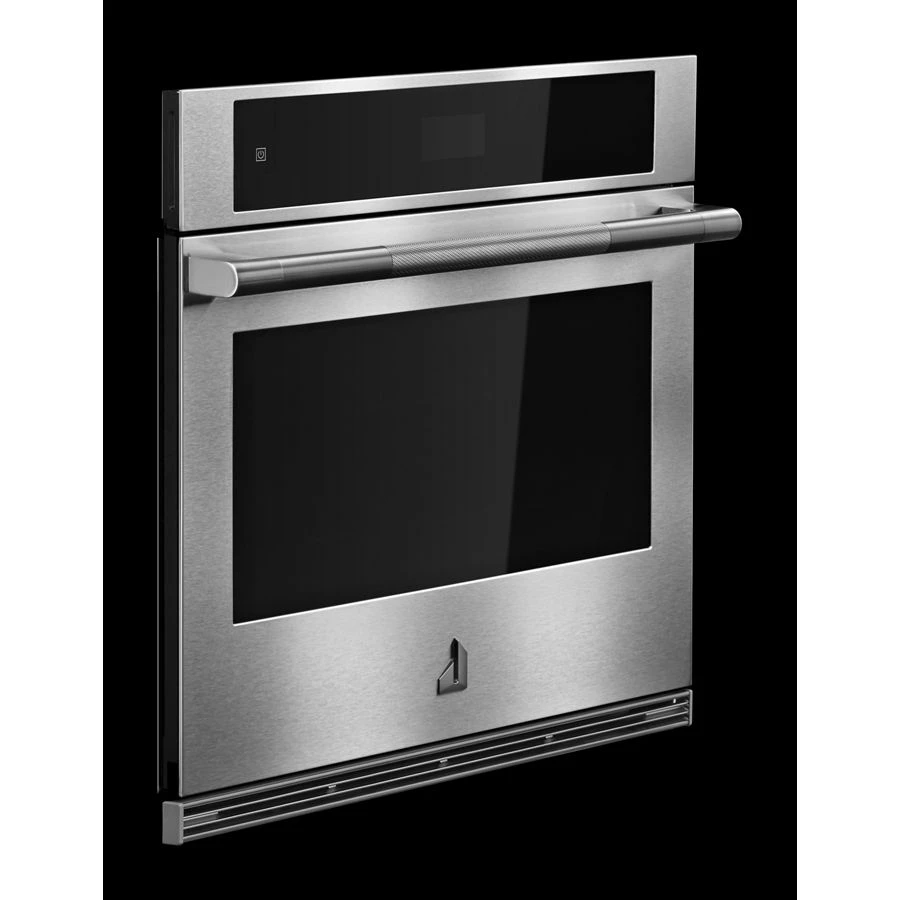

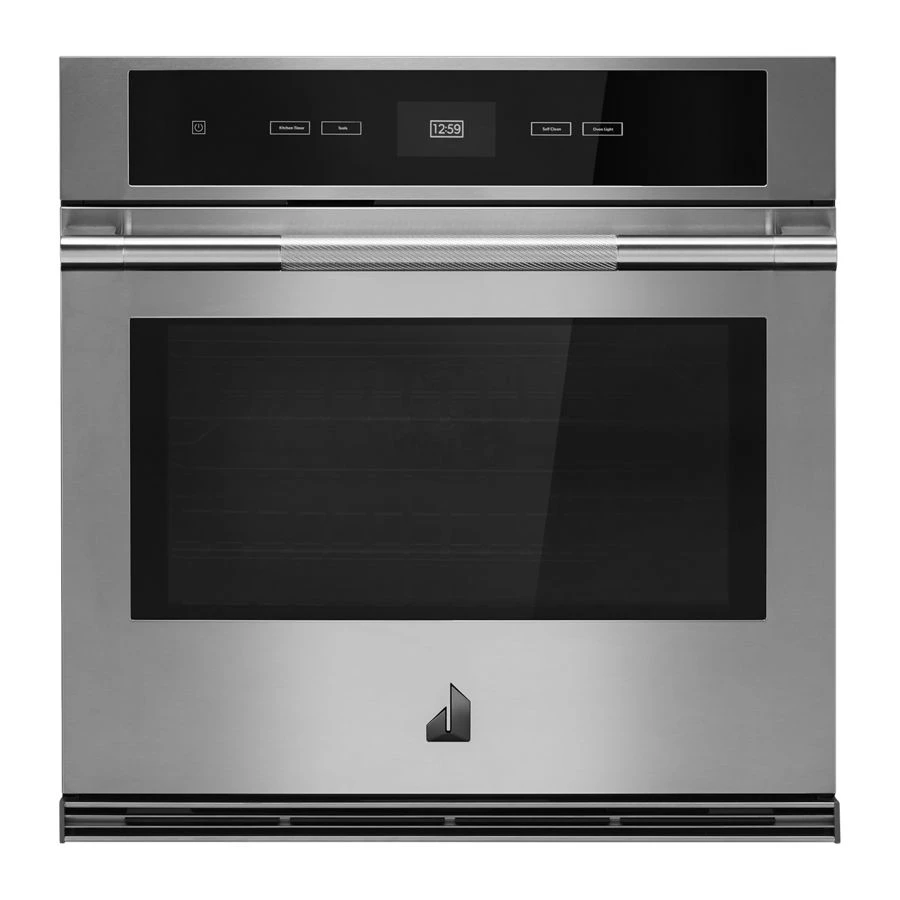

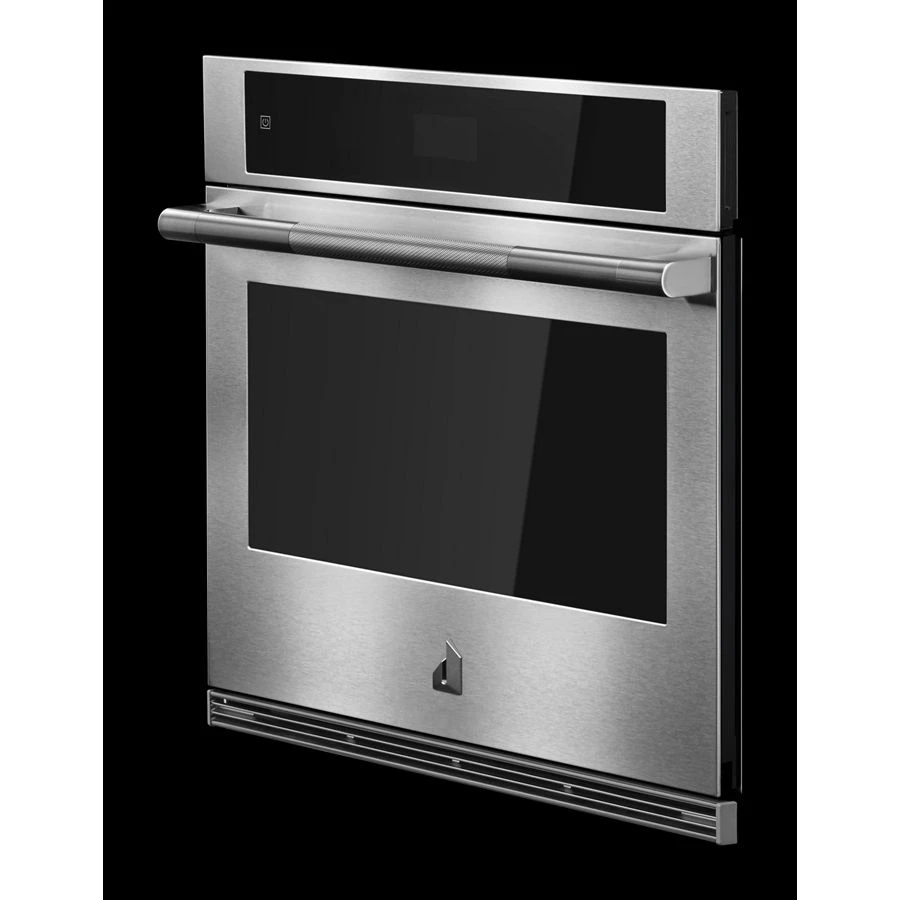

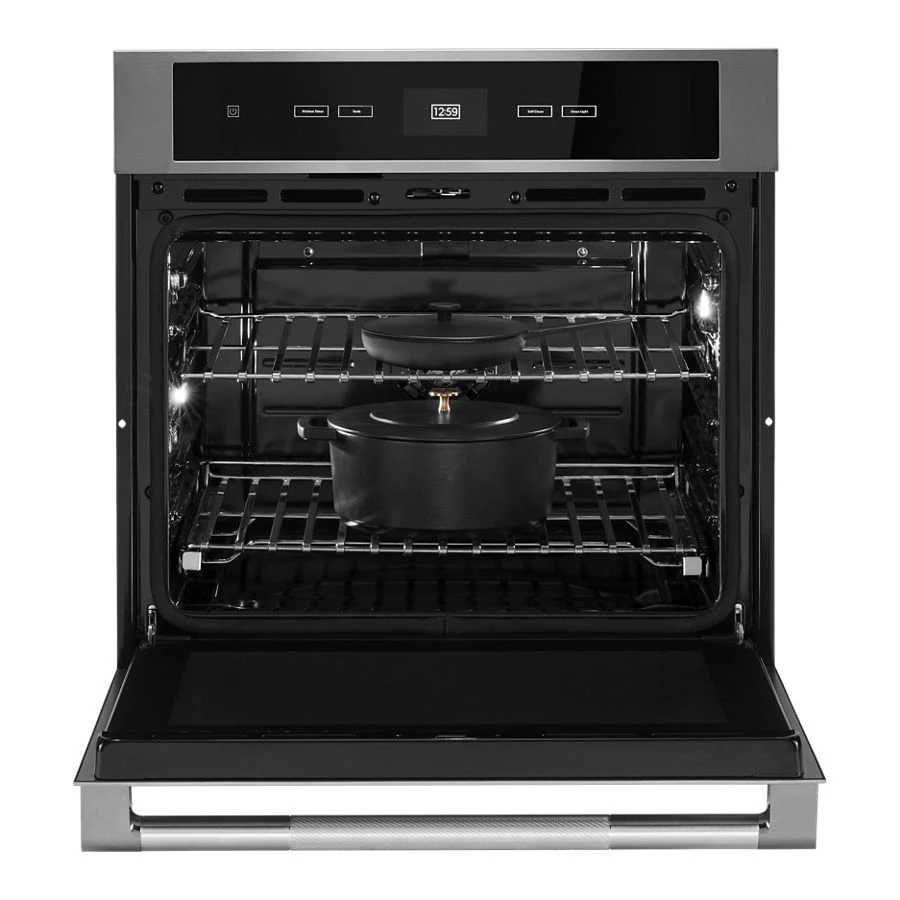

RISE™ 30" Single Wall Oven - JJW2430LL
RISE™ 30" Single Wall Oven
Model: JJW2430LL














RISE™ 30" Single Wall Oven
Model: JJW2430LL
Current Rebates
Key Features
MultiMode® Convection System
2,800-Watt Hidden Bake Element
Temperature Probe
Glide Rack
4.3-Inch Full Color LCD Display
JennAir® Culinary Center
3,200-Watt Convection Element
8-Pass Reflective Broil Element
Documents
Available from Sorenson's Appliance & TV, serving customers throughout Minnesota.
Features
MultiMode® Convection System
Steady heat is circulated by whirling metal blades, weaving around every flat tine. Wield your cooking prowess from marbled meats to succulent roasts.
2,800-Watt Hidden Bake Element
Unleash hidden power. This 2,800-watt bake element is concealed beneath the oven floor, providing even heat and a smooth surface that is easy to clean.
Temperature Probe
Know when dinner is done without ever opening the door. Four points of contact deliver temperature readings visible on the LCD screen.
Glide Rack
Smooth moves. Glides in and out fluidly and quietly, even when fully loaded.

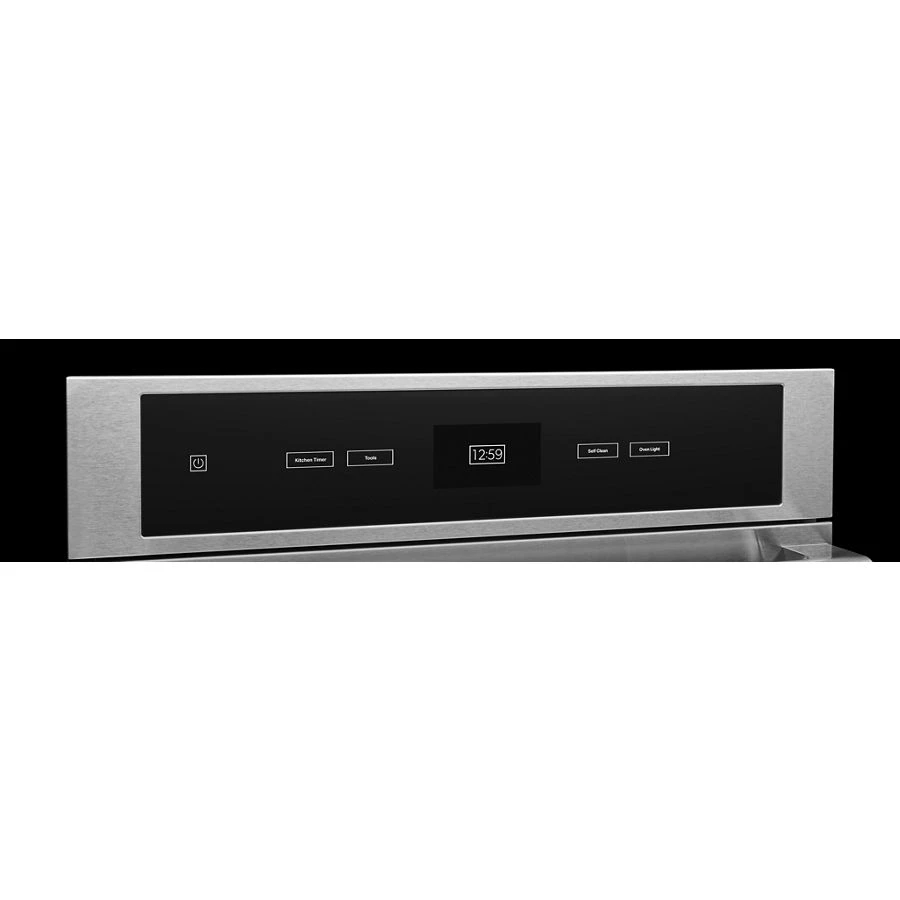

4.3-Inch Full Color LCD Display
A highly interactive, full-color LCD touchscreen is packed with dynamic features that allow you to navigate effortlessly through settings and cooking options including temperature and cooking mode.
JennAir® Culinary Center
With step-by-step support, savor the full culinary experience backed by customized algorithms, featuring full-color food photography, doneness levels, pan types and menu-specific tips.
3,200-Watt Convection Element
Power, controlled. Evenly bake breads and cook main dishes in a controlled environment powered by this 3,200-watt convection element.
8-Pass Reflective Broil Element
Maximum coverage. Even heat distribution. Beneath a stainless steel broil plate, this element radiates heat back onto cookware and food.
Quieter Than the Leading Luxury Wall Oven Brand
4,000-Watt Broil Element
Tap into high-watt, even heat designed to broil meats with this 4,000-watt element for savory, caramelized crust.
Manual Convection Modes
Select from presets like Convect Bake, Convect Roast and Convect Broil to let the cooking method guide you.
Auto Convection Modes
Savor taste that leaves you wanting more. Choose your food type, and temperature and airflow automatically adjust for baking, broiling or roasting.
Auto Convection Conversion
Bake with abandon. The oven automatically converts temperature and cook time to make any recipe a convection recipe.
Keep Warm™ Option
Reward anticipation. Low heat keeps tempting dishes ready and waiting for the right moment.
Rapid Preheat
Reduce preheat time while baking on a single oven rack.
Proofing Option
Low, consistent heat protects dough from temperature swings for an even, more rapid rise than at room temperature.
Control Lock
Control Lock prevents unintended use of the oven and ensures complete, simple cleaning of the controls.
Sabbath Mode
Select this function to bypass the oven’s automatic shutoff when observing the Sabbath and other religious holidays.
Specifications
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Other
| Capacity(FT3,cubic feet) | 5.00 |
| Capacity(FT3,cubic feet) | 5.00 |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 20.09 ft³ |
| Dimensional Weight | 249.78 lbs. |
| Total of Cubes | 20.09 ft³ |
| Total of Dimensional Weight | 249.78 lbs. |
Dimensions & Weight
| Width | 35 in. |
| Height | 32 in. |
| Length | 31 in. |
| Weight | 175 lbs. |
| Carton Depth | 31 |
| Carton Height | 32 |
| Carton Width | 35 |
| Cutout Depth (in) | 24 |
| Cutout Height (in) | 29 7/16 |
| Cutout Width (in) | 28 1/2 |
| Depth Closed Excluding Handles | 24 5/16 |
| Depth Closed Including Handles | 27 1/8 |
| Depth Excluding Doors | 23 |
| Depth With Door Open 90 Degree | 45 7/16 |
| Gross Weight | 175 |
| Net Weight | 157.0 |
| Gross Weight | 175 |
| Cutout Depth(IN,inches) | 24.0000 |
| Cutout Height(IN,inches) | 29.4375 |
| Cutout Width(IN,inches) | 28.5000 |
| Depth Closed Excluding Handles(IN,inches) | 24.3125 |
| Depth Closed Including Handles(IN,inches) | 27.1250 |
| Depth Excluding Doors(IN,inches) | 23.0000 |
| Depth With Door Open 90 Degree(IN,inches) | 45.4375 |
| Depth(IN,inches) | 23.2500 |
| Carton Depth(IN,inches) | 31.0000 |
| Carton Height(IN,inches) | 32.0000 |
| Carton Width(IN,inches) | 35.0000 |
| Cutout Height Min(IN,inches) | 29.4375 |
| Cutout Depth | 24 |
| Cutout Height | 29.438 |
| Cutout Width | 28.5 |
| Depth Closed Excluding Handles | 24.313 |
| Depth Closed Including Handles | 27.125 |
| Depth Excluding Doors | 23 |
| Depth With Door Open 90 Degree | 45.438 |
| Oven Interior Depth | 19 |
| Oven Interior Height | 18 |
| Oven Interior Width | 25 |
| carton depth | 31 |
| carton height | 32 |
| carton width | 35 |
| gross weight | 175 |
| net weight | 157 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 32 in. |
| Shipping Length | 36 in. |
| Shipping Weight | 215 lbs. |
| Total of Shipping Weight | 215 lbs. |
| Source | Calculation |
Details
| Convection Element Type | Single Fan |
| Delay Clean | Yes |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| Oven Automatic Shut-Off | Yes |
| Oven Configuration | Single Oven |
| Oven Type | Single |
| Power On Indicator Light | Yes |
| Cooktop Combinations | Jec3430, Jec3536, Jec4424, Jec4430, Jec4536, Jgc1530, Jgc1536, Jgc2530, Jgc2536, Jgc7530, Jgc7636, Jic4430, Jic4530, Jic4536, Jic4715g, Jic4715gs, Jie4115gs |
| Design Expression | Rise™ |
| Oven Selections | Assisted Cooking, Audible Signal, Bake, Broil, Cancel/off, Clock, Control Lock, Cook Time Indicator, Cook And Hold, Delay Start, Favorites, Language Conversion, Proofing, Rapid Preheat, Sabba |
Oven Cavity Details
| Convection Element Type | Single Fan |
| Convection Functions | Bake Broil Roast Upper |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | Yes |
| Interior Coating | Porcelain |
| Interior Color | Black |
| Light Type | Halogen |
| Number of Broil Elements | 1 |

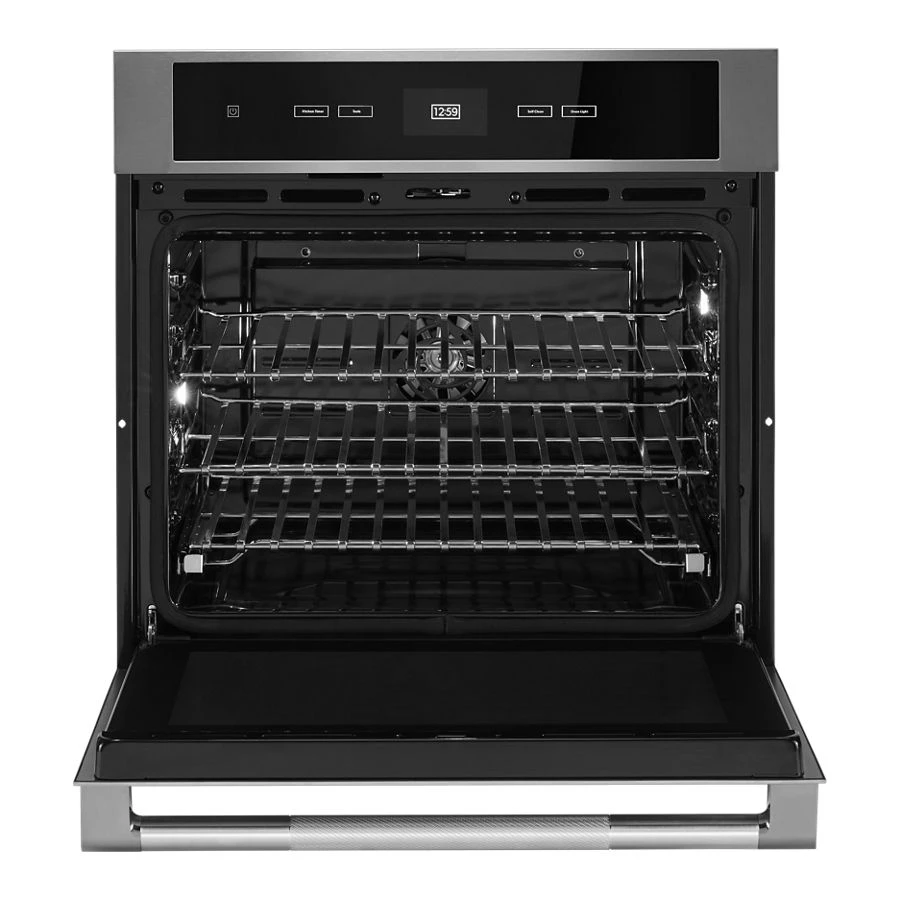

| Number of Oven Racks | 3 |
| Number of Bake Elements | 1 |
| Number of Rack Guides | 6 |
| Self-Cleaning Oven Racks | No |
| Bake Element Power | 2,800 W/2,427w |
| Broiler Element Power | 4,000 W |
| Broiler Location | Top Of Oven |
| Convection Element Power | 3,200 W |
| Oven Cleaning Type | Self-cleaning |
| Oven Cooking System | Multimode® True Convection |
Exterior Details
| Door Type | Metal & Glass |
| Door Lock | Yes |
| Handle Color | Stainless Steel |

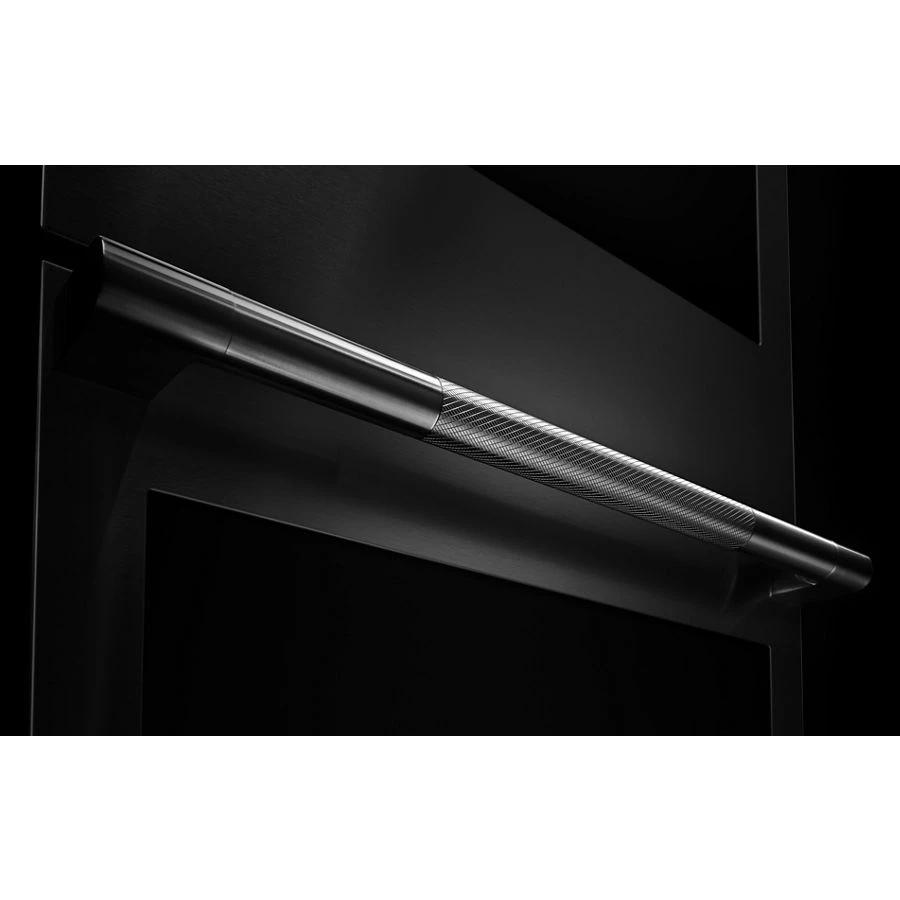

| Handle Material | Stainless Steel |
Certifications
| CUL | Yes |
| UL | Yes |
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
| ADA Compliant | Ada Height And Side And Front Reach Compliant, Ada Height And Side And Front Reach Compliant |
| Star K Certified | Yes, Yes |
Smart Compatibility
| Connectivity | No |
| Works With | No |
Controls
| Control Type | Tap Touch |
| Display Color | Full Color |
| Light Control | Oven Light Touch Pad |
| Electronic Display Type | 4.3-inch Full Color Lcd |
| Language Conversion | English/french |
Electrical
| Amps | 20 |
| Hz | 60 |
| Power Cord Included | No |
| Volts | 240 |
| Watts | 4 |

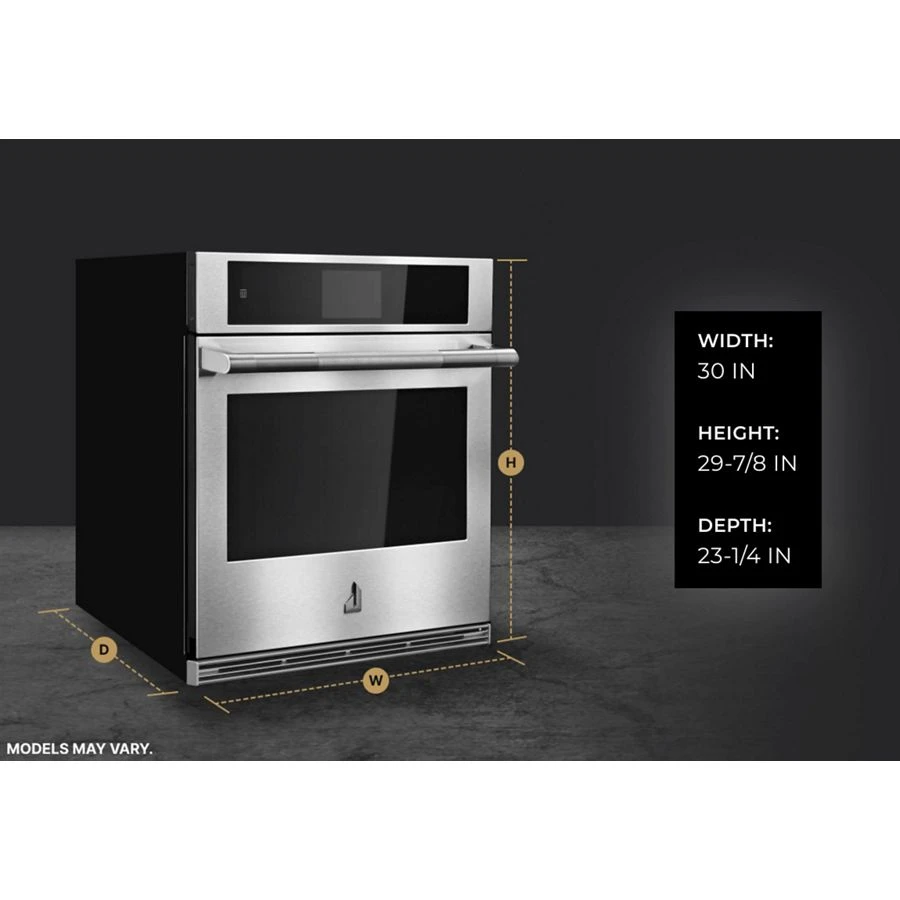

Dimensions
| Capacity | 5 Cu. Ft. |
| Common Size | 30 In |
| Cutout Depth | 24 In |
| Depth Excluding Doors | 23 In |
| Gross Weight | 175 Lbs |
| Net Weight | 157 Lbs |
| Oven Interior Depth | 19 In |
| Oven Interior Height | 18 In |
| Oven Interior Width | 25 In |
| Width | 30 In |
| Cutout Height | 29.438 In |
| Cutout Width | 28.5 In |
| Depth | 23.25 In |
| Depth Closed Excluding Handles | 24.313 In |
| Depth Closed Including Handles | 27.125 In |
| Depth With Door Open 90 Degree | 45.438 In |
| Height | 29.875 In |
