19 Cu. Ft. 30-inch Width Full Depth Non Dispense Bottom Mount Refrigerator - KRBL109ESS

KitchenAidKitchenAid brand logo
This product has been discontinued by the manufacture and is no longer available.

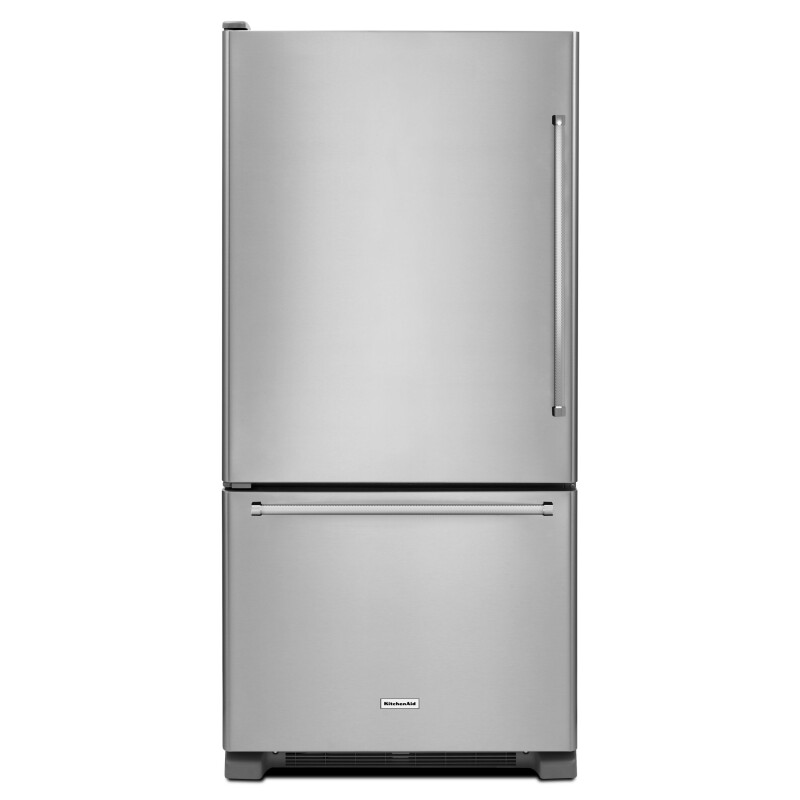

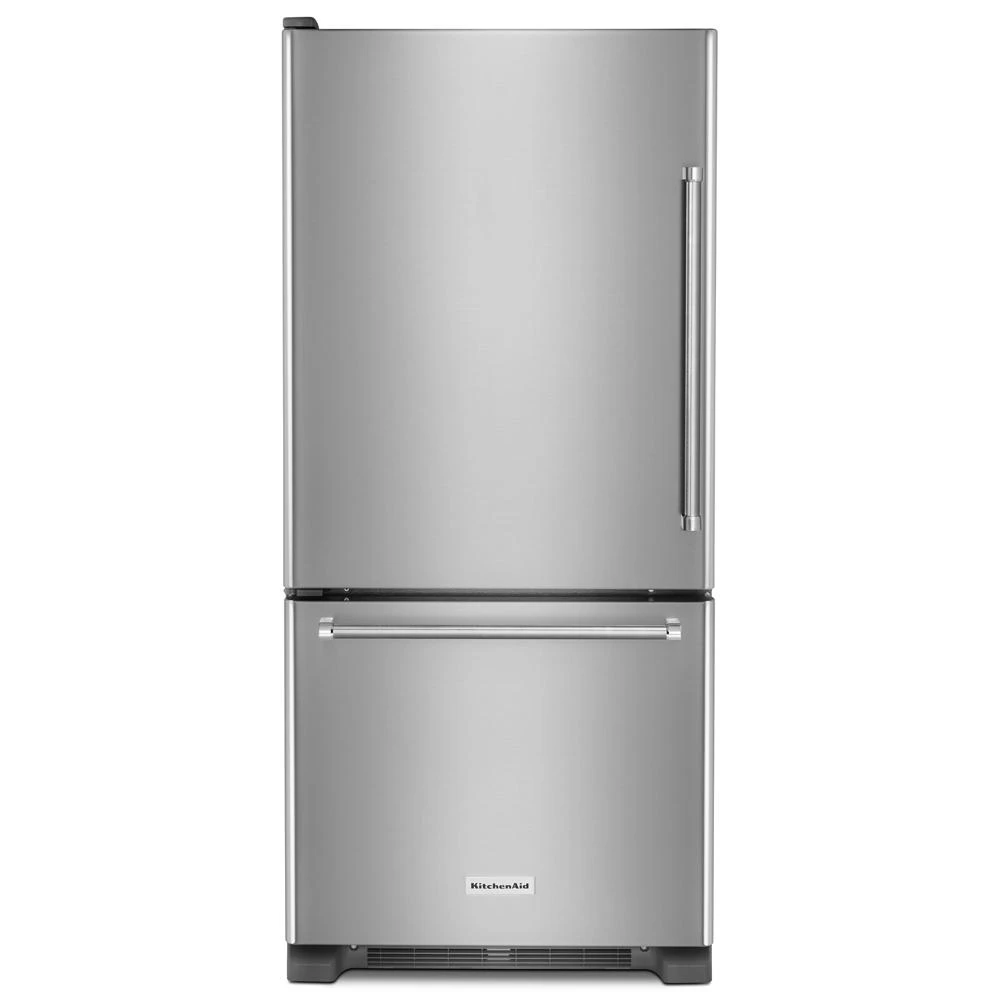

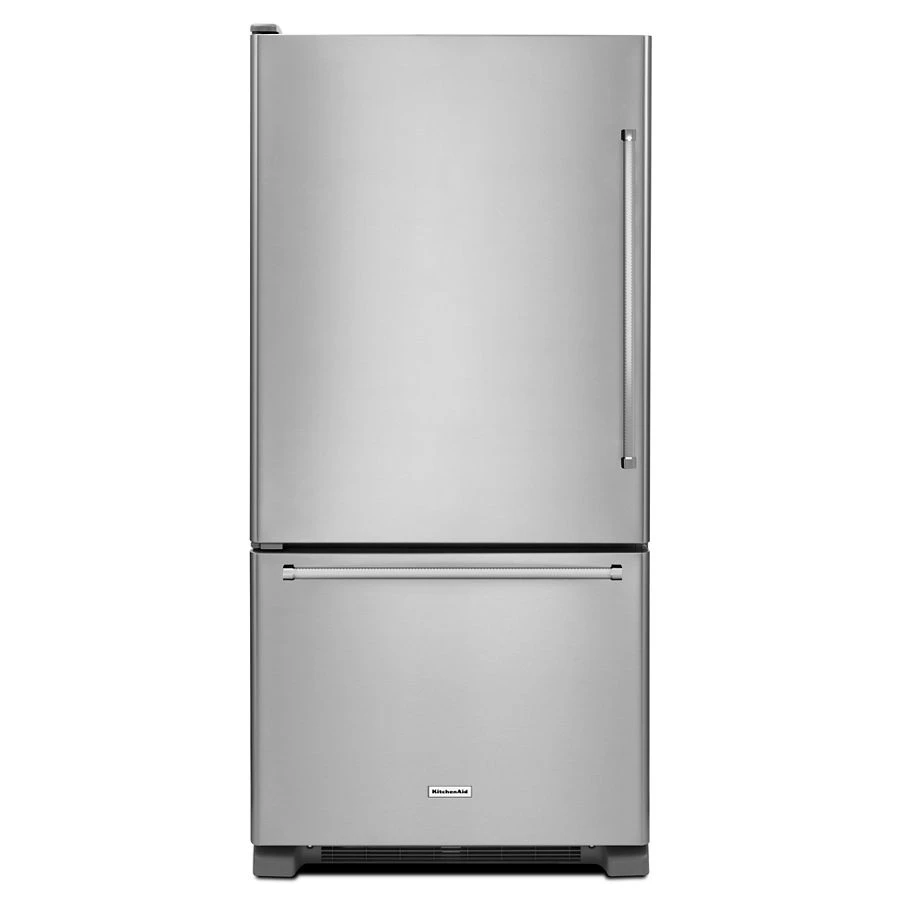

19 Cu. Ft. 30-inch Width Full Depth Non Dispense Bottom Mount Refrigerator

Model: KRBL109ESS

19 Cu. Ft. 30-inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBL109ESS19 Cu. Ft. 30-inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBL109ESS19 Cu. Ft. 30-inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBL109ESS19 Cu. Ft. 30-inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBL109ESS19 Cu. Ft. 30-inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBL109ESS
19 Cu. Ft. 30-inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBL109ESS
19 Cu. Ft. 30-inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBL109ESS
19 Cu. Ft. 30-inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBL109ESS
19 Cu. Ft. 30-inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBL109ESS
19 Cu. Ft. 30-inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBL109ESS

Color : Stainless Steel

19 Cu. Ft. 30-inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBL109ESS
Stainless Steel

Key Features

  • Produce Preserver

  • ExtendFresh™ Temperature Management System

Description

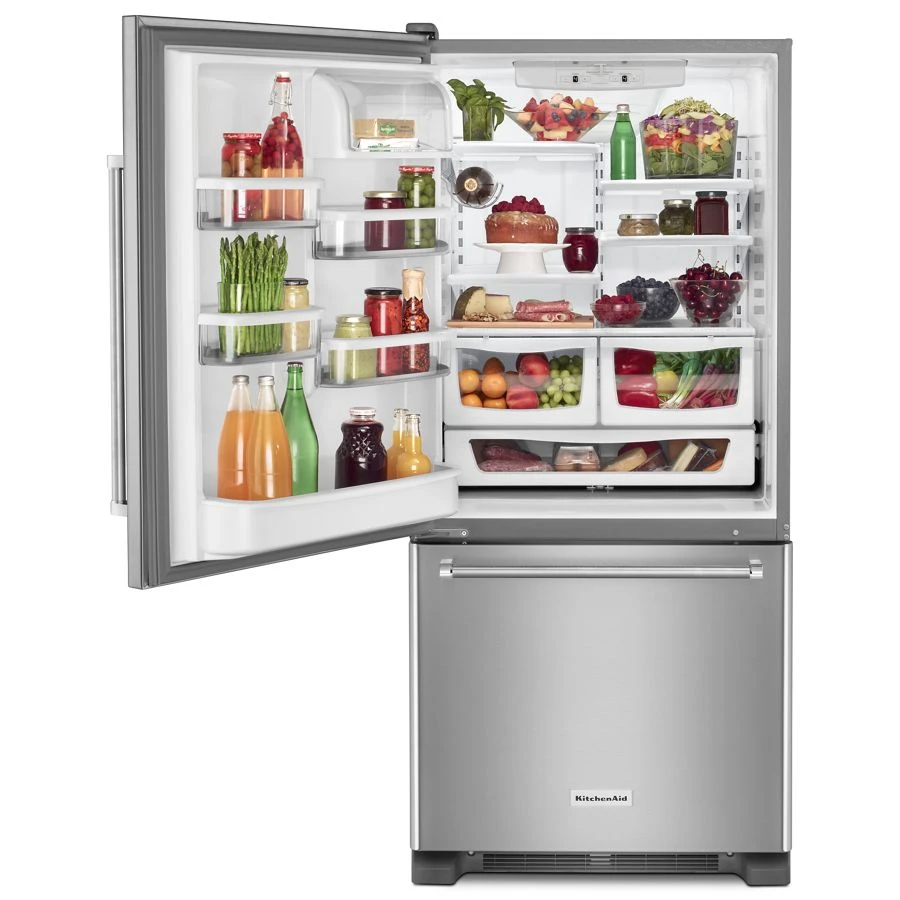

This striking 19 cubic foot refrigerator comes with the ExtendFresh™ Temperature Management System and Produce Preserver to help maintain the taste and texture of your freshest food. LED lighting throughout the refrigerator makes food easy to find on every level.
Read More

Available from Sorenson's Appliance & TV, serving customers throughout Minnesota.

Features
Specifications

Features

Produce Preserver

Absorbs ethylene gas emitted by many fruits and vegetables, causing them to over ripen. By removing ethylene, the produce preserver helps extend freshness.

ExtendFresh™ Temperature Management System

Separately monitors the temperatures in the refrigerator and freezer through a sensor located in each, to help ensure fresh fruit juices don't become frozen and prawns avoid freezer burn.

Specifications

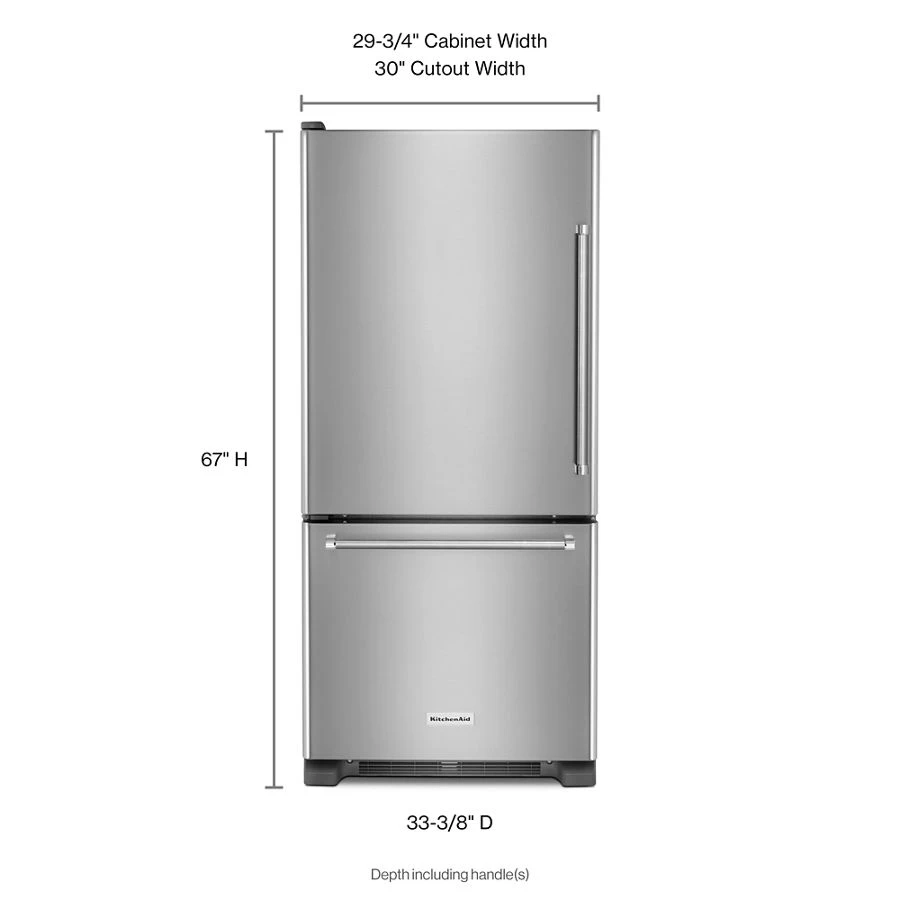

Dimensions

Capacity(FT3,cubic feet)18.67
Depth Closed Excluding Handles(IN,inches)30.8750
Depth Excluding Doors(IN,inches)28.1250
Depth With Door Open 90 Degree(IN,inches)59.0000
Height To Top Of Cabinet(IN,inches)65.5000
Common Size30 in
Cutout Height67 in
Cutout Width30 in
Depth With Door Open 90 Degree59 in
Freezer Capacity Volume5.73 cu. ft.
Height To Top Of Door Hinge67 in
Net Weight0 lbs
Cabinet Width29.625 in
Capacity18.67 cu. ft.
Depth33.375 in
Depth Closed Excluding Handles30.875 in
Depth Closed Including Handles33.375 in
Depth Excluding Doors28.125 in
Gross Weight240 lbs
Height67 in
Height To Top Of Cabinet65.5 in
Minimum Height65.5 in
Width29.75 in
Refrigerator Capacity Volume12.94, 12.94

Controls

Automatic DefrostYes
Control LocationInterior Up Front
Control LockoutNo
Door Ajar/Open AlarmNo
LCD Touch ScreenNo
Max Cool/Fast CoolNo
Cooling TypeSingle Evaporator

Certifications

ADA CompliantNo
ULYes
ULe Environmentally Preferred CertifiedPassed 60 point AHAM (Association of Home Appliance Manufacturers) Sustainability Standards
CEE Tier RatingTier I
Energy Star® QualifiedENERGY STAR® Qualified

Electrical

Amps15
Hz60
Volts120

Dimension

Capacity (Cu Ft)18.67
Depth Closed Excluding Handles30 7/8
Depth Excluding Doors28 1/8
Depth With Door Open 90 Degree59
Height To Top Of Cabinet65 1/2

Dimensions & Weight

Width32.5 in.
Height69.5 in.
Length36 in.
Weight240 lbs.
Cabinet Width (in)29 5/8
Carton Depth36
Carton Height69 1/2
Carton Width32 1/2
Depth Closed Excluding Handles30 7/8
Depth Closed Including Handles33 3/8
Depth Excluding Doors28 1/8
Depth With Door Open 90 Degree59
Gross Weight240 lbs.
Height To Top Of Cabinet65 1/2
Height To Top Of Door Hinge67
Net Weight0.0
Cabinet Width (IN,inches)29.6250
Cutout Height(IN,inches)67.0000
Cutout Width(IN,inches)30.0000
Depth Closed Excluding Handles(IN,inches)30.8750
Depth Closed Including Handles(IN,inches)33.3750
Depth Excluding Doors(IN,inches)28.1250
Depth With Door Open 90 Degree(IN,inches)59.0000
Height To Top Of Cabinet(IN,inches)65.5000
Height To Top Of Door Hinge(IN,inches)67.0000
Carton Depth(IN,inches)36.0000
Carton Height(IN,inches)69.5000
Carton Width(IN,inches)32.5000
Gross Weight(LB,pounds)240

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.75 in.
Shipping Height72 in.
Shipping Length38.38 in.
Shipping Weight280 lbs.
Total of Shipping Weight280 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement38.5 ft³
Dimensional Weight478.6 lbs.
Total of Cubes38.5 ft³
Total of Dimensional Weight478.6 lbs.

Details

Installation ConfigurationFreestanding
Refrigeration ConfigurationRefrigerator
Refrigerator TypeBottom Freezer
Door Style ConfigurationBottom Freezer

Exterior Details

Cabinet FinishTextured
Counter DepthNo
Door StyleFlat
Hidden HingeNo
Reversible DoorNo
Base Grille ColorGrey
Cabinet ColorGrey
Door ColorStainless Steel
Door FinishSmooth
Door Opening DirectionLeft
Handle ColorStainless Steel
Handle MaterialMetal
Handle TypeReach Through Handle

Filter Details

Air Filter Indicator/ResetNo
Fresh Flow Air Filter IncludedNo
Water Filter Indicator/ResetNo
Water Filter LocationN/A

Freezer Details

Freezer Door BinsNo
Freezer Door TypePull-Out
Freezer LightingLED
Freezer Number of Shelves0
Freezer ShelvesNone

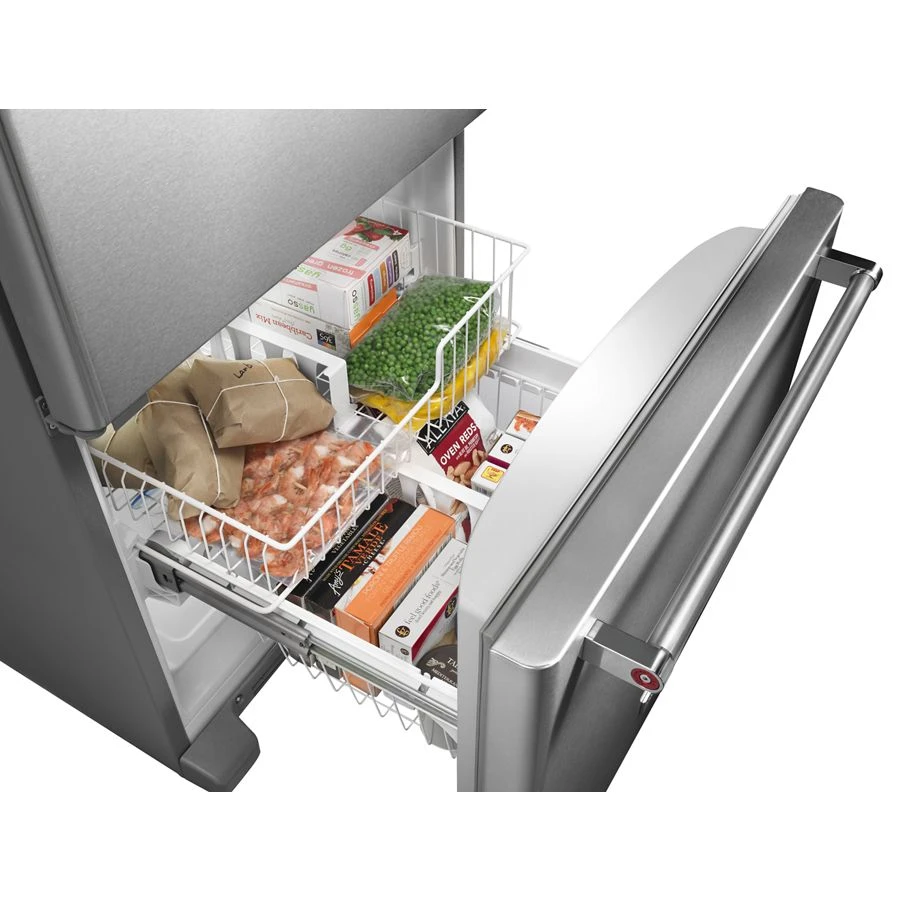

Freezer Drawer/Basket1 Full Width Lower Wire, 1 Full Width Upper Wire

Icemaker Details

IcemakerOptional
Icemaker LocationFreezer
Types of IceNo
Icemaker Kit Part NumberW11762633

Refrigerator Details

Conventional ShelvesNo
Deli DrawerNo
Humidity-Controlled Crispers2 Half-Width
Non Climate Control DrawersNone

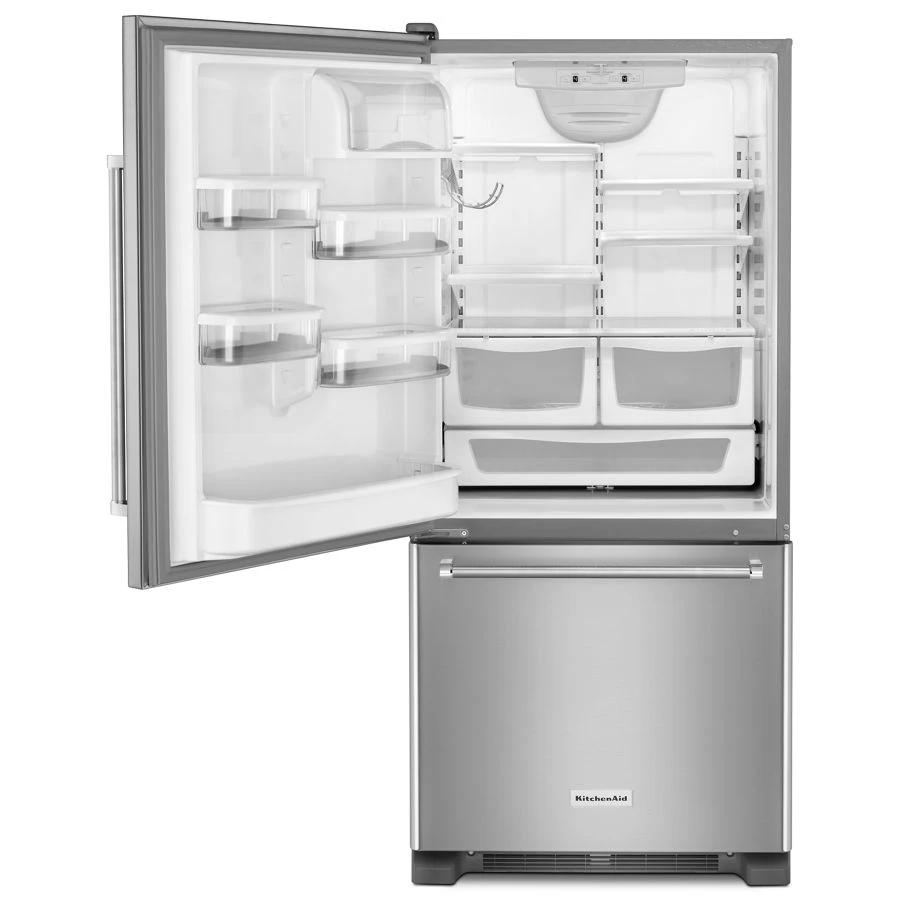

Number of Interior Shelves5
Pantry DrawerYes
Refrigerator LightingLED
Supplementary ContainersYes
Temperature-Controlled Drawers1 Full Width
Refrigerator Door Bins1 Dairy, 1 Fixed Full-Width, 4 Adjustable Half-Width
Spill-Proof Glass Shelves1 Fixed Full Width, 4 Adjustable Half Width

Dispenser Details

Dispenser OptionsN/A
Dispenser TypeNo Dispenser

Features

Refrigerator FeaturesExtendFresh Temperature Management System, LED Lighting, Produce Preserver

Capacity

Volume47.057 Cu.Ft.
