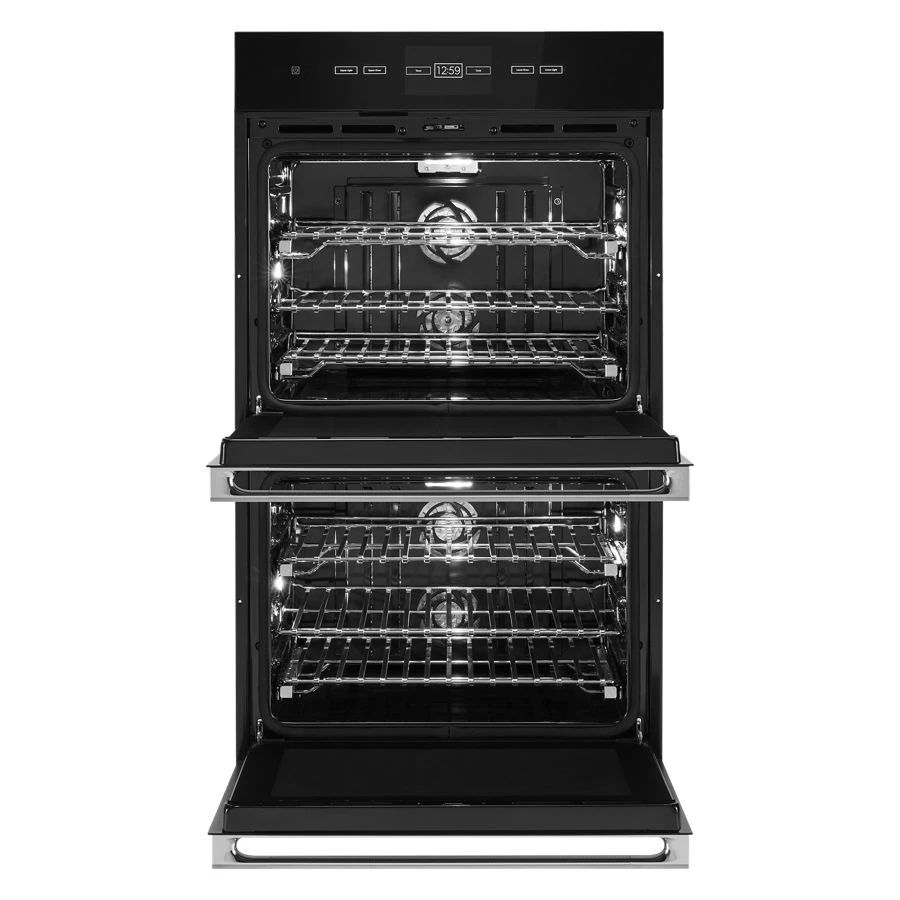

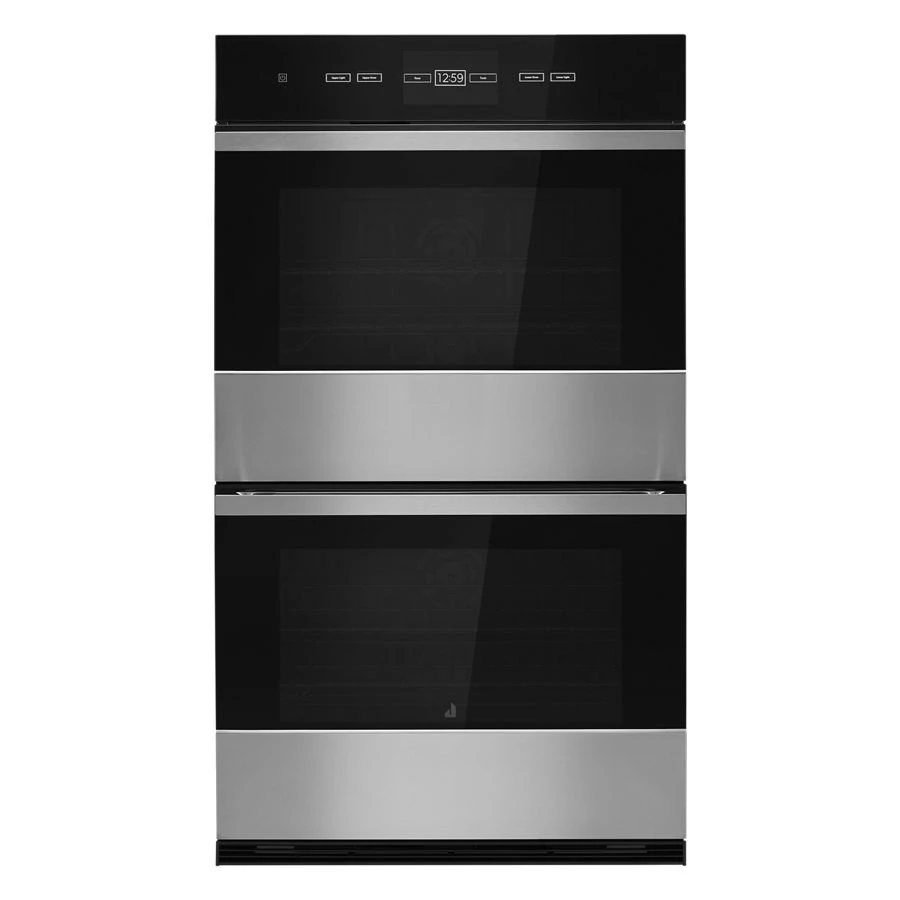

Noir™ 30" Double Wall Oven With V2™ Vertical Dual-fan Convection - JJW3830LM
Noir™ 30" Double Wall Oven With V2™ Vertical Dual-fan Convection
Model: JJW3830LM















Noir™ 30" Double Wall Oven With V2™ Vertical Dual-fan Convection
Model: JJW3830LM
Current Rebates
Key Features
V2™ Vertical Dual-Fan Convection
Temperature Probe
Connected Temperature Probe
Glide Rack
No Preheat Baking
Cinematic Lighting
Remote Access
Versatile Cooking Modes
Documents
Available from Sorenson's Appliance & TV, serving customers throughout Minnesota.
Features
V2™ Vertical Dual-Fan Convection
Dual counter-rotating vertical fans work in tandem, helping you wield your cooking prowess with everything from mouthwatering fillets to irresistible roasts.
Temperature Probe
Know when dinner is done without ever opening the door. 4 points of contact deliver temperature readings visible on the LCD screen.
Connected Temperature Probe
Know when dinner is done without ever opening the door. Readings of food’s internal temperature, visible on the LCD screen or directly from the app.

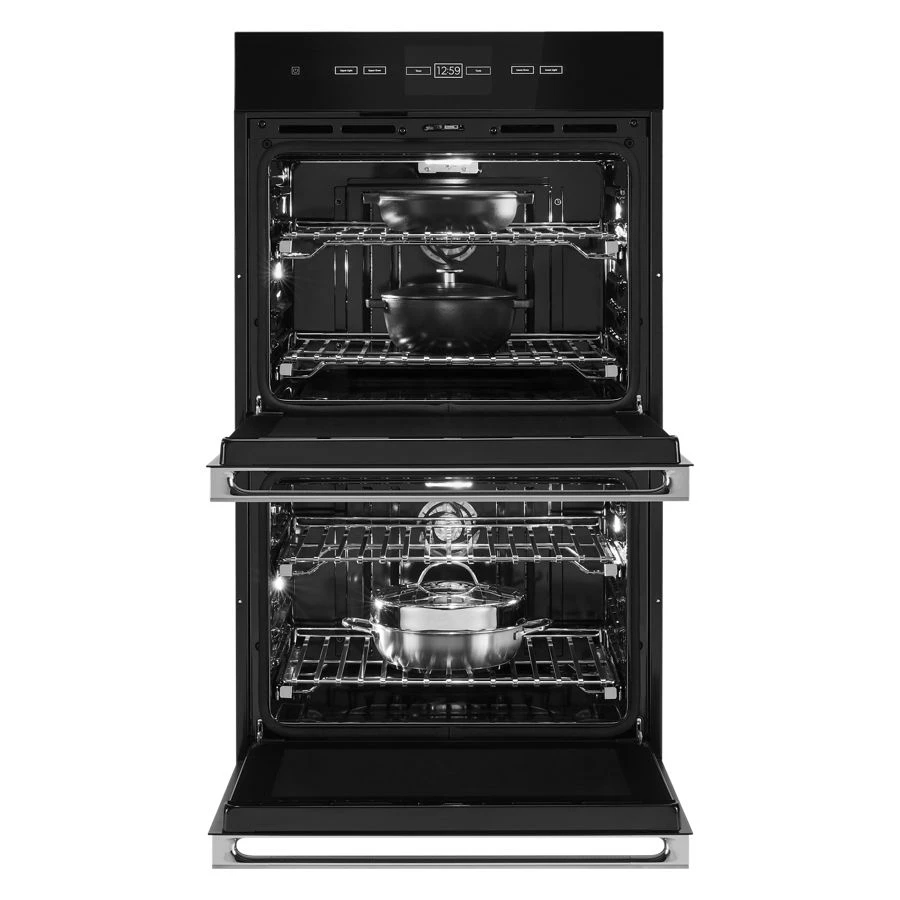

Glide Rack
Smooth moves. Glides in and out fluidly and quietly, even when fully loaded.
No Preheat Baking
Bake on a single rack without the wait.
Cinematic Lighting
Lights, camera, cook. Halogen lighting increases to full intensity, minimizing shadows and dramatically showcasing food.
Remote Access
Preheat. Check cooking status. Personalize settings. Connect to WiFi for real-time notifications and control your appliance from anywhere. Tap and swipe on both iOS and Android devices.
Versatile Cooking Modes
Uncompromising results, untroubled process. Automatically convection cook by food type, or manually select convection modes by cooking method. Take the guesswork out of convection cooking with automatic temperature and time conversions. Get even more versatile: No Preheat mode lets you bake on a single rack without the wait. Doughrises quickly and evenly with Proofing mode, and the Keep Warm™ setting lets you serve your entire menu at the same time.
5.0 Cu. Ft. Capacity
Big on entertaining. Generous capacity to cook multiple dishes at once.
Convection Tower
A touch of style in an unexpected place. Dual vertical fans work in tandem, helping you wield your cooking prowess with everything from mouthwatering fillets to irresistible roasts.
Sleek, Continuous Design
Gaps in and around the oven exterior are closed or tightened to create a clean, continuous flow with cabinetry for a seamless installation.
No Flush Kit Required for Flush Install
These wall ovens can be installed flush, creating a seamless visual line with cabinetry, without a separate accessory flush install kit.

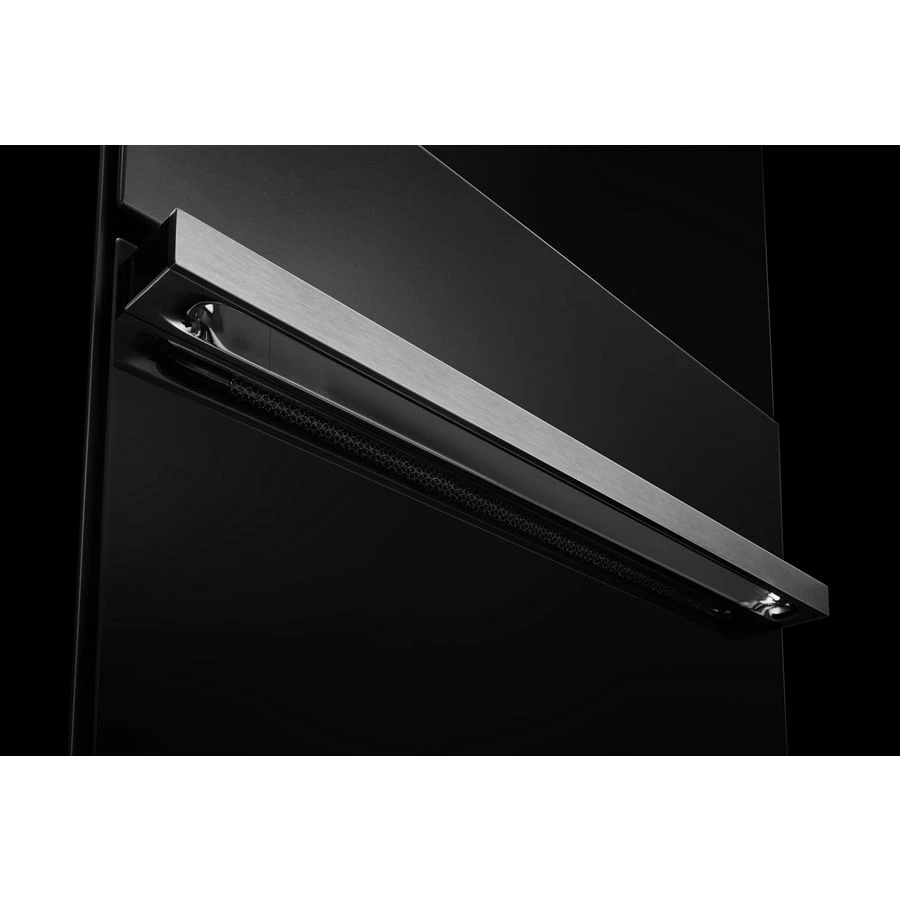

Chef's Light
Food shown in its best light. This third halogen lamp shines above the door, front and center, further reducing shadows for clear illumination.
Up to 3,400-Watt Convection Element
This convection element wraps dishes in heat and maintains a controlled cooking environment.
Up to 2,800-Watt Hidden Bake Element
This 2,800-watt bake element is concealed beneath the oven floor, providing intense heat and a smooth surface that is easy to clean.
Up to 4,000-Watt Broil Element
Tap into high-wattage heat designed to broil meats to tantalizing caramelization.
Up to 6,800-Watt Combined Convection Cooking Power
Two convection elements combine to create powerful, intense heat for dishes that make an impact.
8-Pass Reflective Broil Element
Maximum coverage. Even heat distribution. Beneath a stainless steel broil plate, this element radiates heat back onto cookware and food.

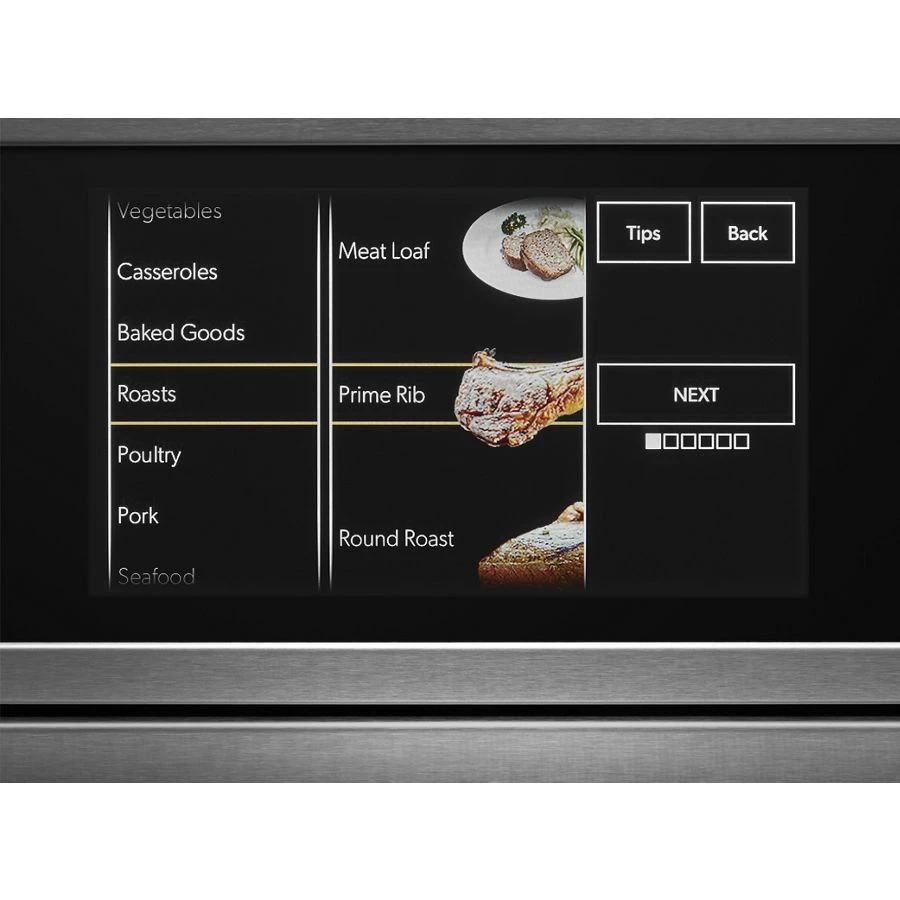

Auto Convection Modes
Savor taste that leaves you wanting more. Choose your food type, and temperature and airflow automatically adjust for baking, broiling or roasting.
Keep Warm™ Option
Reward anticipation. Low heat keeps tempting dishes ready and waiting for the right moment.
Smooth Close Door
Quiet, soft, secure. Your oven gently pulls the door closed.
Manual Convection Modes
Select from presets like Convect Bake, Convect Roast and Convect Broil to let the cooking method guide you.
Proofing Option
Tame the temperamental. Low, consistent heat protects dough from temperature swings for an even, rapid rise.
Sabbath Mode
Select this function to bypass the oven’s automatic shutoff when observing the Sabbath and other religious holidays.
On-Demand Experts
Connect with the JennAir Epicenter through chat, email, or call to tap into the brilliant minds of experts who know JennAir® appliances inside and out. Receive diagnostic codes on the app and they'll deploy service targeted to your wall oven's best interest.
Auto Convection Conversion
Bake with abandon. The oven automatically converts temperature and cook time to make any recipe a convection recipe.
Control Lock
Control Lock prevents unintended use of the oven and ensures complete, simple cleaning of the controls.
Serviced by a Select Few
We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.

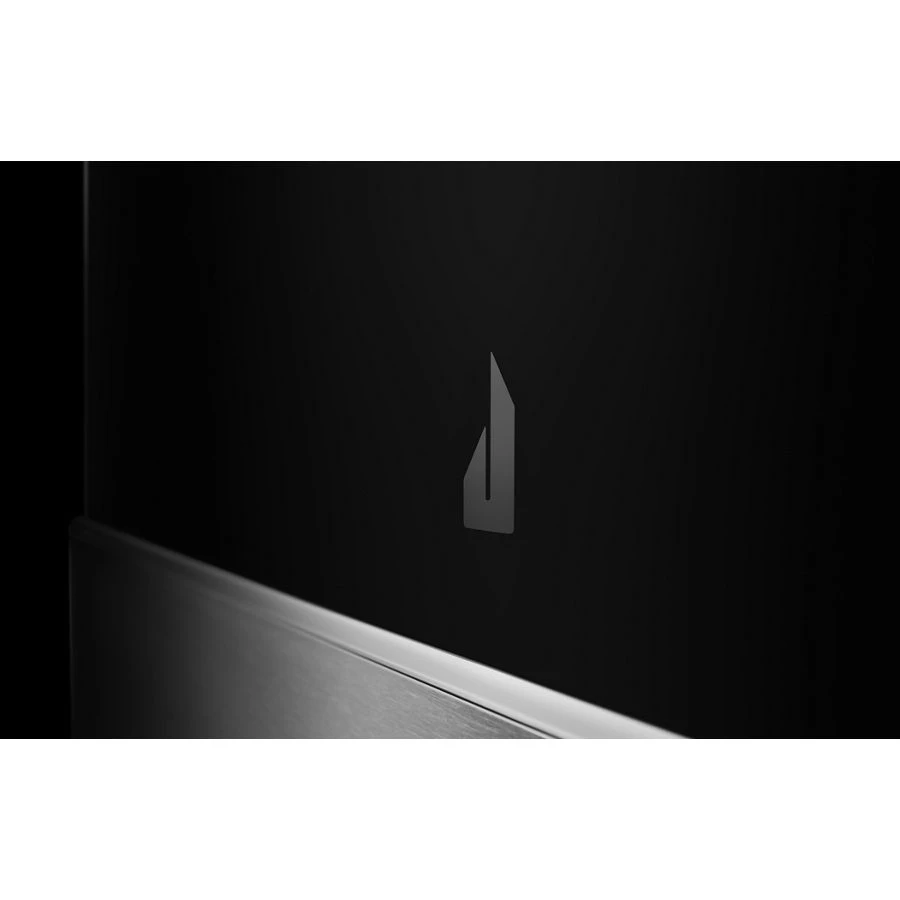

NOIR™ Design Expression
Sculpted in stainless steel, the NOIR™ Design Expression features hidden lace textures, discoverable only by touch.
Specifications
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Other
| Capacity(FT3,cubic feet) | 10.00 |
| Lower Oven Capacity (Cu Ft.) | 5.0 |
| Lower Oven Capacity | 5 |
| Upper Oven Capacity | 5 |
| Capacity(FT3,cubic feet) | 10.00 |
| Lower Oven Capacity (Cu Ft.) | 5.0 |
| Upper Oven Capacity (Cu Ft.) | 5.0 |
| Lower Oven Capacity | 5 |
| Upper Oven Capacity | 5 |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 28.19 ft³ |
| Dimensional Weight | 350.42 lbs. |
| Total of Cubes | 28.19 ft³ |
| Total of Dimensional Weight | 350.42 lbs. |

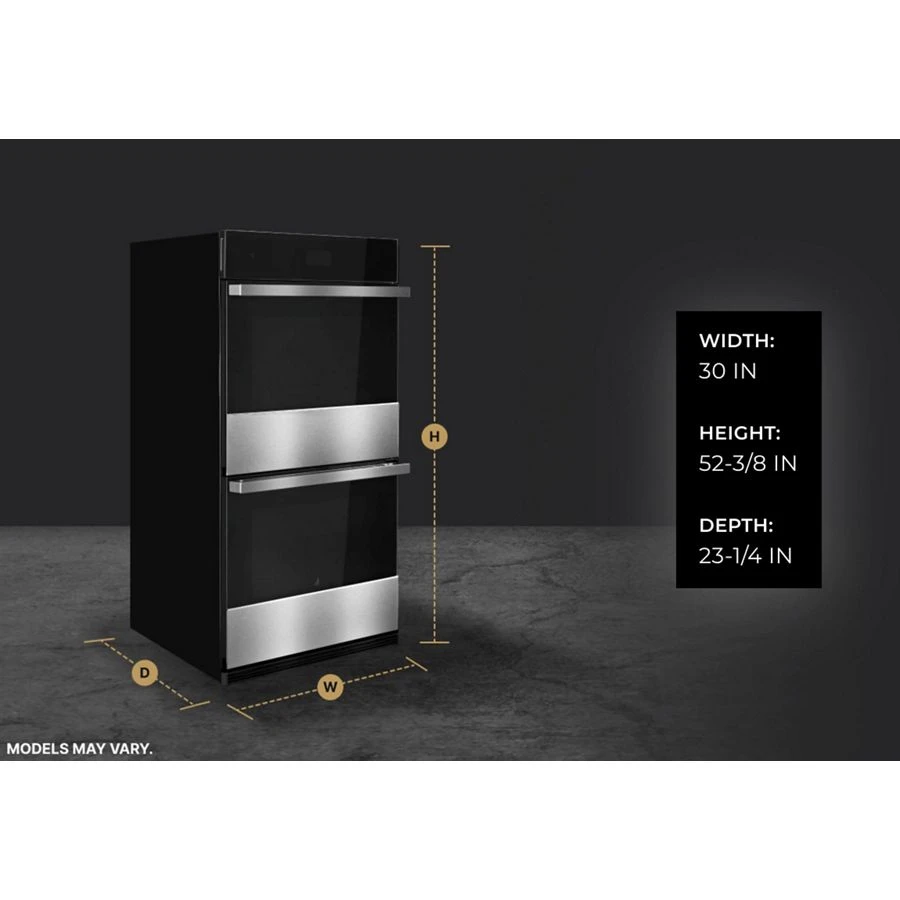

Dimensions & Weight
| Width | 30 in. |
| Height | 52.38 in. |
| Length | 31 in. |
| Weight | 360 lbs. |
| Carton Depth | 31 |
| Carton Height | 54 |
| Carton Width | 35 |
| Gross Weight | 360 |
| Net Weight | 334.0 |
| Gross Weight | 360 |
| Cutout Depth(IN,inches) | 24.0000 |
| Cutout Height(IN,inches) | 52.1875 |
| Cutout Width(IN,inches) | 28.5000 |
| Depth Closed Excluding Handles(IN,inches) | 24.3125 |
| Depth Closed Including Handles(IN,inches) | 26.3750 |
| Depth Excluding Doors(IN,inches) | 23.0000 |
| Depth With Door Open 90 Degree(IN,inches) | 45.4375 |
| Depth(IN,inches) | 23.2500 |
| Carton Depth(IN,inches) | 31.0000 |
| Carton Height(IN,inches) | 54.0000 |
| Carton Width(IN,inches) | 35.0000 |
| Cutout Depth | 24 |
| Cutout Height | 52.188 |
| Cutout Width | 28.5 |
| Depth Closed Excluding Handles | 24.313 |
| Depth Excluding Doors | 23 |
| Depth With Door Open 90 Degree | 45.438 |
| Lower Oven Interior Depth | 19 |
| Lower Oven Interior Height | 18 |
| Lower Oven Interior Width | 25 |
| Upper Oven Interior Depth | 19 |
| Upper Oven Interior Height | 18 |
| Upper Oven Interior Width | 25 |
| carton depth | 31 |
| carton height | 54 |
| carton width | 35 |
| gross weight | 360 |
| net weight | 334 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 54 in. |
| Shipping Length | 36 in. |
| Shipping Weight | 400 lbs. |
| Total of Shipping Weight | 400 lbs. |
| Source | Calculation |
Exterior Details
| Door Lock | Yes |
| Handle Color | Stainless Steel |
| Handle Material | Stainless Steel |
| Door Type | Metal & Glass |
Details
| Convection Element Type | Dual Fan |
| Delay Clean | Yes |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| LP Convertible | No |
| Oven Automatic Shut-Off | Yes |
| Oven Configuration | Double Oven |
| Oven Type | Double |
| Power On Indicator Light | Yes |
| Design Expression | Noir™ |
| Oven Selections | Audible Signal, Automatic Door Latch, Bake, Broil, Cancel/off, Clock, Control Lock, Cook Time Indicator, Cook And Hold, Culinary Center, Delay Start, Favorites, Keep Warm Setting, Language Co |
Oven Cavity Details
| Convection Element Type | Dual Fan |
| Convection Functions | Bake Broil Roast Both |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | No |
| Interior Coating | Porcelain |
| Interior Color | Black |
| Light Type | Halogen |
| Lower Oven Number of Oven Lights | 3 |
| Number of Bake Elements | 1 |
| Number of Broil Elements | 1 |
| Number of Lower Oven Racks | 3 |
| Number of Lower Rack Guides | 6 |
| Number of Upper Oven Racks | 3 |
| Number of Upper Rack Guides | 6 |
| Oven Cooking System | V2™ True Convection |
| Self-Cleaning Oven Racks | No |
| Upper Oven Number of Oven Lights | 3 |
| Bake Element Power | 2,800 W Both |
| Broiler Element Power | 4,000 W Both |
| Broiler Location | Top Of Oven |
| Convection Element Power | 6,800 W |
| Lower Oven Capacity | 5 Cu. Ft. |
| Oven Cleaning Type | Self-cleaning |
| Upper Oven Capacity | 5 Cu. Ft. |
Certifications
| CUL | Yes |
| UL | Yes |
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
| ADA Compliant | Ada Height And Side And Front Reach Compliant, Ada Height And Side And Front Reach Compliant |
| Star K Certified | Yes, Yes |

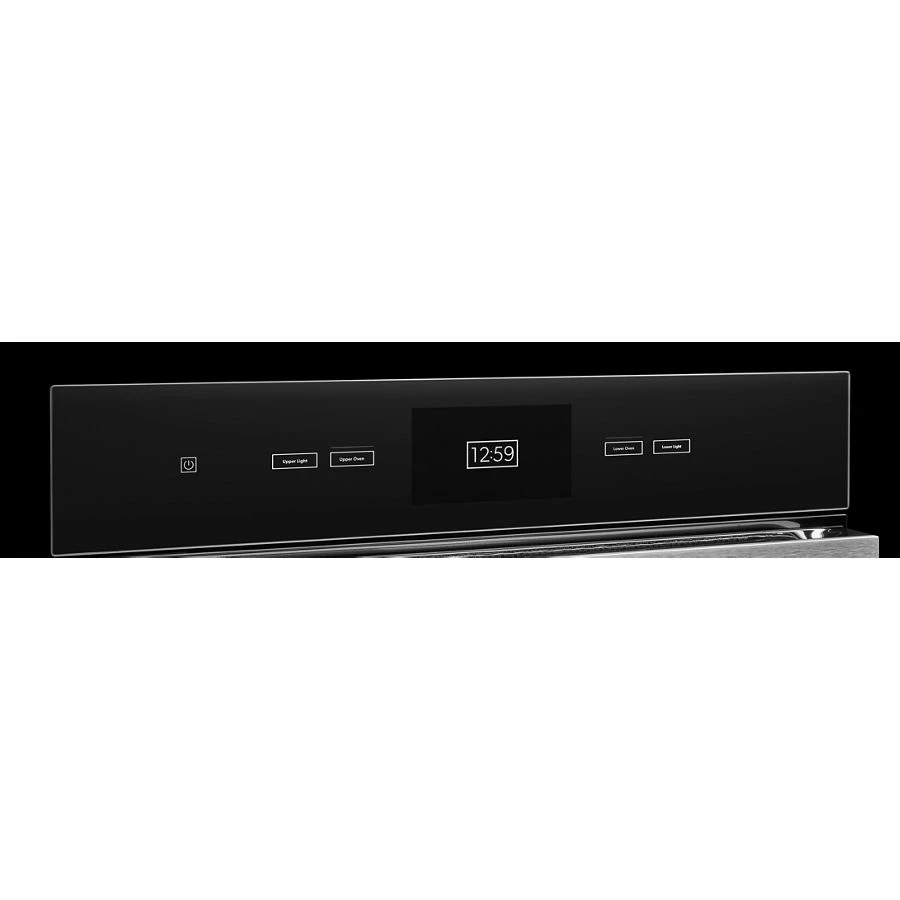

Controls
| Control Type | Tap Touch |
| Display Color | Full Color |
| Light Control | Oven Light Touch Pad |
| Electronic Display Type | 7-inch Full Color Lcd |
| Language Conversion | English/french |
Smart Compatibility
| Smart Appliance | Yes |
| Connectivity | Amazon Alexa, Android, Google Assistant, Ios |
| Works With | App, Remote Access, Voice Controlled, Wifi |
Electrical
| Amps | 40 |
| Hz | 60 |
| Power Cord Included | No |
| Volts | 240 |
| Watts | 9 |
Dimensions
| Capacity | 10 Cu. Ft. |
| Common Size | 30 In |
| Cutout Depth | 24 In |
| Depth Excluding Doors | 23 In |
| Gross Weight | 360 Lbs |
| Lower Oven Interior Depth | 19 In |
| Lower Oven Interior Height | 18 In |
| Lower Oven Interior Width | 25 In |
| Net Weight | 334 Lbs |
| Upper Oven Interior Depth | 19 In |
| Upper Oven Interior Height | 18 In |
| Upper Oven Interior Width | 25 In |
| Width | 30 In |
| Cutout Height | 52.188 In |
| Cutout Width | 28.5 In |
| Depth | 23.25 In |
| Depth Closed Excluding Handles | 24.313 In |
| Depth With Door Open 90 Degree | 45.438 In |
| Height | 52.375 In |
