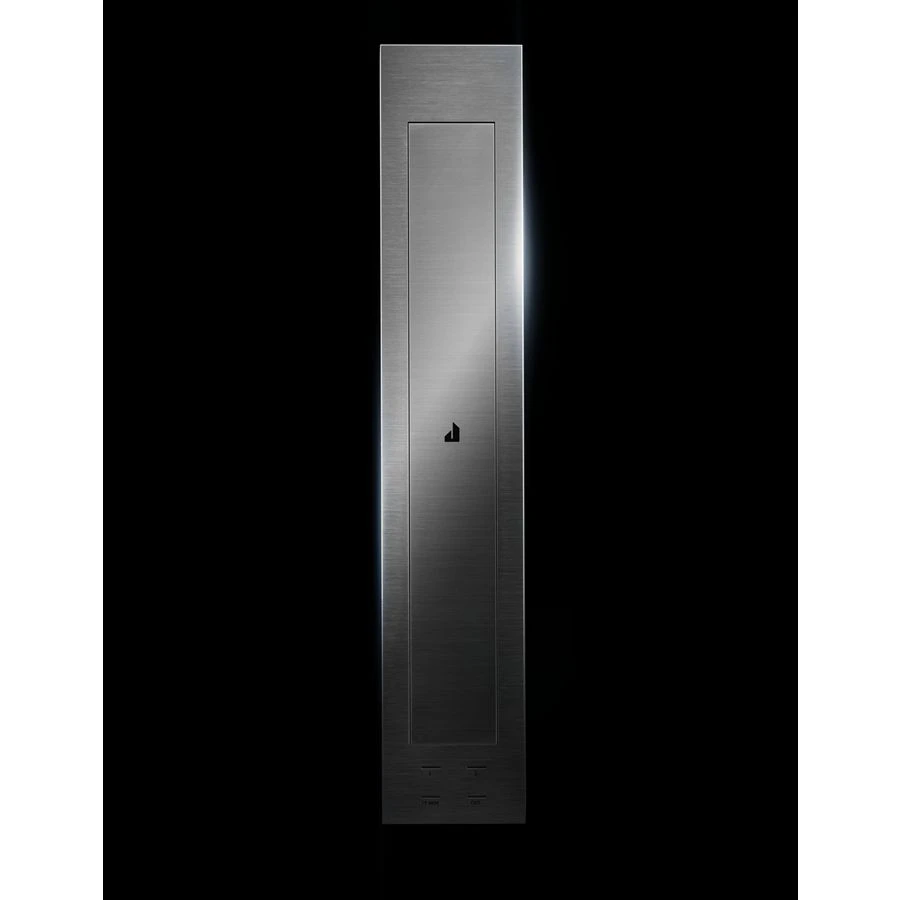

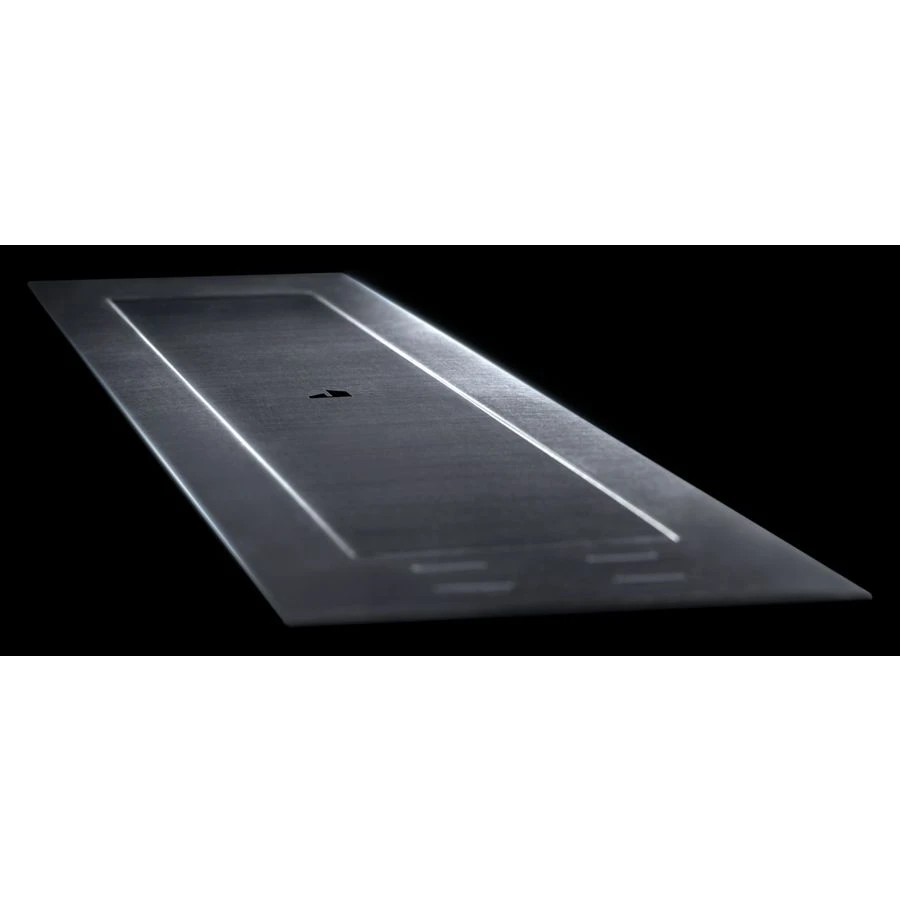

4” Modular Downdraft Ventilation - JVD0303GS
4” Modular Downdraft Ventilation
Model: JVD0303GS
4” Modular Downdraft Ventilation
Model: JVD0303GS
Rebate AvailableColor : Stainless Steel
Current Rebates
Key Features
310 CFM Blower Capacity
Stainless Design
On-Demand Experts
Flexible Fuel Types
Available from Sorenson's Appliance & TV, serving customers throughout Minnesota.
Features
310 CFM Blower Capacity

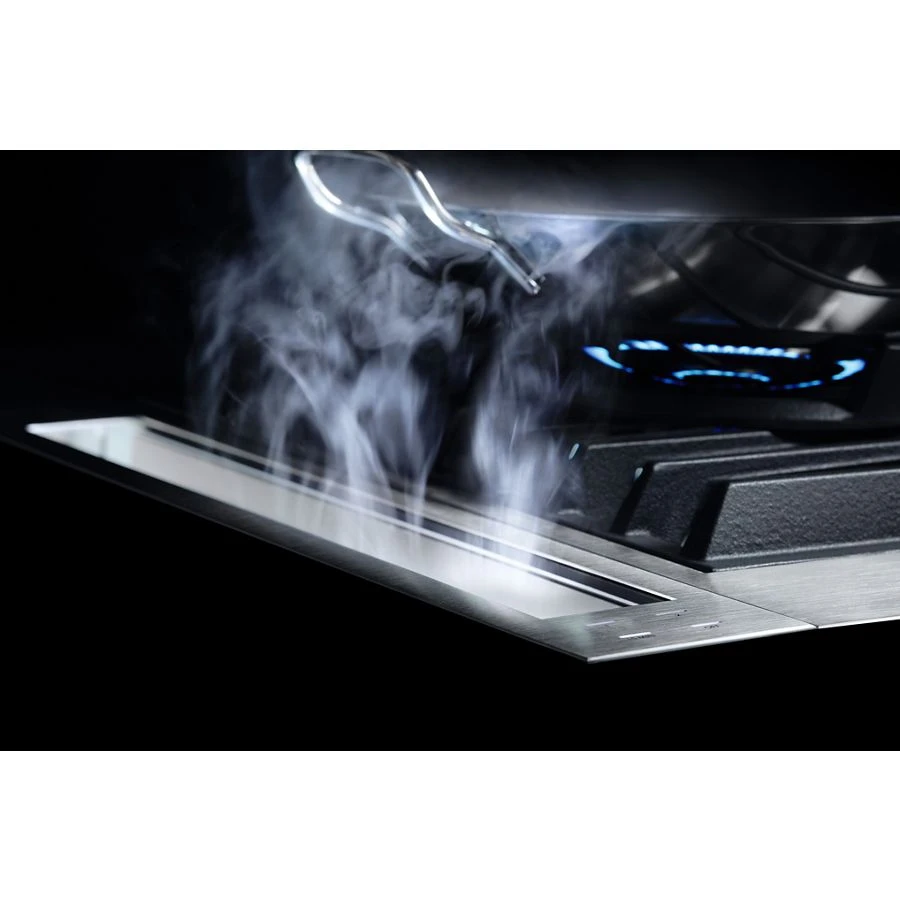

When using the downdraft blower in a ducted configuration, the blower has an exhaust capacity rating of 310 CFM, using the efficient design of downdraft ventilation to its advantage to rapidly ventilate cooking vapors.
Stainless Design
A suite of kitchen appliances featuring a refined design that indulges both contemporary and traditional tastes.
On-Demand Experts
Connect with the JennAir Epicenter through chat, email, or call to tap into the brilliant minds of experts who know JennAir appliances inside and out. Receive diagnostic codes on the app and they'll deploy service targeted to your appliance's best interest.
Flexible Fuel Types
Forge your vision of a completely personalized culinary surface. JennAir customized cooktops are not restricted by fuel type. So hundreds of combinations of gas, electric or induction cooktops, plus downdraft or updraft ventilation, can co-exist harmoniously.
Specifications
Description
| Cooktop Type | Downdraft |
Controls
| Control Location | Front |
| Control Type | Electronic Touch |
Ventilation System
| Auto Function | No |
| Blower Motor | N/A |
| Blower Type | Centrifugal |
| Duct Direction | Vertical |
| Duct Outlet Size (in.) | 6 |
| Duct Type | Round |
| Exhaust Vent Location | Rear |
| Filters | Grease Filters |
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 310 |
| Ventilation Type | Downdraft |
| Venting | Exterior or Recirculating |
Certifications
| Prop 65 | Standard |
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
Design Type
| Design Expression | Stainless Steel |
Electrical
| Amps | 3.1 |
| Hz | 60 |
| Volts | 120 |
| Watts | 375 |
| Amps | 3-1/10 |
Specifications
| Accessory Relationships | Yes |
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.14 ft³ |
| Dimensional Weight | 1.47 lbs. |
| Total of Cubes | 0.14 ft³ |
| Total of Dimensional Weight | 1.47 lbs. |
Dimensions & Weight
| Width | 3.88 in. |
| Height | 3 in. |
| Length | 21 in. |
| Weight | 52 lbs. |
| Carton Depth | 38 3/4 |
| Carton Height | 22 3/4 |
| Carton Width | 13 1/2 |
| Gross Weight | 52 |
| Net Weight | 39.4 |
| Depth(IN,inches) | 21.0000 |
| Net Weight(LB,pounds) | 39 |
| Carton Depth(IN,inches) | 38.7500 |
| Carton Height(IN,inches) | 22.7500 |
| Carton Width(IN,inches) | 13.5000 |
| Gross Weight(LB,pounds) | 52 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 13.5 in. |
| Shipping Height | 22.75 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 92 lbs. |
| Total of Shipping Weight | 92 lbs. |
| Source | Calculation |
Ventilation Details
| Exhaust Vent Location | Rear |
Dimensions
| Depth | 21 In |
| Gross Weight | 52 Lbs |
| Height | 0-3/4 In |
| Net Weight | 39-2/5 Lbs |
| Width | 3-7/8 In |
