17.6 cu. ft. Top-Freezer Refrigerator with Spillsaver Shelves - A8TXNGFXW

This product has been discontinued by the manufacture and is no longer available.

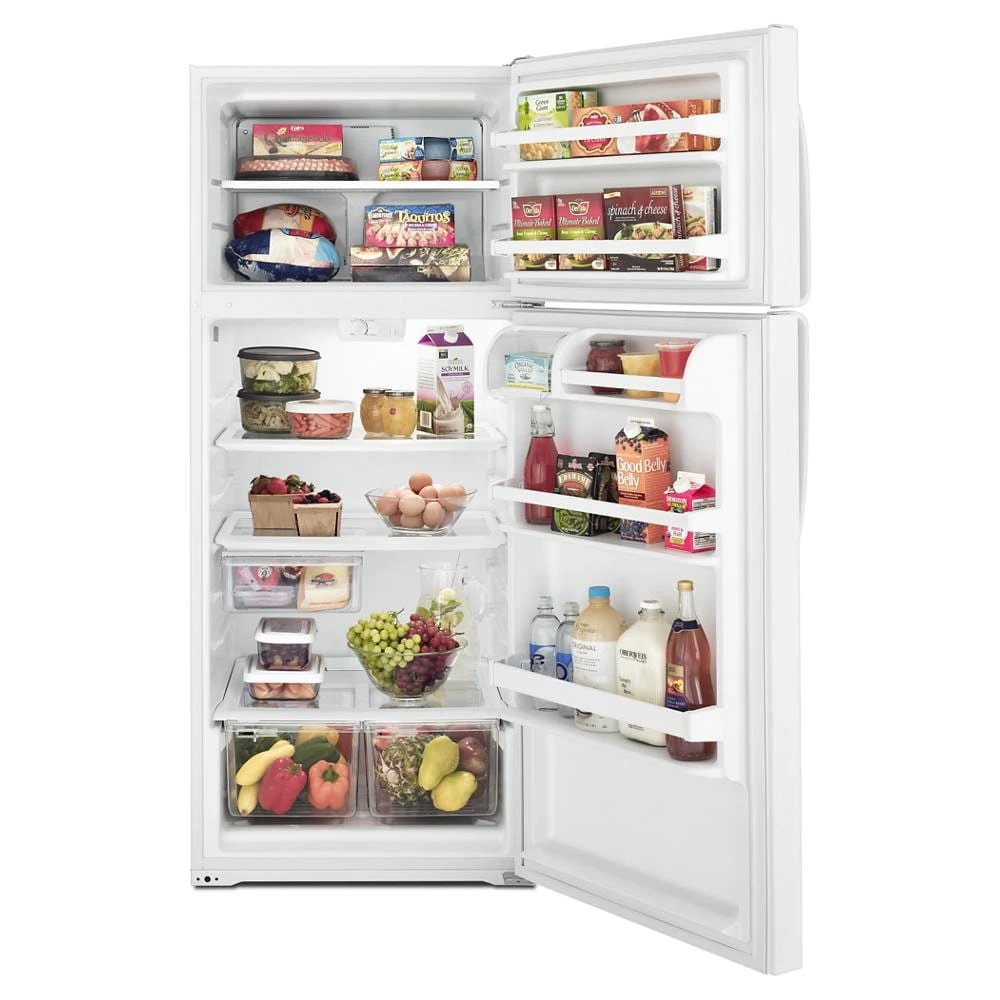

17.6 cu. ft. Top-Freezer Refrigerator with Spillsaver Shelves

Model: A8TXNGFXW

17.6 cu. ft. Top-Freezer Refrigerator with Spillsaver Shelves A8TXNGFXW17.6 cu. ft. Top-Freezer Refrigerator with Spillsaver Shelves A8TXNGFXW
17.6 cu. ft. Top-Freezer Refrigerator with Spillsaver Shelves A8TXNGFXW
17.6 cu. ft. Top-Freezer Refrigerator with Spillsaver Shelves A8TXNGFXW

Color : White

17.6 cu. ft. Top-Freezer Refrigerator with Spillsaver Shelves A8TXNGFXW
White

Key Features

  • Save Energy

  • 17.5 cu. ft. Capacity

  • Spillsaver Glass Shelves

  • Optional Automatic Icemaker Kit

  • Up-Front Temperature Control System

  • Gallon Door Storage

  • Garden Fresh Crispers

  • Deli Drawer

Read More

Available from Sorenson's Appliance & TV, serving customers throughout Minnesota.

Features
Specifications

Features

Save Energy

Refrigerate your food for less. This Amana top-freezer refrigerator cools your food more efficiently, so you save money and energy. Compared to average annual energy use of a pre-2000 refrigerator, average use, 12 year life.

17.5 cu. ft. Capacity

Use only what you need. The 17.5 cu. ft. capacity of this Amana top mount refrigerator provides the food storage that's right for you, while ensuring energy isn't wasted.

Spillsaver Glass Shelves

Save yourself the trouble. These shelves help keep the mess contained and can be adjusted to meet your storage needs.

Optional Automatic Icemaker Kit

Forget the ice trays and enjoy cold, refreshing beverages when you install this optional ice maker.

Up-Front Temperature Control System

Controls are located front and center so you can change temps without having to reach over bottles, jars…or the mystery that may be lurking at the back of the fridge.

Gallon Door Storage

Now there's a perfect place for those gallons of milk, 2-liter bottles of soda and containers of juice, or whatever quenches your thirst.

Garden Fresh Crispers

This humidity-controlled drawer helps keep fruits and veggies fresh for longer, and is perfect for hand-picked and organic vegetables.

Deli Drawer

Keep track of your deli meat and cheese by storing it in this clear drawer.

Dairy Center

Easily access items like butter, cream cheese and yogurt.

Specifications

AHAM Volumes And Shelf Area

Freezer Volume (Cu Ft)4.07
Refrigerator Volume (Cu Ft)13.52

Description

Refrigerator TypeTop Freezer

Exterior

Cabinet ColorWhite
Cabinet FinishTextured
Door ColorWhite
Door FinishTextured
Door OpeningRight
Door StyleFlat
Handle ColorWhite
Handle MaterialPlastic
Hidden HingeNo
Reversible DoorYes

Controls

Automatic DefrostYes
Control LocationInterior
Control TypeDials

Specifications

Width Doors Open 90 Degrees57.000
Humidity-Controlled Crispers2 Half-Width
Accessory RelationshipsYes

Refrigerator Compartment

Number of Interior Shelves3
Conventional ShelvesNo
Spill-Proof Glass Shelves1 Fixed Full Width, 2 Adjustable Full Width
Non Climate Control DrawersNone
Temperature-Controlled DrawersNo
Door Bins1 Dairy, 1 Fixed Partial-Width, 2 Fixed Full-Width
Refrigerator LightingIncandescent

Freezer Compartment

Freezer Number of Shelves1
Freezer Shelves1 Adjustable Half Width Wire
Freezer Drawer/BasketNone
Freezer Door Bins2 Fixed Full-Width
Freezer LightingNone

Dispenser

Types of IceNo

Icemaker

IcemakerOptional
Icemaker LocationFreezer

Certifications

CEC ListedYes
CEE TierNot Rated
Energy Rating (kWh/year)470
Prop 65Standard
ULYes

Filters

Fresh Flow Air Filter IncludedNo
Water Filter LocationN/A

Electrical

Amps15
Hz60
Volts120

Configuration

Door Style ConfigurationTop Mount
Installation ConfigurationFreestanding
Refrigeration ConfigurationRefrigerator

Other

Capacity(FT3,cubic feet)17.60

Dimensions & Weight

Width28 in.
Height67.88 in.
Length30.88 in.
Weight-
Cabinet Width (IN,inches)28.0000
Cutout Depth(IN,inches)31.8750
Cutout Height(IN,inches)70.3750
Cutout Width(IN,inches)30.5000
Depth Closed Excluding Handles(IN,inches)30.8750
Depth Closed Including Handles(IN,inches)32.8750
Depth Excluding Doors(IN,inches)27.7500
Depth With Door Open 90 Degree(IN,inches)57.0000
Height To Top Of Cabinet(IN,inches)67.3750
Height To Top Of Door Hinge(IN,inches)67.8750
Carton Depth(IN,inches)34.0000
Carton Height(IN,inches)69.0000
Carton Width(IN,inches)29.5000
Cutout Height Min(IN,inches)70.3750
Gross Weight(LB,pounds)175
Cabinet Width (in)28
Carton Depth34
Carton Height69
Carton Width29 1/2
Cutout Depth (in)31 7/8
Cutout Height (in)70 3/8
Cutout Width (in)30 1/2
Depth Closed Excluding Handles30 7/8
Depth Closed Including Handles32 7/8
Depth Excluding Doors27 3/4
Depth With Door Open 90 Degree57
Gross Weight175
Height To Top Of Cabinet67 3/8
Height To Top Of Door Hinge67 7/8

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width33 in.
Shipping Height72.88 in.
Shipping Length35.88 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement33.96 ft³
Dimensional Weight422.17 lbs.
Total of Cubes33.96 ft³
Total of Dimensional Weight422.17 lbs.

Dimensions

Capacity(FT3,cubic feet)17.60
Depth Closed Excluding Handles(IN,inches)30.8750
Depth Excluding Doors(IN,inches)27.7500
Depth With Door Open 90 Degree(IN,inches)57.0000
Height To Top Of Cabinet(IN,inches)67.3750

Dimension

Capacity (Cu Ft)17.60
Depth Closed Excluding Handles30 7/8
Depth Excluding Doors27 3/4
Depth With Door Open 90 Degree57
Height To Top Of Cabinet67 3/8
