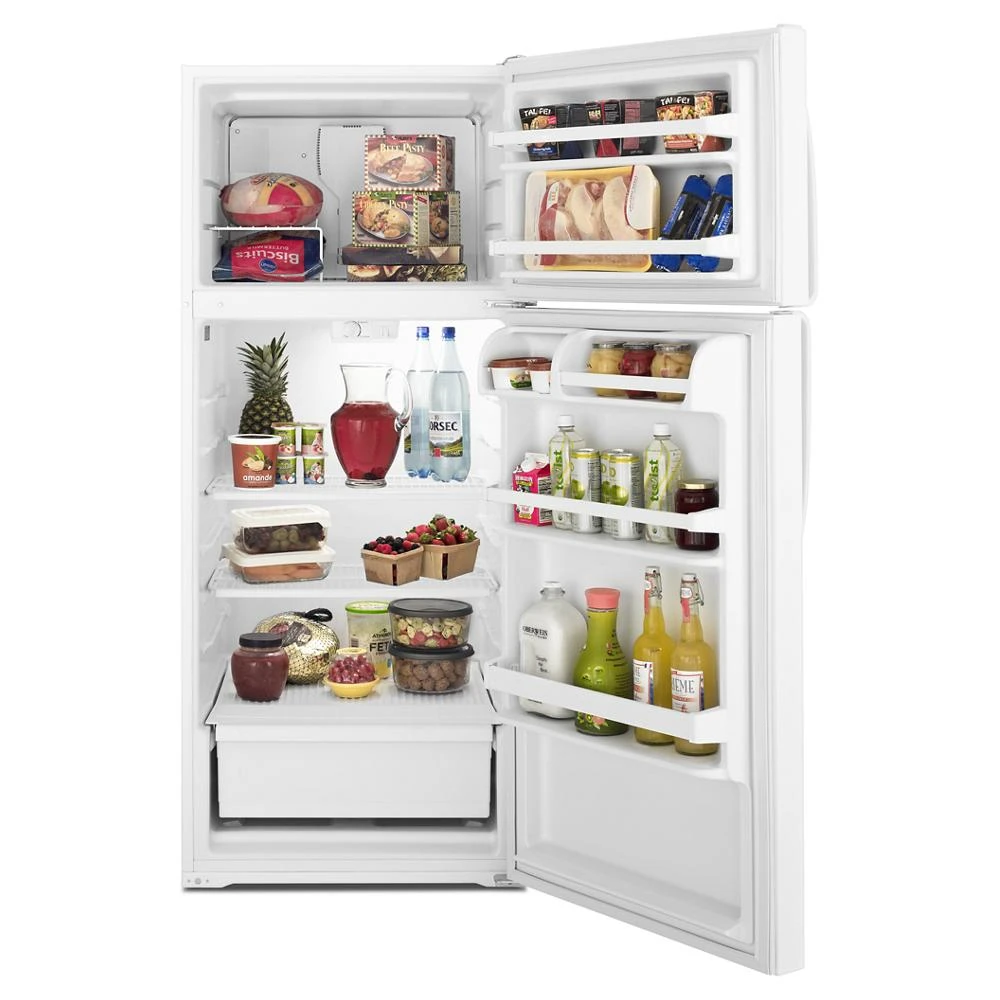

17.6 cu. ft. Top-Freezer Refrigerator with Wire Freezer Shelf - A8TXNWFXW
17.6 cu. ft. Top-Freezer Refrigerator with Wire Freezer Shelf
Model: A8TXNWFXW
17.6 cu. ft. Top-Freezer Refrigerator with Wire Freezer Shelf
Model: A8TXNWFXW
Color : White
Key Features
Save Energy
17.6 cu. ft. Capacity
Optional Automatic Icemaker Kit
Up-Front Temperature Control System
Gallon Door Storage
Dairy Center
Available from Sorenson's Appliance & TV, serving customers throughout Minnesota.
Features
Save Energy
Refrigerate your food for less. This Amana top-freezer refrigerator cools your food more efficiently, so you save money and energy. Compared to average annual energy use of a pre-2000 refrigerator, average use, 12 year life.
17.6 cu. ft. Capacity
Use only what you need. The 17.6 cu. ft. capacity of this Amana top mount refrigerator provides the food storage that's right for you, while ensuring energy isn't wasted.
Optional Automatic Icemaker Kit
Forget the ice trays and enjoy cold, refreshing beverages when you install this optional ice maker.
Up-Front Temperature Control System
Controls are located front and center so you can change temps without having to reach over bottles, jars…or the mystery that may be lurking at the back of the fridge.
Gallon Door Storage
Now there's a perfect place for those gallons of milk, 2-liter bottles of soda and containers of juice, or whatever quenches your thirst.
Dairy Center
Easily access items like butter, cream cheese and yogurt.
Specifications
AHAM Volumes And Shelf Area
| Freezer Volume (Cu Ft) | 4.07 |
| Refrigerator Volume (Cu Ft) | 13.52 |
Description
| Refrigerator Type | Top Freezer |
Exterior
| Cabinet Color | White |
| Cabinet Finish | Textured |
| Door Color | White |
| Door Finish | Textured |
| Door Opening | Right |
| Door Style | Flat |
| Handle Color | White |
| Handle Material | Plastic |
| Hidden Hinge | No |
| Reversible Door | Yes |
Controls
| Automatic Defrost | Yes |
| Control Location | Interior |
| Control Type | Dials |
Refrigerator Compartment
| Number of Interior Shelves | 3 |
| Conventional Shelves | 1 Fixed Full-Width Plastic, 2 Adjustable Full-Width Wire |
| Spill-Proof Glass Shelves | No |
| Non Climate Control Drawers | 1 Full Width |
| Temperature-Controlled Drawers | No |
| Door Bins | 1 Dairy, 1 Fixed Partial-Width, 2 Fixed Full-Width |
| Refrigerator Lighting | Incandescent |
Specifications
| Humidity-Controlled Crispers | None |
| Accessory Relationships | Yes |
Freezer Compartment
| Freezer Number of Shelves | 1 |
| Freezer Shelves | 1 Adjustable Half Width Wire |
| Freezer Drawer/Basket | None |
| Freezer Door Bins | 2 Fixed Full-Width |
| Freezer Lighting | None |
Dispenser
| Types of Ice | No |
Icemaker
| Icemaker | Optional |
| Icemaker Location | Freezer |
Certifications
| CEC Listed | Yes |
| CEE Tier | Not Rated |
| Energy Rating (kWh/year) | 470 |
| Prop 65 | Standard |
| UL | Yes |
Filters
| Fresh Flow Air Filter Included | No |
| Water Filter Location | N/A |
Electrical
| Amps | 15 |
| Hz | 60 |
| Volts | 120 |
Configuration
| Door Style Configuration | Top Mount |
| Installation Configuration | Freestanding |
| Refrigeration Configuration | Refrigerator |
Other
| Capacity(FT3,cubic feet) | 17.60 |
Dimensions & Weight
| Width | 28 in. |
| Height | 67.88 in. |
| Length | 32.88 in. |
| Weight | - |
| Cabinet Width (IN,inches) | 28.0000 |
| Cutout Depth(IN,inches) | 33.8750 |
| Cutout Height(IN,inches) | 70.8750 |
| Cutout Width(IN,inches) | 30.0000 |
| Depth Closed Excluding Handles(IN,inches) | 30.8750 |
| Depth Closed Including Handles(IN,inches) | 32.8750 |
| Depth Excluding Doors(IN,inches) | 27.7500 |
| Depth With Door Open 90 Degree(IN,inches) | 57.0000 |
| Height To Top Of Cabinet(IN,inches) | 67.3750 |
| Height To Top Of Door Hinge(IN,inches) | 67.8750 |
| Carton Depth(IN,inches) | 34.0000 |
| Carton Height(IN,inches) | 69.0000 |
| Carton Width(IN,inches) | 29.5000 |
| Cutout Height Min(IN,inches) | 70.8750 |
| Gross Weight(LB,pounds) | 175 |
| Cabinet Width (in) | 28 |
| Carton Depth | 34 |
| Carton Height | 69 |
| Carton Width | 29 1/2 |
| Cutout Depth (in) | 33 7/8 |
| Cutout Height (in) | 70 7/8 |
| Cutout Width (in) | 30 |
| Depth Closed Excluding Handles | 30 7/8 |
| Depth Closed Including Handles | 32 7/8 |
| Depth Excluding Doors | 27 3/4 |
| Depth With Door Open 90 Degree | 57 |
| Gross Weight | 175 |
| Height To Top Of Cabinet | 67 3/8 |
| Height To Top Of Door Hinge | 67 7/8 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 33 in. |
| Shipping Height | 72.88 in. |
| Shipping Length | 37.88 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 36.16 ft³ |
| Dimensional Weight | 449.52 lbs. |
| Total of Cubes | 36.16 ft³ |
| Total of Dimensional Weight | 449.52 lbs. |
Dimensions
| Capacity(FT3,cubic feet) | 17.60 |
| Depth Closed Excluding Handles(IN,inches) | 30.8750 |
| Depth Excluding Doors(IN,inches) | 27.7500 |
| Depth With Door Open 90 Degree(IN,inches) | 57.0000 |
| Height To Top Of Cabinet(IN,inches) | 67.3750 |
Dimension
| Capacity (Cu Ft) | 17.60 |
| Depth Closed Excluding Handles | 30 7/8 |
| Depth Excluding Doors | 27 3/4 |
| Depth With Door Open 90 Degree | 57 |
| Height To Top Of Cabinet | 67 3/8 |
